G8622 Tilting Spindle Sliding Table Shaper -9-

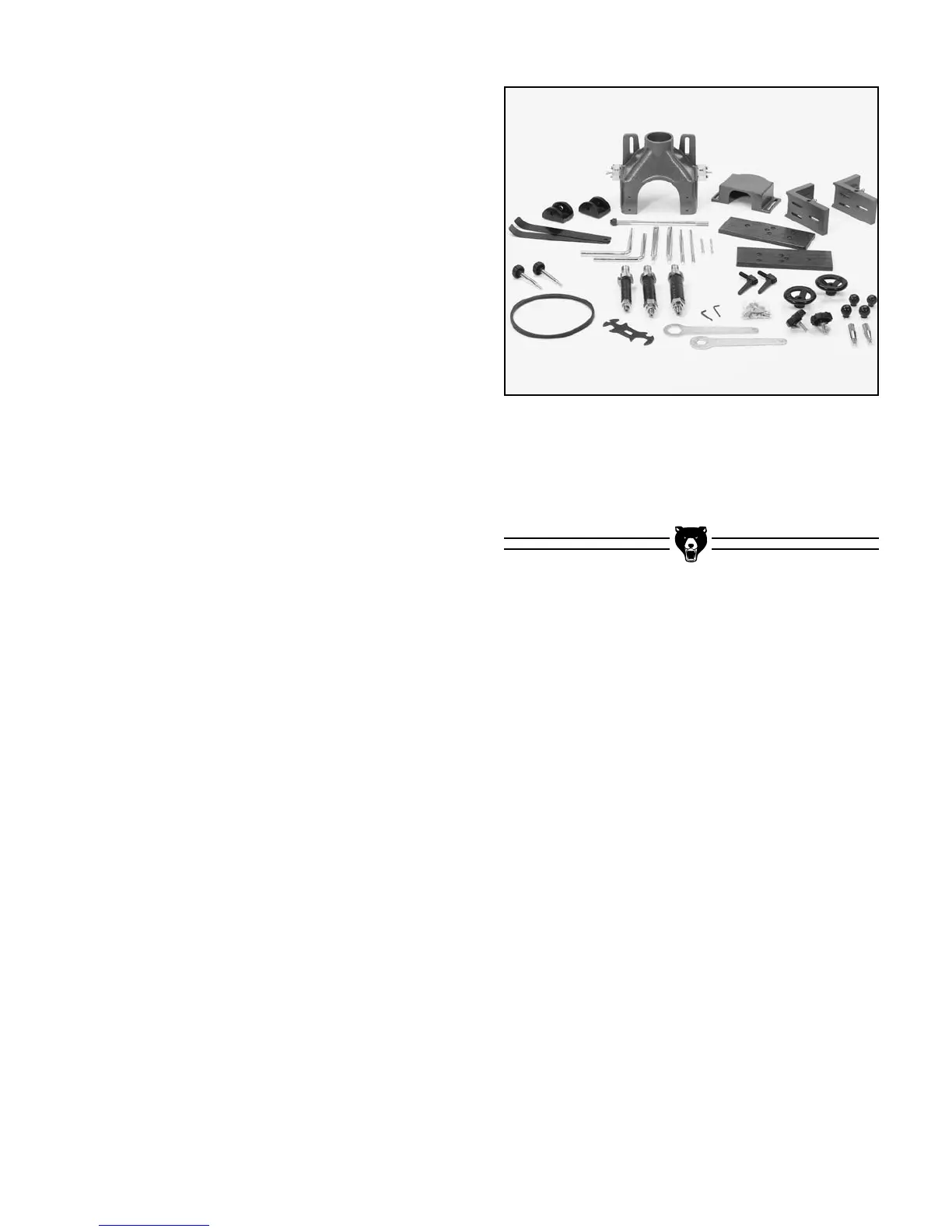

Figure 4. Shaper hardware.
In the event that any nonproprietary parts are
missing (e.g. a nut or a washer), we would be
glad to replace them, or for the sake of expedien-
cy, replacements can be obtained at your local
hardware store.
The Model G8622 Hardware and Qty:
3
⁄4" Spindle 1
1" Spindle 1
1
1
⁄
4" Spindle 1
3
⁄4" Spindle Nut 2
1" Spindle Nut 2
1
1
⁄4" Spindle Nut 2
Spacer Set 18
Hold-Downs 2
Hold-Down Bars 2
Hold-Down Brackets 2
Fence Pieces 2
Fence Mounts 2
Dust Port 1
Safety Guard 1
Multi Wrench 10, 19, 23, 26, 37mm 1
3mm Allen
®
Wrench 1
4mm Allen
®
Wrench 1
1
1
⁄2" Box Wrench 1
1" Box Wrench 1
Stainless Wheel Handles 2
Round Knobs 4
Plastic Adjustment Wheels 2
4
7
⁄8" Threaded Stud Knobs 2
4" Double Threaded-End Bars 2
Draw Bar w/Nut 1
Shaft Guide Bar w/Setscrew 2
Fence-Bracket Adjustment Handles 2
Adjustment Guide Bar 2
5
⁄16" Lock Washers 6
5
⁄16"-18 x 1
5
⁄16" Flat Head Screws 7
5
⁄16
" Flat Washers 8
1
⁄2" Flat Washers 4
5
⁄16" Hex Nuts 6
