G8622 Tilting Spindle Sliding Table Shaper -15-
Guard Cover

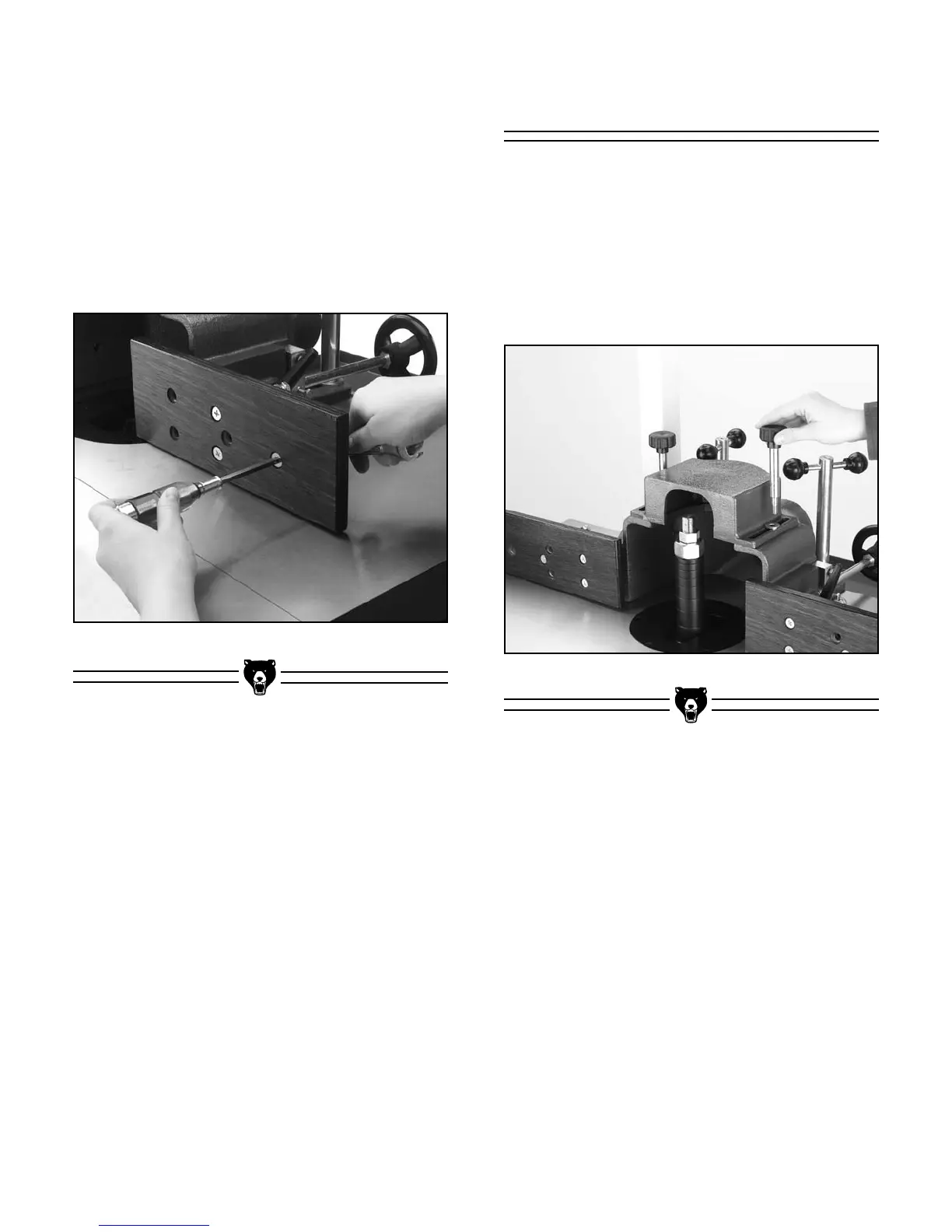

Figure 18. Guard cover.
To install the wood facing:
1. Secure the wooden fence pieces (as shown
in Figure 17) with the
5
⁄16''-18 x 1'' Phillips
®
head screws, washers, and hex nuts provid-
ed.
2. If using your own wood faces, make sure the
countersunk holes in your fence material are
deep enough to keep the entire screw head
below the fence surface.
To mount the guard cover:
1. Place the guard cover over the threaded
holes on top of the guard body as shown in
Figure 18.
2. Thread the knobs into the guard body and
secure the cover.
Figure 17. Attach wooden fence assembly.
