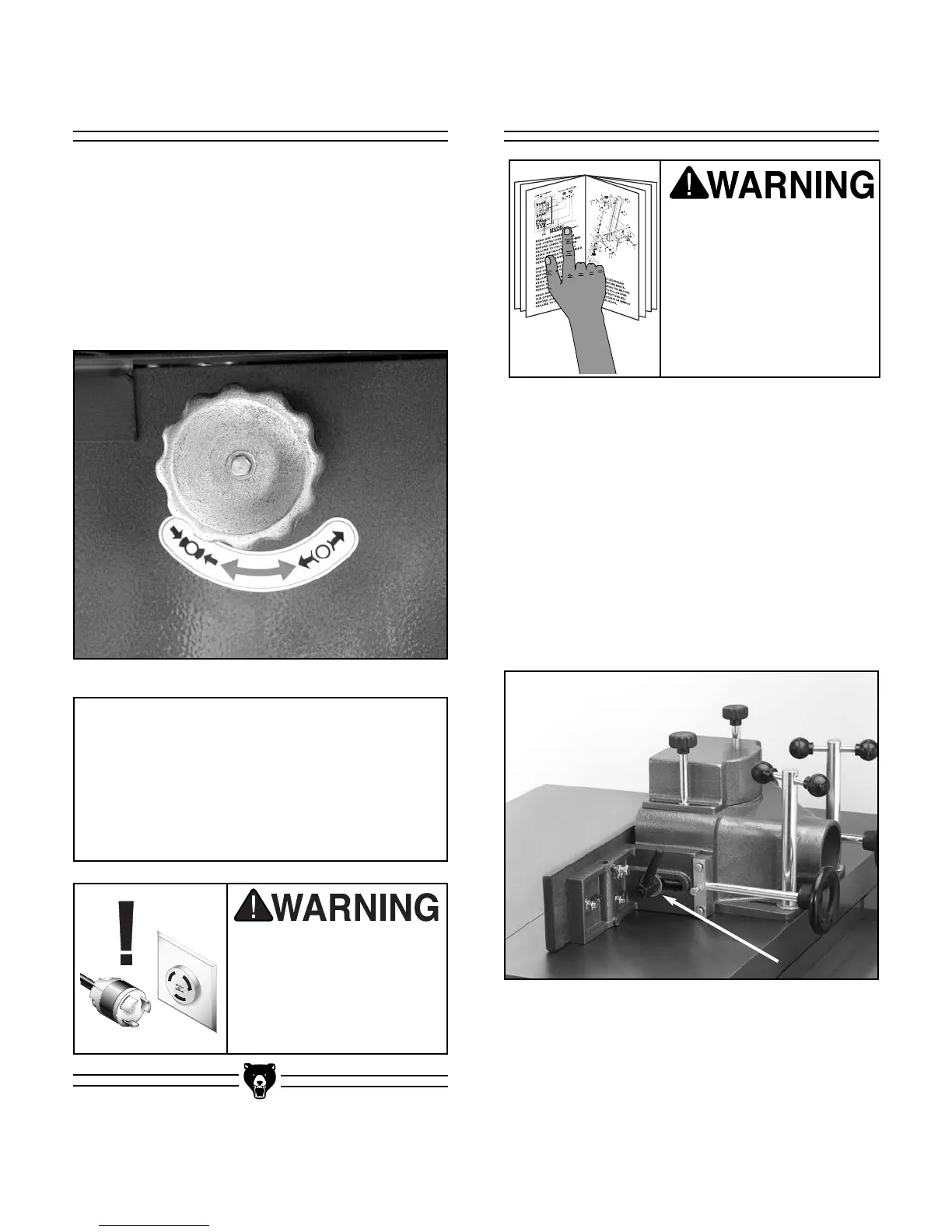

G8622 Tilting Spindle Sliding Table Shaper -25-
The fence assembly is a two-piece, independent-
ly adjustable system. When removing material
from the whole face of your workpiece, the out-
feed fence can be adjusted to provide support for
the workpiece as it passes over the cutter. The
outfeed fence can also be set in-line for partial
face removal.
If removing material from the whole face,
observe the following steps:
1. Loosen the locking handles shown in Figure
36 that hold the fences in place.
Straight ShapingSpindle Height
To adjust the cutter height:
1. Loosen the spindle lock shown in Figure 35.
2. Move the spindle up or down with the hand-
wheel until the desired position is obtained.
3. Lock the spindle into position.
Figure 35. Location of spindle lock.
The lock knob keeps the spindle in a fixed
position during shaper operation. Do not
over-tighten the lock knob. A snug fit is all
that is needed to keep the spindle from
moving during operation.
NOTICE
2. Adjust the infeed fence by turning the adjust-
ment knobs until the workpiece contacts the
cutter in the desired location.
3. Lock the infeed fence in position with the
locking handle. Use a test piece to determine
the best setting.
Disconnect power to the
machine when perform-
ing any adjustments or
maintenance. Failure to
do this may result in seri-
ous personal injury.
Read the entire manual
before making any cuts
with your shaper.
Serious personal injury
may result if safety or
operational information
is not understood or fol-
lowed.
Figure 36. Location of fence locking handles.
