G9749 Variable Speed Drill Press
-9-
Serious personal injury could occur if you
connect the machine to the power source
before you have completed the setup pro
-
cess. DO NOT connect the machine to the
power source until instructed to do so.
110/220V Operation
SECTION 2: CIRCUIT REQUIREMENTS
Amperage Draw
The Model G9749 features a 110/220V motor
that is prewired for 220V and draws the following
amps under maximum load:
Motor Draw at 110V .............................. 16 Amps
Motor Draw at 220V ............................... 8 Amps
Circuit Requirements
We recommend connecting your machine to a
dedicated and grounded circuit that is rated for
the amperage given below. Never replace a circuit
breaker on an existing circuit with one of higher
amperage without consulting a qualified electri
-
cian to ensure compliance with wiring codes
. If
you are unsure about the wiring codes in your
area or you plan to connect your machine to a
shared circuit, consult a qualified electrician.
110V Circuit ...........................................
30 Amps
220V Circuit ...........................................
20 Amps

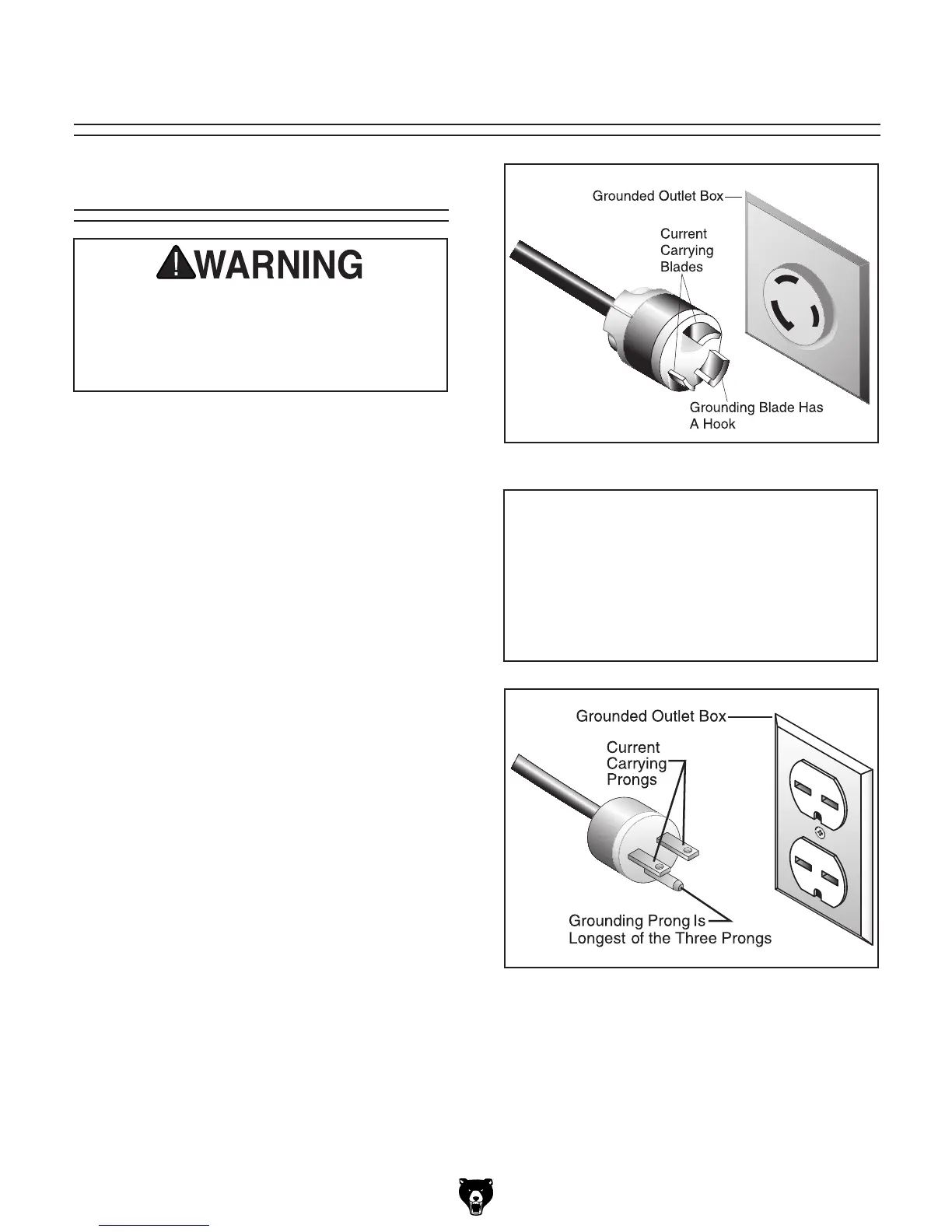

Plug/Receptacle Type
We recommend using one of the following plugs
for your machine on a dedicated circuit only (see
Figures
3 & 4 for examples):
110V Plug & Receptacle ............................ L5-30
220V Plug (provided) & Receptacle .............6-15
Figure 4. 6-15 plug and receptacle.
Figure 3. L5-30 plug and receptacle.
NOTICE
The Model G9749 is prewired for 220V oper-
ation. If you plan to rewire your machine
for 110V, you must change the motor wir
-
ing, plug, and power receptacle. Consult
a qualified electrician before attempting to
rewire your machine!
