G9749 Variable Speed Drill Press
-5-

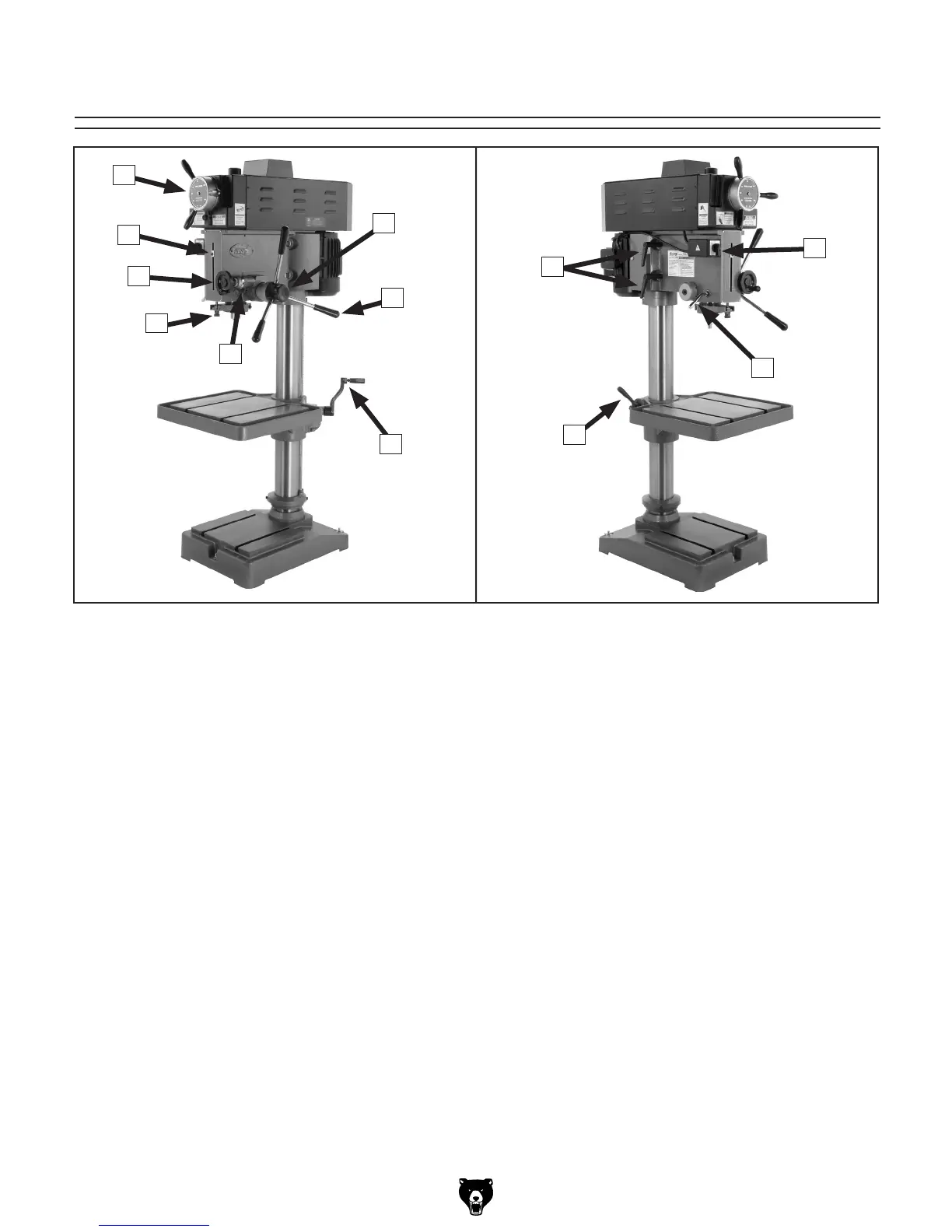

Figure 1. Right side controls.
Identification
Figure 2. Left side controls.
Refer to the list below and see Figures 1 & 2 to
become familiar with the drill press controls.
A. Speed Selector Control:
Allows variable
speeds from 300 to 2000 RPM.
B. Depth Gauge: Indicates quill travel in centi
-
meters and inches.
C. Fine Downfeed Control: Allows more pre
-
cise management of the quill and tooling.
D. Depth Stop:
Stops the quill travel at a pre-set
drilling depth.
E. Fine Downfeed Indicator: Indicates fine
downfeed adjustments in 0.001" increments.
F. Clutch Knob: Switches between rapid and
fine downfeed control.
G. Rapid Downfeed Control: Provides a faster
movement of the quill and tooling.
H. Table Crank Handle: Raises/lowers the
table.
I. Headstock Lock Levers: Locks the head
-
stock rotation.
J. Table Lock Lever: Locks the table height
and rotation.
K. Quill Lock Lever: Locks the quill in place.
L. Rotary Power Switch: Selects forward, stop,
or reverse.
A
B
C
D
E
F
G
H
I
J
K
L
