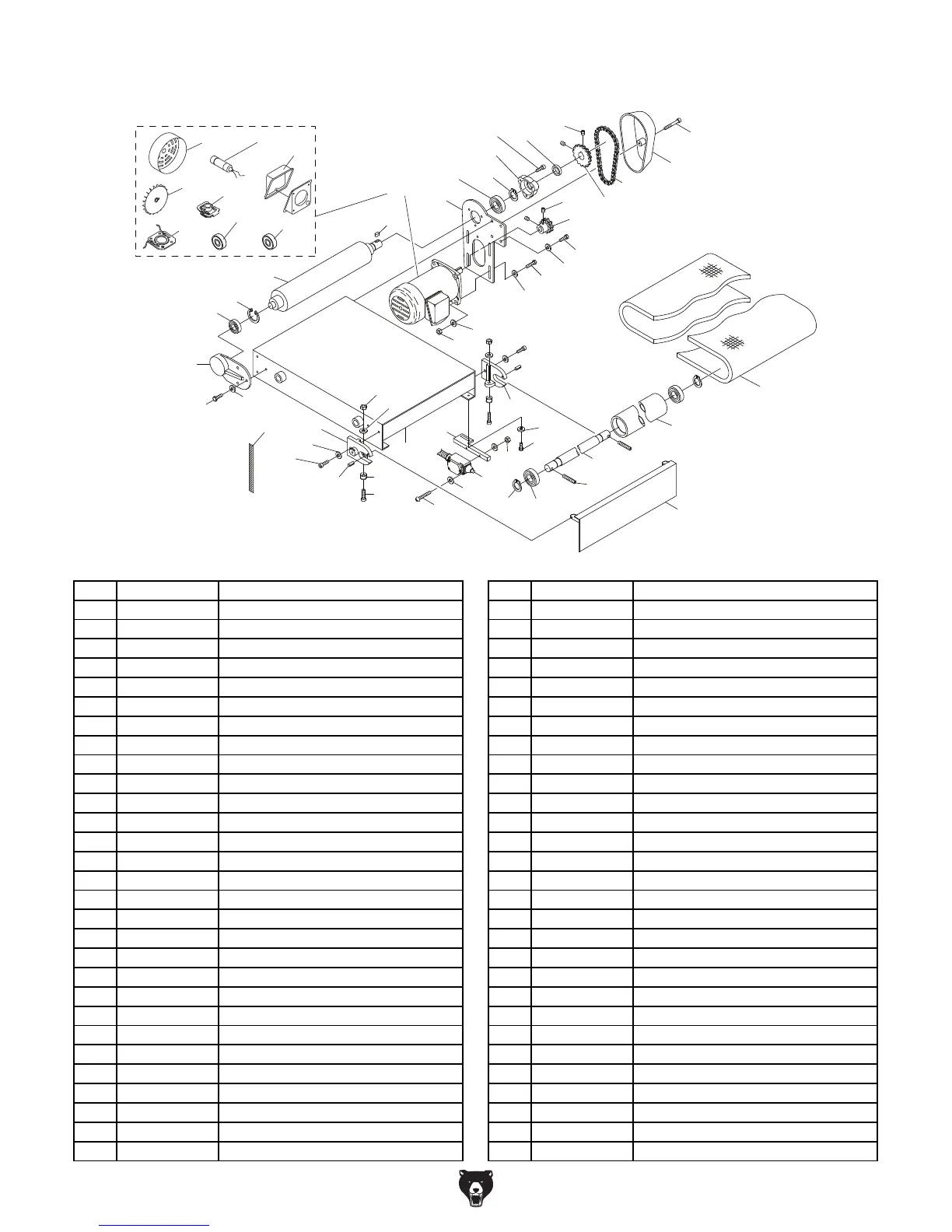

Grizzly G9983 - Conveyor Parts List

Model G9983 (Mfg. Since 8/09)
-47-
234
227
225
226
206
215
214
207
209
204
205
252
218
202
210
201
208
213
244
245
229
228
230
231
243
243-1
243-2
243-6
243-5
243-4
243-3
243-7
243-8
232
233
219
220
222
217
203
216
212
211
221
223
224
237
236
247
246
248
249
235
250
251
238
240
241
239
242
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P9983201 CONVEYOR SUPPORT 231 PK67M KEY 8 X 7 X 15
202 P9983202 ROLLER BRACKET LH 232 P9983232 MOTOR PANEL
203 P9983203 ROLLER BRACKET RH 233 P6205ZZ BALL BEARING 6205ZZ
204 PLW04M LOCK WASHER 8MM 234 PR11M EXT RETAINING RING 25MM
205 PB07M HEX BOLT M8-1.25 X 25 235 P9983235 BEARING COVER
206 PCAP40M CAP SCREW M8-1.25 X 35 236 PCAP74M CAP SCREW M6-1 X 18
207 P9983207 PLASTIC ROLLER 237 P9983237 BUSHING
208 PLW04M LOCK WASHER 8MM 238 P9983238 COMBO SPROCKET 19T/24T
209 PN03M HEX NUT M8-1.25 239 PSS02M SET SCREW M6-1 X 6
210 P9983210 LIMIT SWITCH BASE 240 P9983240 CHAIN 3/8" X 48PC
211 PW03M FLAT WASHER 6MM 241 P9983241 CHAIN COVER
212 PS14M PHLP HD SCR M6-1 X 12 242 PCAP37M CAP SCREW M6-1 X 50
213 P9983213 LIMIT SWITCH 243 P9983243 FEED MOTOR 1/4HP 220V 1-PH
214 PW05M FLAT WASHER 4MM 243-1 P9983243-1 MOTOR FAN COVER
215 PS48M PHLP HD SCR M4-.7 X 50 243-2 P9983243-2 MOTOR FAN
216 PN04M HEX NUT M4-.7 243-3 P9983243-3 MOTOR JUNCTION BOX
217 P9983217 E-BRAKE PANEL 243-4 P9983243-4 S CAPACITOR
218 PRP03M ROLL PIN 5 X 20 243-5 P9983243-5 CENTRIFUGAL SWITCH
219 PR11M EXT RETAINING RING 25MM 243-6 P9983243-6 CONTACT PLATE
220 P6305ZZ BALL BEARING 6305ZZ 243-7 P9983243-7 FRONT BALL BEARING
221 P9983221 CONVEYOR AXLE 243-8 P9983243-8 REAR BALL BEARING
222 PSS39M SET SCREW M10-1.5 X 50 244 PLW04M LOCK WASHER 8MM
223 P9983223 CONVEYOR ROLLER 245 PN03M HEX NUT M8-1.25
224 P9983224 CONVEYOR BELT 380 X 1600MM 246 PW01M FLAT WASHER 8MM
225 P9983225 BEARING SEAT 247 PB26M HEX BOLT M8-1.25 X 30
226 PLW04M LOCK WASHER 8MM 248 PLW04M LOCK WASHER 8MM
227 PB09M HEX BOLT M8-1.25 X 20 249 PB09M HEX BOLT M8-1.25 X 20
228 P6204ZZ BALL BEARING 6204ZZ 250 P9983250 COMBO SPROCKET 12T/14T
229 PR25M INT RETAINING RING 47MM 251 PSS02M SET SCREW M6-1 X 6
230 P9983230 MAIN ROLLER 252 P9983252 CONVEYOR HEIGHT SCALE
Conveyor
