Model G9983 (Mfg. Since 8/09)
Left Access Door
There are access doors located on each side of
the sander. Throughout the manual, we refer to
these doors as the “left-hand access door” and
the “right-hand access door.” These terms are
referenced as if you are facing the front of the
machine.

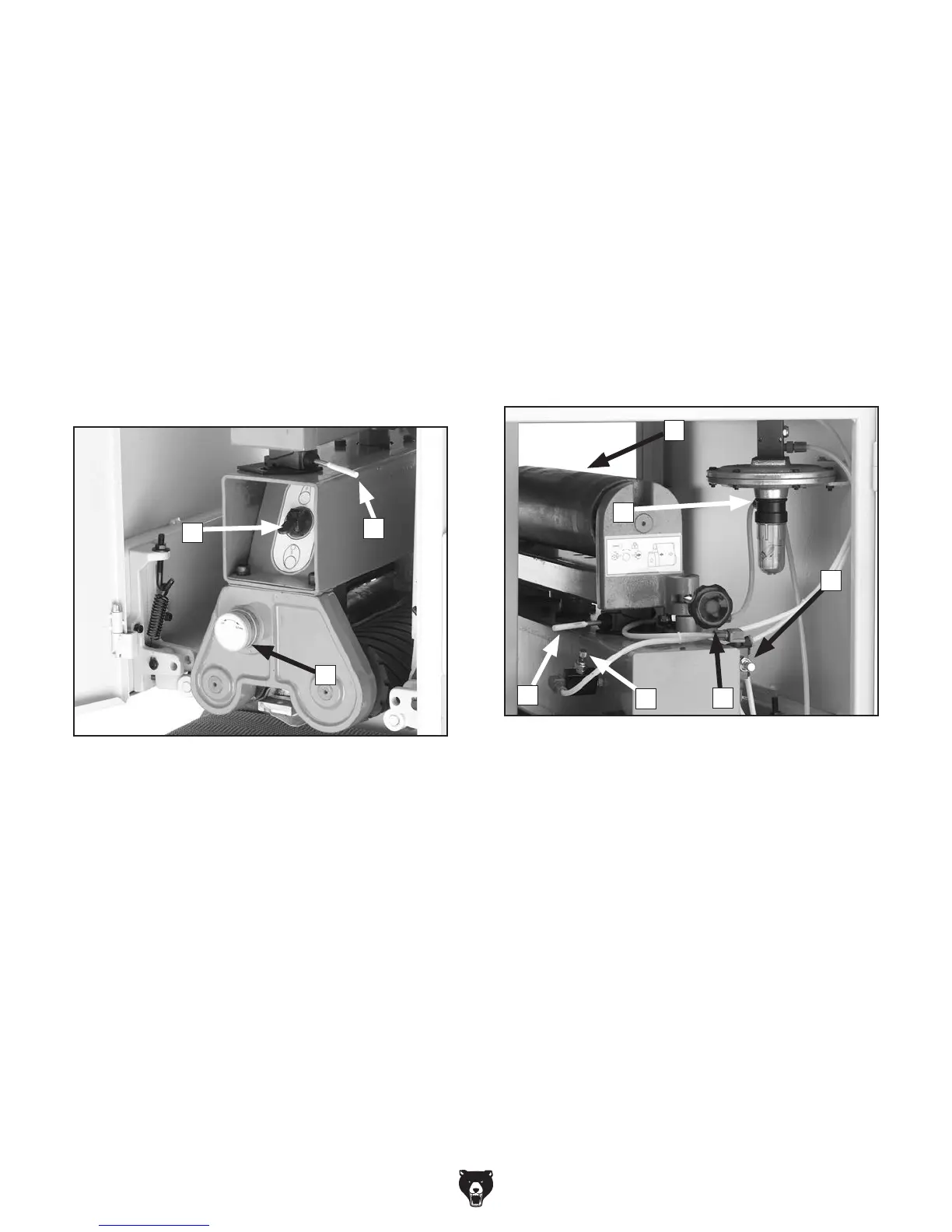

Figure 3 shows the layout behind the left-hand
access door.
A. Limit Switch
B. Sanding Belt Tension Switch
C. Platen Adjustment Knob
Right Access Door
Figure 4 shows the layout behind the right-hand
access door.
A. Oscillating Roller
B. Oscillation Air Filter
C. Limit Switch
D. Oscillation Return Valve
E. Oscillation Speed Valve
F. Oscillation Timing Knob
Figure 3. These items are behind the
left-hand access door.
A
B
C
Figure 4. These items are behind the
right-hand access door.
A
B
C
D
E
F
