3.13 Removal of Burner Orifices
(Injectors)
(Turn gas and electricity
mains off)
a) Remove burners (Paragraph 3.11).
b) Remove orifices from burner manifold.
c) Replace in reverse order.
3.14 Fuse Replacement
3.15 Transformer Replacement (Fig. 13)
(Smae as 3.14)
a) Remove the control cabinet cover as
described in Paragraph 3.3.1.
b) Remove fuse from fuse holder (See Fig. 13).
c) Replace fuse with an identical fuse.
d) Replace in reverse order.
3.16 Wiring Diagram, BPM-30G & BPM-40G Models

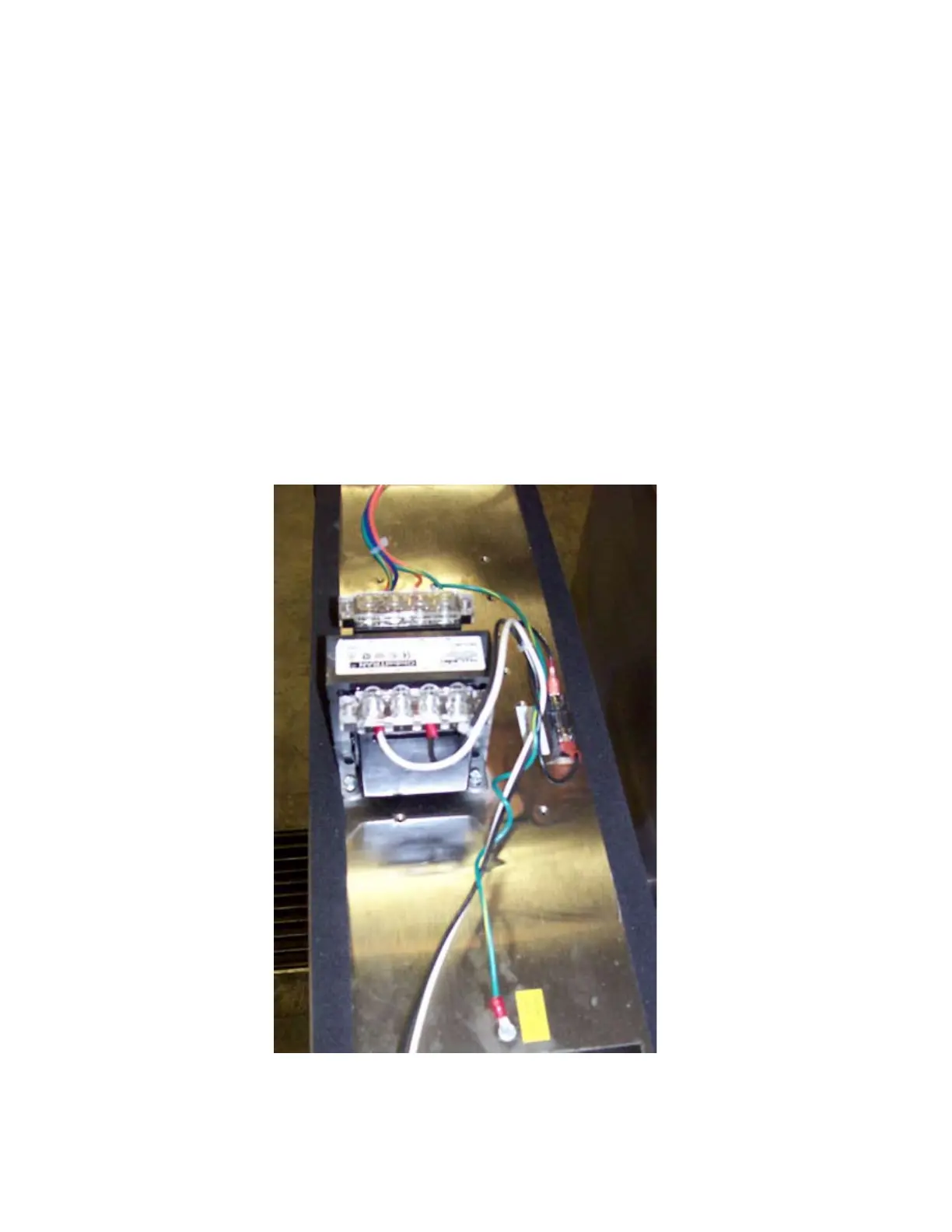

Fig. 13
