Toughsat Users Manual Ground Control
- 12 -

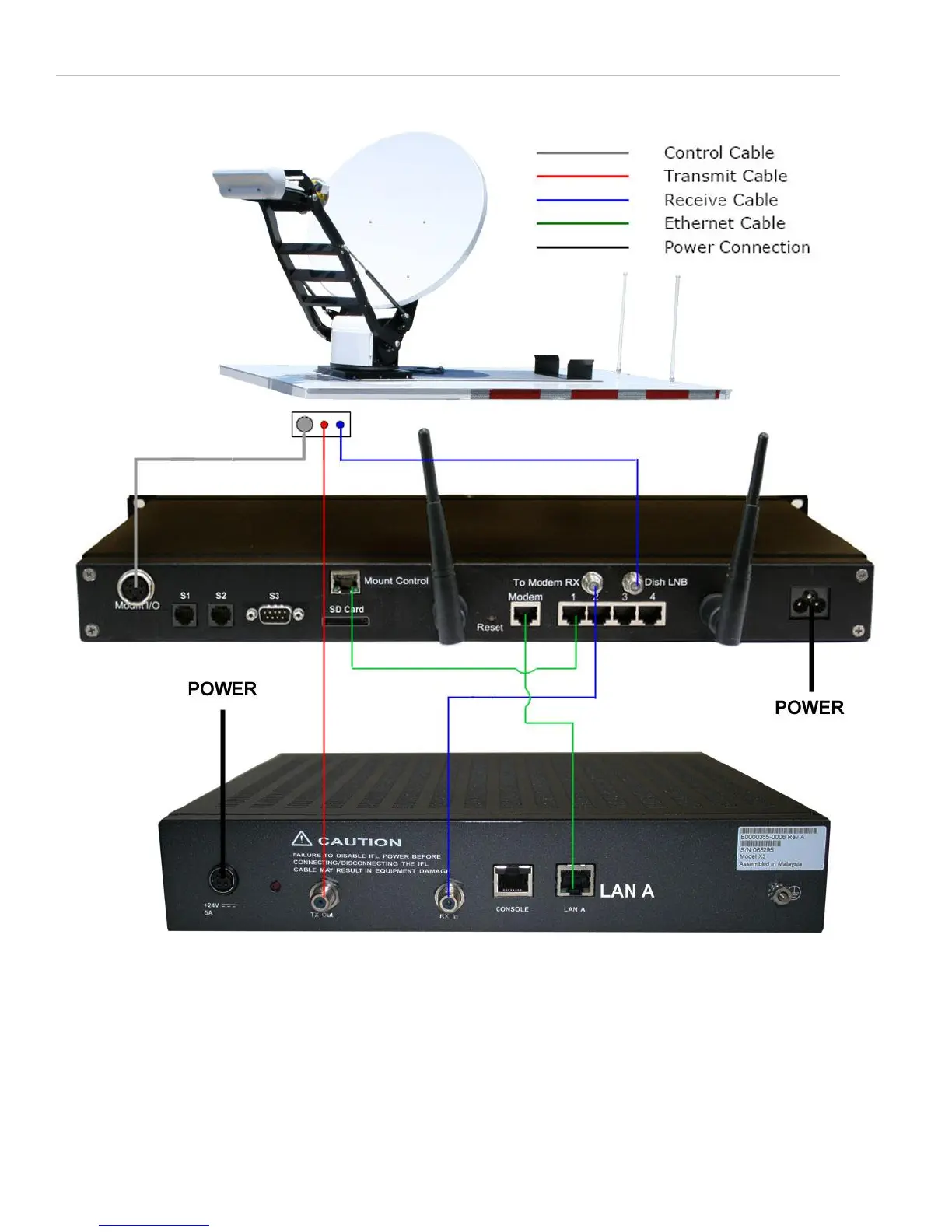

Toughsat Wiring Diagram
Above is the standard wiring between the Toughsat, the TS2 controller, and the iDirect X5 satellite router.
Input voltage is between 100/240 Volts AC. We strongly recommend using a UPS (Universal Power Supply) in situations
where power is inconsistent, such as fuel powered generators, solar panels, and DC inverters.
NOTE - Commercial grade routers will work with our equipment, however support is limited from Ground Control for
routing issues with unknown equipment.
WARNING – DO NOT PLUG IN CONTROL CABLE IF CONTROLLER IS POWERED ON. Doing so will damage
electronics, which is not covered by the warranty.
