All electrical installations shall be done in accordance with the local and
national electrical codes. Do not remove the casing. Inverter contains no user
serviceable parts. Refer servicing to qualified service personnel. all wiring
and electrical Installation should be conducted by a qualified service
personnel .
Carefully remove the unit from its packaging and inspect for external damage.
If you find any imperfections, please contact your local dealer.
Be sure that the inverters connect to the ground in order to protect property
and personal safety.
The inverter must only be operated with PV generator. Do not connect any
other source of energy to it.
Both AC and DC voltage sources are terminated inside the PV Inverter.
Please disconnect these circuits before servicing.
This unit is designed to feed power to the public power grid (utility) only. Do
not connect this unit to an AC source or generator. Connecting Inverter to
external devices could result in serious damage to your equipment.
When a photovoltaic panel is exposed to light, it generates a DC voltage.
When connected to this equipment, a photovoltaic panel will charge the DC
link capacitors.

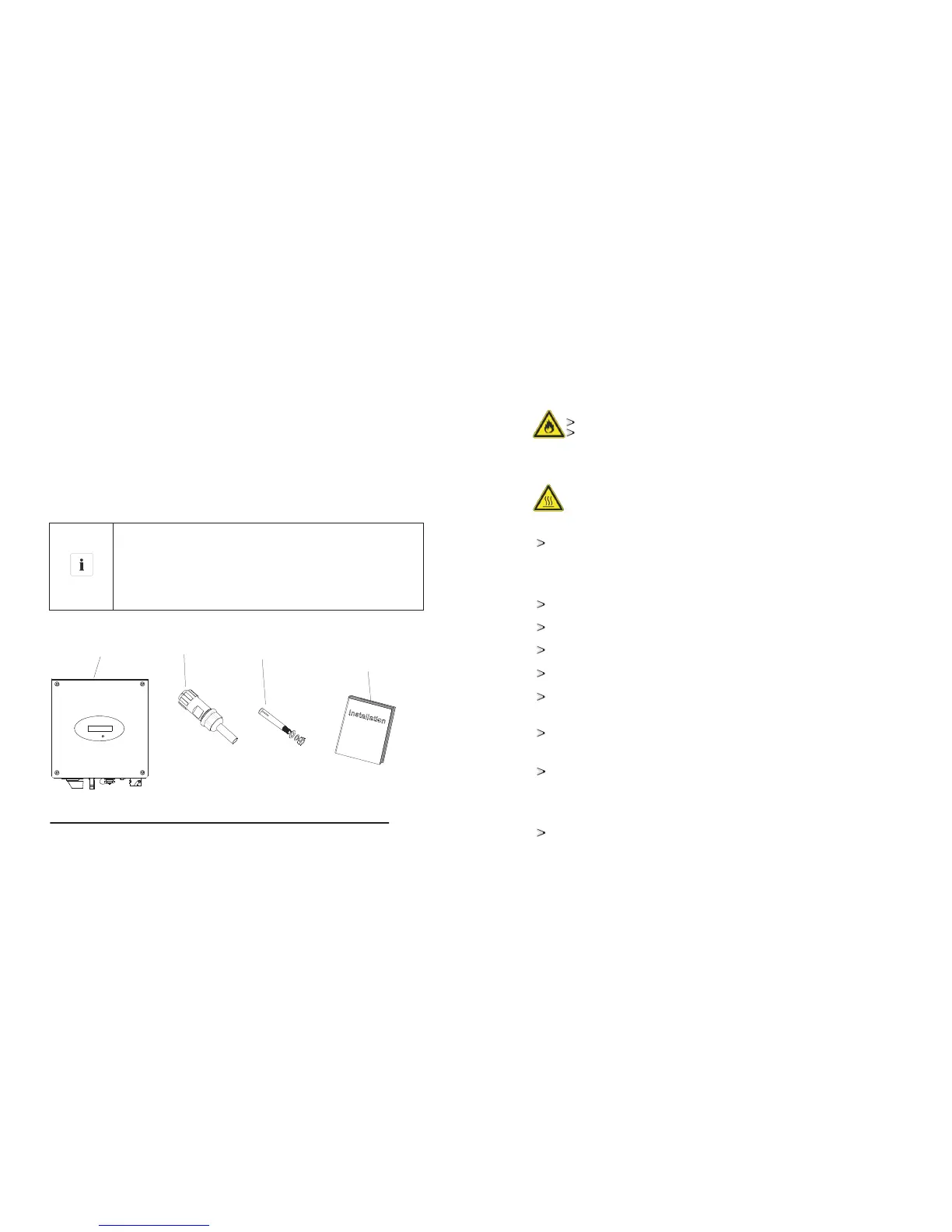

1
Growatt inverter
A
1
AC connection plug
B
2
Mounting screws
C
1
Installation & Operation Manual
D
Item
Number
Description
Remarks
14
15
4 Unpacking
Thoroughly inspect the packaging upon received. If any damage to the carton is
visible, or if you find that the inverter unit is damaged after unpacking, please
notify the shipping company and SHENZHEN GROWATT NEW ENERGY
TECHNOLOGY CO.,LTD immediately.
Meanwhile please check the delivery for completeness and for visible external
damages of the inverter. If there are anything damaged or missing, please contact
your dealer. Don't dispose its original package. If you want to transport the
inverter, it is better to store the inverter into the original package.
After opening the package, please check the contents of the box. It should contain
the following, Please check all of the accessories carefully in the carton. If
anything missing, contact your dealer at once.
Installation 5
5.1. Safety instructions
Danger to life due to fire or explosion
Risk of burns due to hot enclosure parts
Mount the inverter in such a way that it cannot be touched inadvertently.
Despite careful construction, electrical devices can cause fires.
Do not install the inverter on easily flammable materials and where
flammable materials are stored.
Information
Though the packaging box of Growatt inverter is durable, please
treat the packing box gently and avoid dispose the packing box.
In this package, there are inverter, cystosepiment and carton
from inside to outside.
For the accessories, there are two kinds of configuration,
please refer to the inverter you receive.
Energy stored in this equipment's DC link capacitors presents a risk of
electric shock. Even after the unit is disconnected from the grid and
photovoltaic panels, high voltages may still exist inside the PV-Inverter. Do
not remove the casing until at least 5 minutes after disconnecting all power
sources.
Although designed to meet all safety requirements, some parts and surfaces
of Inverter are still hot during operation. To reduce the risk of injury, do not
touch the heat sink at the back of the PV-Inverter or nearby surfaces while
Inverter is operating.
C
B
D
A
