6.5. Commissioning the inverter
1. If the inverter connects with PV panel arrays and the input voltage is higher than
70Vdc, while the AC grid is not connected yet, LCD will display messages in order
as below:
‘Ser NO: xxx'->'xxxxx'->'FW version'->'Waiting'->'No AC connection', the display
repeats 'NO Utility' and LED will be red.
2. Turn on the AC breaker or close the fuse between inverter and grid, the system
will operate normally.
3. Under normal operating conditions, the LCD displays 'Power: xxx.x W' at State
info, this is the power fed into grid. LED turns green.
4. Finish commissioning.

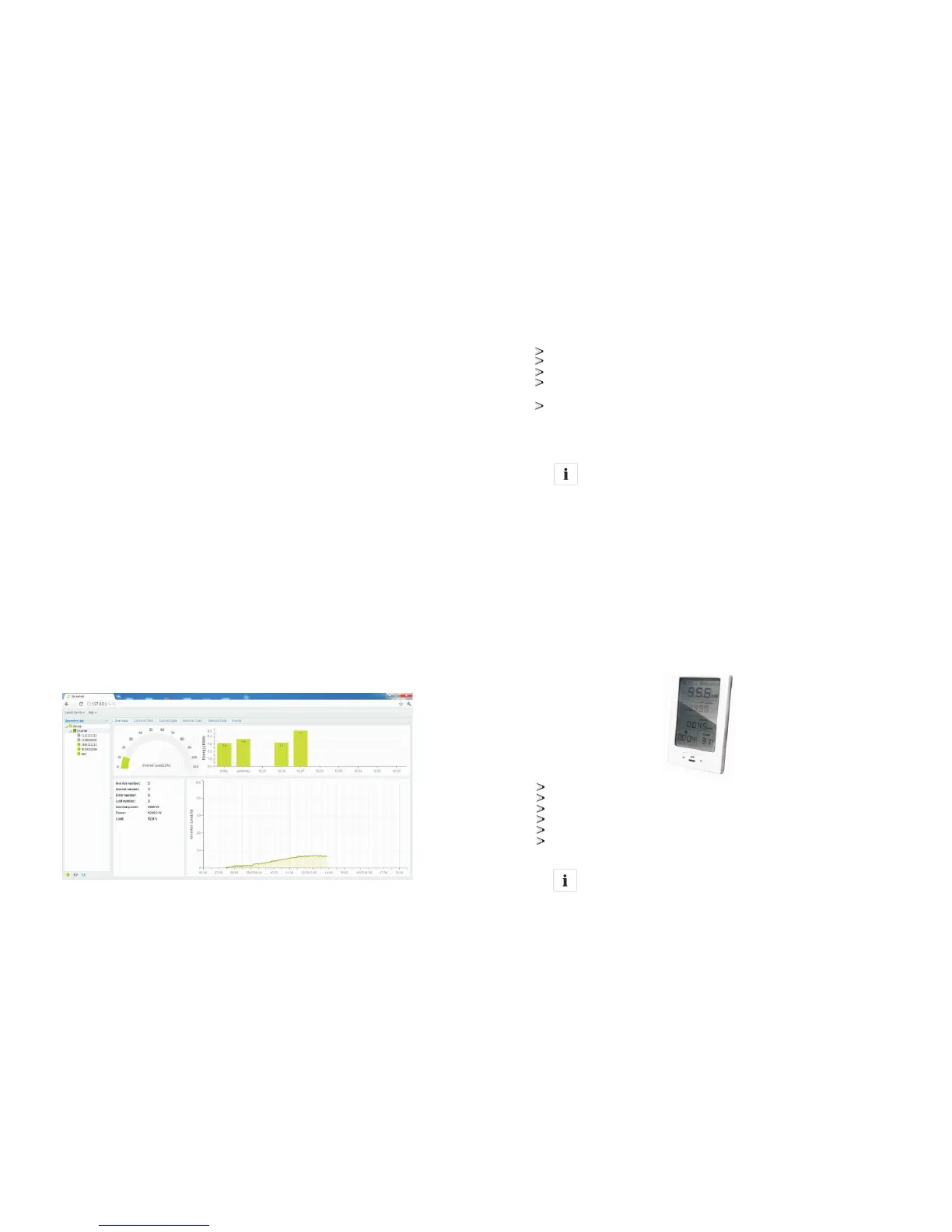

6.6.1. ShineNet
ShineNet is a monitoring software applied to monitor Growatt inverters via RS232
port or Bluetooth module. With the special designed functions and friendly
compact UI, it can comprehensively meet users' requirements for system
monitoring and bring unprecedented user experience.
6.6. Monitoring tool instructions
Features:
Information
Users are able to monitor the inverter after the setting of
software. Detailed information about setting and functions refer
to the ShineNET Manual.
Y o u c a n d o w n l o a d t h e S h i n e N e t Y N 2 . 0 f r o m :
ftp://113.106.58.169, the user name is ftpguest and Password is
ftpguest.
Sh ineN et may be upgr aded fo r bett er f unct ion or user
experience, please refer to the actual software version.
6.6.2. ShineVision
ShineVision is a wireless monitoring device, which consists of a power monitor
and a number of transmitters, and one shinevision can monitoring 1 to 6
inverters. The transmitters transmit the running data collected from photovoltaic
inverters to the monitor and display the data onto the monitor screen, including
data of generated energy, the gross generated energy and the generation income
obtained from the above-mentioned data through some simple calculations,
indoor temperature, date and time, as well as CO2 emissions.
Monitor and record current data and of inverters.
Record historical data.
Monitor and record event information of inverter
Connect computer and inverter via RS232 and RS485 port (wire connection)
or Bluetooth module (wireless connection).
Remote access available for local area network.
Features:
Monitor and transmitter communicate via wireless communication technology.
External transmitter, with IP65 waterproof and dustproof.
A monitor can simultaneously communicate with six transmitters.
Communication distance between monitor and transmitter : 30 meter.
Power supply option: built-in battery slot, an external DC power supply.
Easy installation, and convenient to use it.
Information
The Monitor should be kept indoor. For detailed information,
please refer to ShineVision Manual.
