Operation

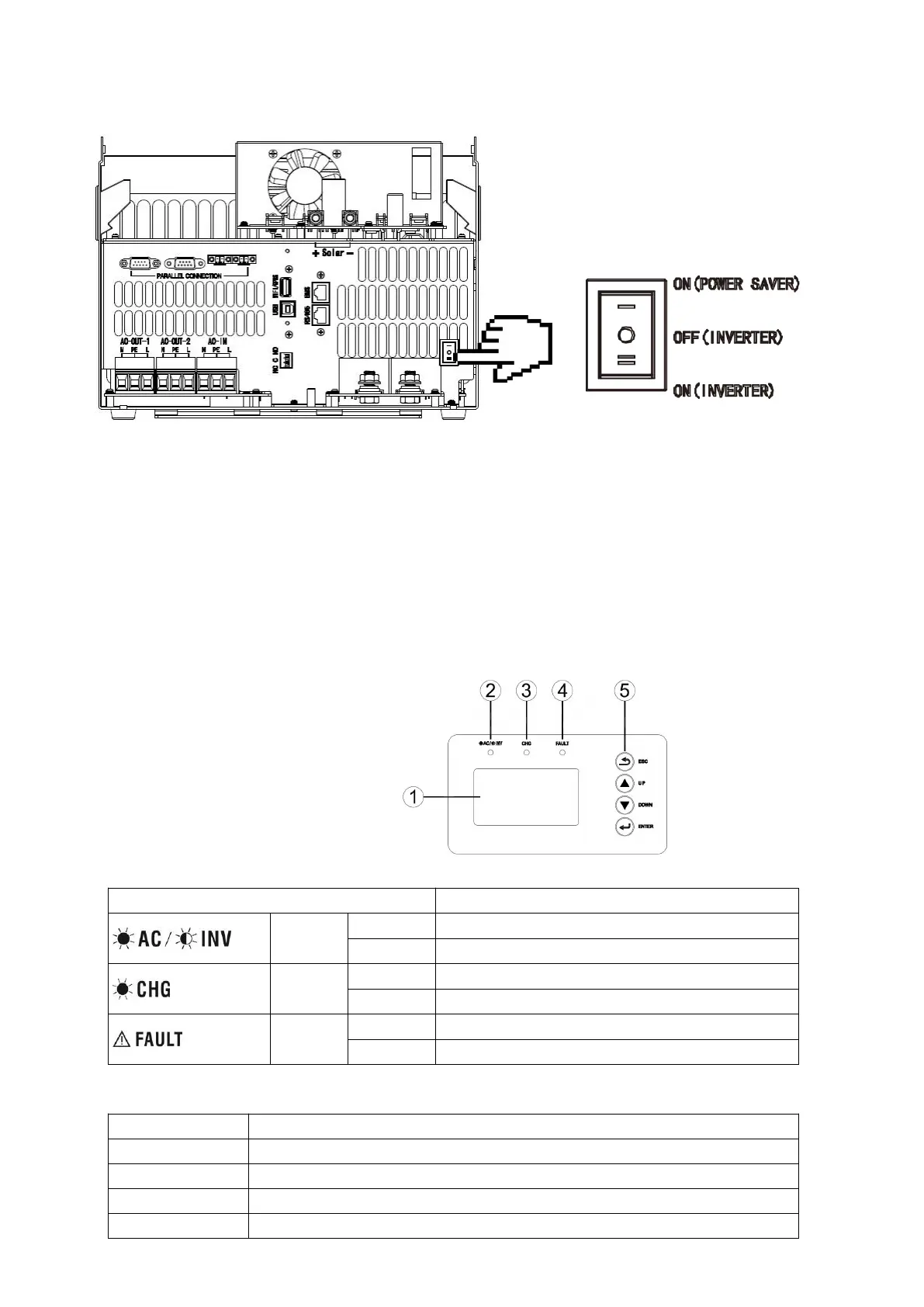

Power ON/OFF
Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch
(located on the button of the case) to turn on the unit. The switch is located on the underside to the bottom
right of the product.
The switch has three positions. The middle position means OFF. The II position means ON, turning on
inverting and inverter is fully functional. The I position is Power Save Mode, inverter will only go inverting
when loads are higher than 50W if under this power save mode.
Operation and Display Panel
The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes
three indicators, four function keys and a LCD display, indicating the operating status and input/output
power information.
1. LCD display
2. Status indicator
3. Charging indicator
4. Fault indicator
5. Function buttons
LED Indicator
Output is powered by utility in Line mode.
Output is powered by battery or PV in battery mode.
Battery is fully charged.
Fault occurs in the inverter.
Warning condition occurs in the inverter.
Function Buttons
To go to previous selection
To confirm the selection in setting mode or enter setting mode
To Next Page
