Growatt SPH Series User Manual

11 12
Unpacking4

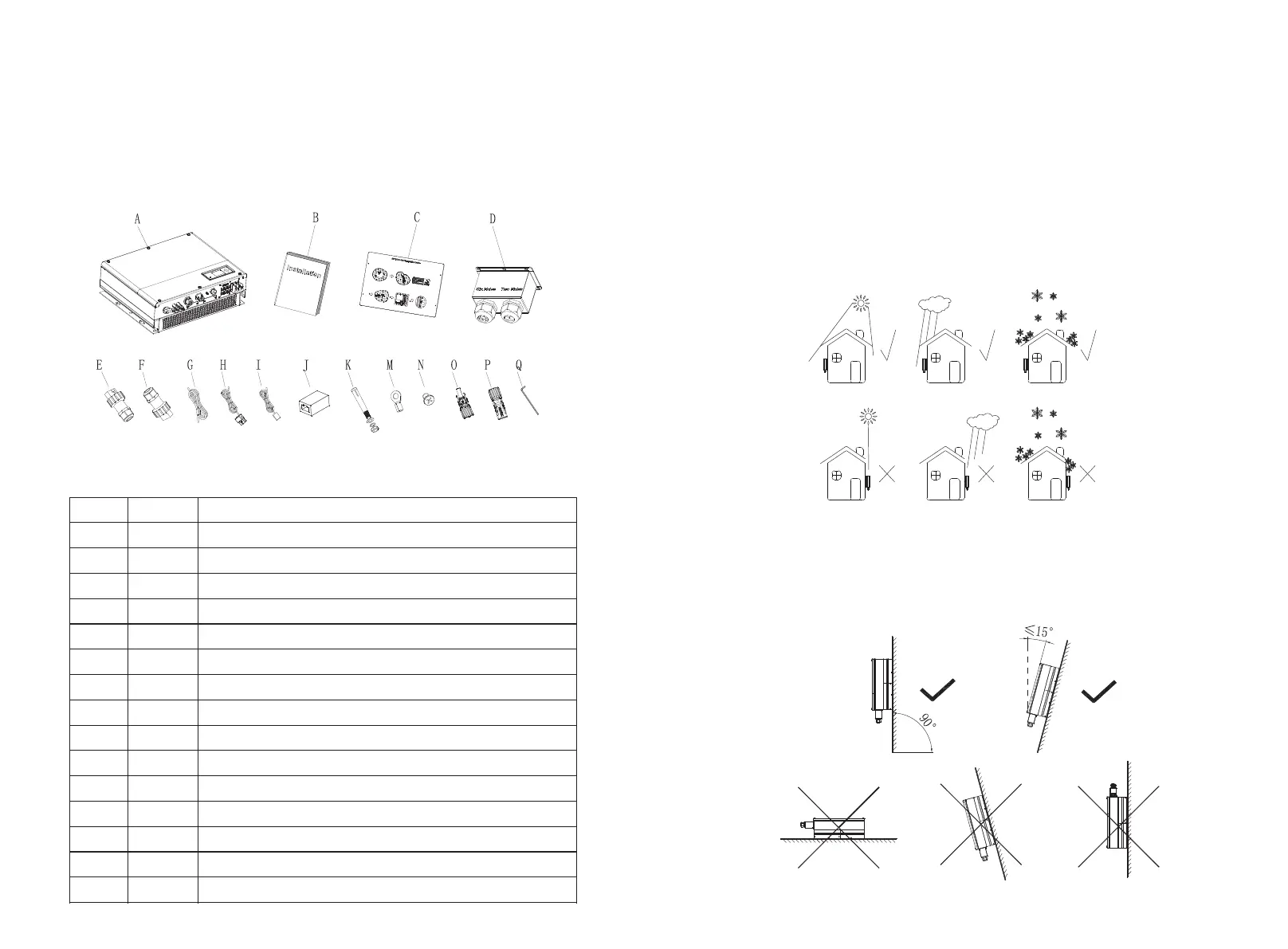

Growatt SPH series and accessories as follows:
SPH inverter
User Manual
Paper board(installation guide)
Waterproof cover
AC Grid connector(Austrialian machine terminal is different)
EPS output connector
Communication cable
Current sensor
Lead-acid battery temperature sensor
RJ45 connector
M6 setscrew
Battery power terminal
Screw
MC4 connector
A
B
C
D
E
F
G
H
I
J
K
M
N
O/P
Item
Number Description
Chart 4.1
Installation 5
5.1 Basic installation requirements
Chart 5.2
E. Battery installation option is not far away from the position of SPH, the length
between SPH and battery should not be more than 1.5m.
G. SPH can be installed in vertical or lean back on plane, please refer to the below
F. The ambient temperature should be -25℃ ~60 ℃
A. The installation location must be suitable for SPH's weight for a long period time
B. The installation location must conforms with dimension of SPH
C. Do not install the unit on structures constructed of flammable or thermo labile
materials
D. The ingress Protection rate is IP65 and the pollution degree is Pd2. and SPH
can't
Chart 5.1
Q
1
Hex screwdriver
1
1
1
1
1
1
1
1
1
1
2/2
6
2
4
Please check whether external damage to the goods before unpacking.
After unpacking, please check whether the unit damage or missing parts, if it is
happen, please contact with supplier.

Growatt SPH Series Specifications

General

Type	Hybrid Inverter
Max. Input Voltage	600V
Number of MPPTs	2
Protection Rating	IP65
Output Power Range	3kW - 10kW
Rated AC Output Power	3-10 kW
Communication Interfaces	RS485, USB, Wi-Fi
Output Voltage	230 V
Frequency	50/60 Hz
Operating Temperature	-25°C to 60°C
Cooling Method	Natural Convection
