Groz GP1 User Manual

17
Piston Washer
WSR/PST/RP-G
O Ring
ORG/BS812
Guide Bush
BSH/RP-G
Nyloc Nut
NN/M6/RP-G
Steel Ball (7/32”)
SB/7-32
Non Return Spring
SPR/NR/RP-G
Filter Cap
IC/FLT/RP-G
47
48
62
61
60
50
56
KIT PART NO. KIT
DESCRIPTION
CONSTITUENT
PART NO.
PART
DESCRIPTION
REFERENCE NO. FROM

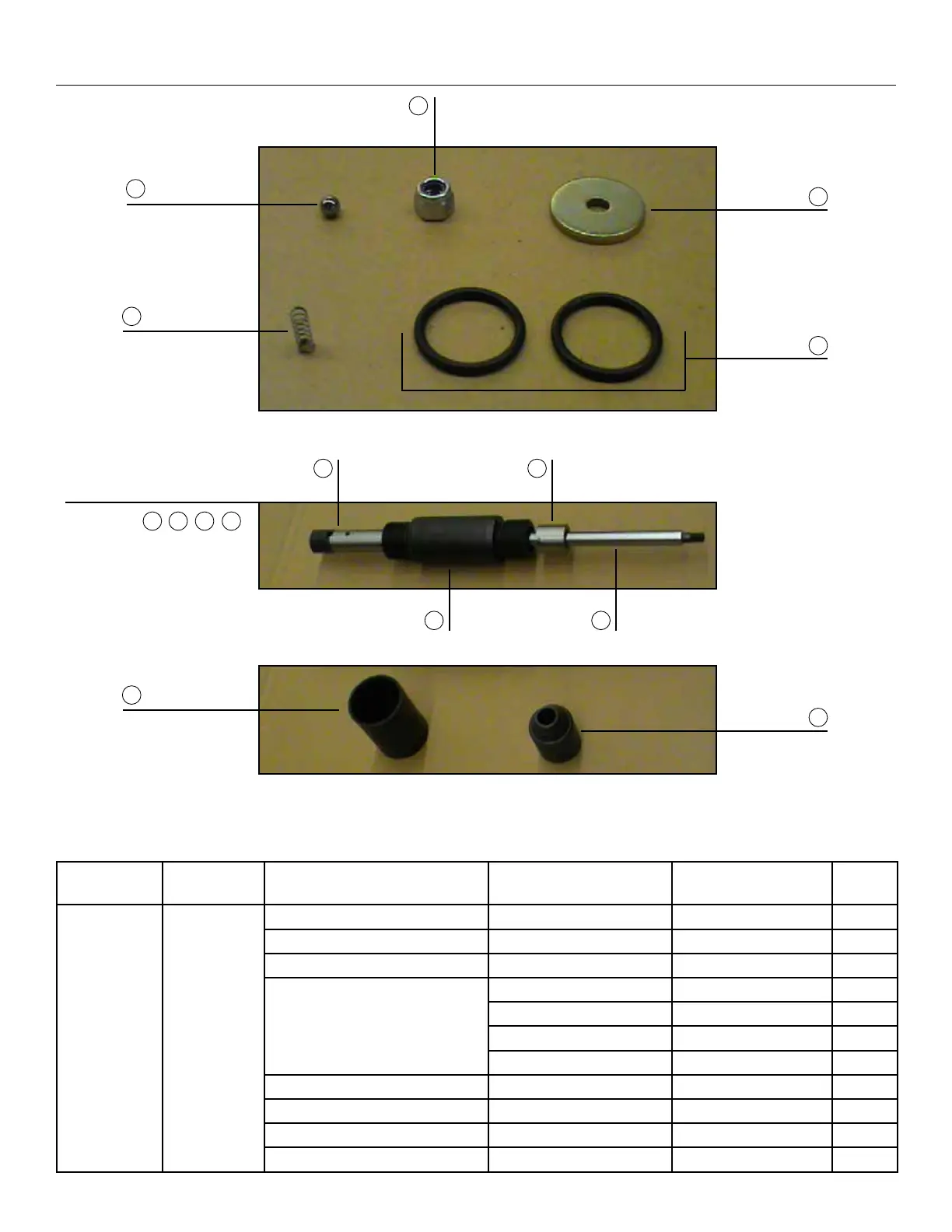

EXPLODED VIEW
QTY.
PER KIT
KIT/BTM/RP-G PUMPING
SECTION KIT
SB/7-32 Steel Ball (7/32”) 47 1
SPR/NR/RP-G Non Return Spring 48 1
ORG/BS812 O Ring 50 2
ROD/CYL/RP-G
Pump Cylinder (CYL/RP-G) 51 1
Top Coupler (CPL/TOP/RP-G) 52 1
Slide Bush (BSH/SLD/RP-G) 53 1
Piston Rod (ROD/PST/RP-G) 55 1
BSH/RP-G Guide Bush 56 1
WSR/PST/RP-G Piston Washer 60 1
NN/M6/RP-G Nyloc Nut 61 1
IC/FLT/RP-G Filter Cap 62 1
Rod & Cylinder Assembly
ROD/CYL/RP-G
Component
must be replaced TOGETHER
even if only one of these
component need replacement
51 52 53 55
Fig. 9
Fig. 10
Fig. 8
SERVICE PARTS PROGRAM (Pumping Section Kit - KIT/BTM/RP-G)
51 53
52 55
Pump Cylinder
CYL/RP-G
Slide Bush
BSH/SLD/RP-G
Top Coupler
CPL/TOP/RP-G
Piston Rod
ROD/PST/RP-G
Table 5
