Groz GP1 User Manual

18
Seal
SEAL/RP
Sealing Ring
SR/B/RP
Slotted Spring Pin
SSP/3/0.6/15.3
Bend
BEND/90/RP
Connecting Rod
ROD/CNR/S/RP
Slider Guide
GUD/SEL/RP
43
38
4
39
3
40
44
Seal Support
SU/SEL/RP
KIT PART NO. KIT
DESCRIPTION
CONSTITUENT
PART NO.
PART
DESCRIPTION
REFERENCE NO. FROM
EXPLODED VIEW
QTY.
PER
KIT
KIT/TP/RP-G DRIVE SECTION KIT
SR/B/RP Sealing Ring 3 2
BEND/90/RP Bend 4 2
ORG/BS141 O Ring 6 2
ORG/BS614 O Ring 11 1
ORG/BS617 O Ring 16 4
ORG/BS121 O Ring 22 1
SEL/P/RP Paper Seal 24 1
SET/RP Seat 25 1
SLD/NY/RP Nylon Slider 27 1
ORG/BS129 O Ring 31 1
ORG/BS115 O Ring 37 1
GUD/SEL/RP Seal Guide 38 1
SEAL/RP Seal 39 4
SU/SEL/RP Seal Support 40 1
ROD/CNR/S/RP Connecting Rod 43 1
SSP/3/0.6/15.3 Slotted Spring Pin 44 3
22
16
O Ring
ORG/BS121
O Ring
ORG/BS617
31
O Ring
ORG/BS129
4
O Ring
ORG/BS141
Replace Component No.
24, 25 & 27 as a SET
Seat
SET/RP
25
27
Nylon Slider
SLD/NY/RP
Paper Seal
SEL/R/RP
24
O Ring
ORG/BS115
37
O Ring
ORG/BS614
11
O Ring (37) is assembled
over Slider Guide (38)
O Ring (11) is assembled
into Seal Support (40)
Fig. 11
Fig. 13 Fig. 14
Fig. 12

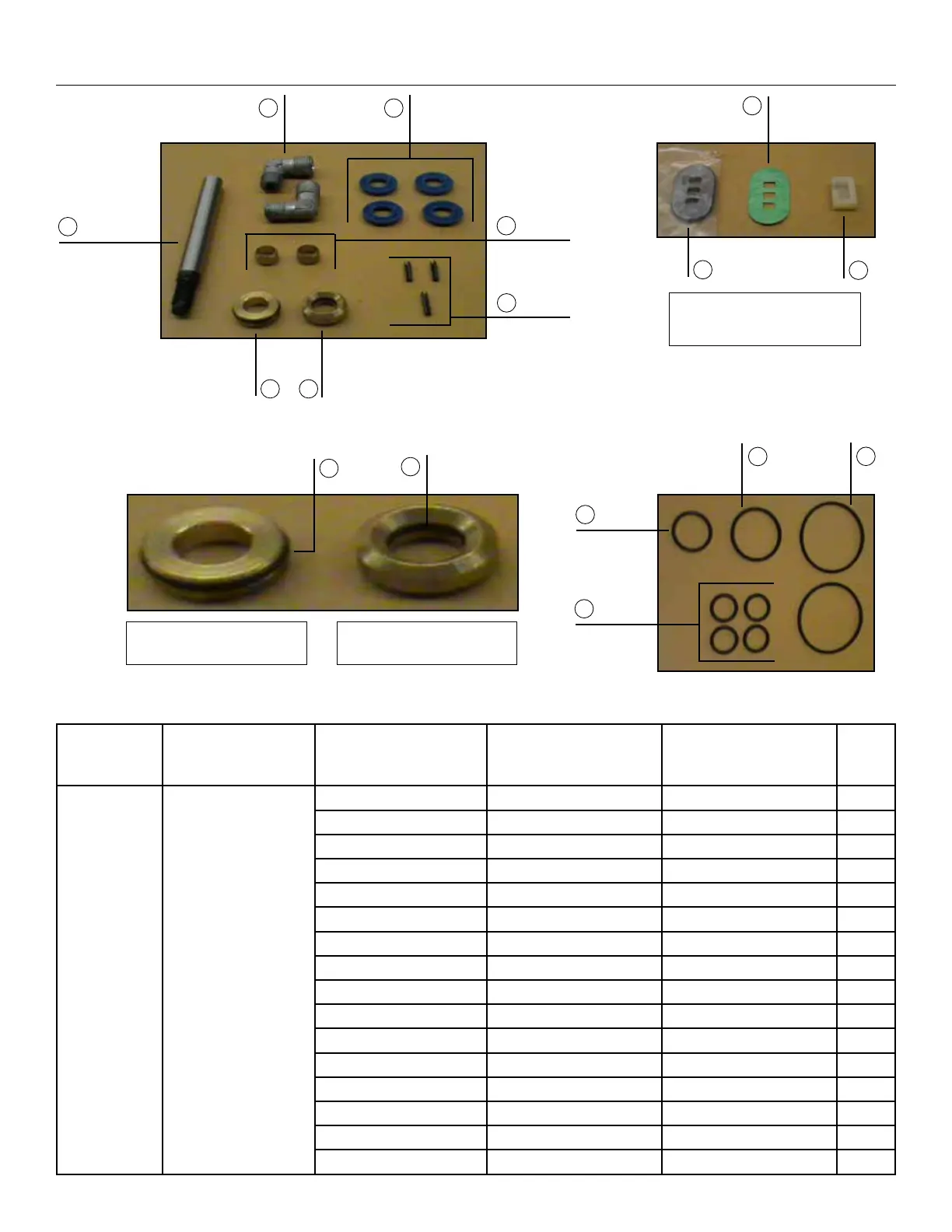

SERVICE PARTS PROGRAM (Drive Section Kit - KIT/TP/RP-G)
Table 6
