Installation
33 | 84
BA-118940_en_035_GENODOS
-GP.docx

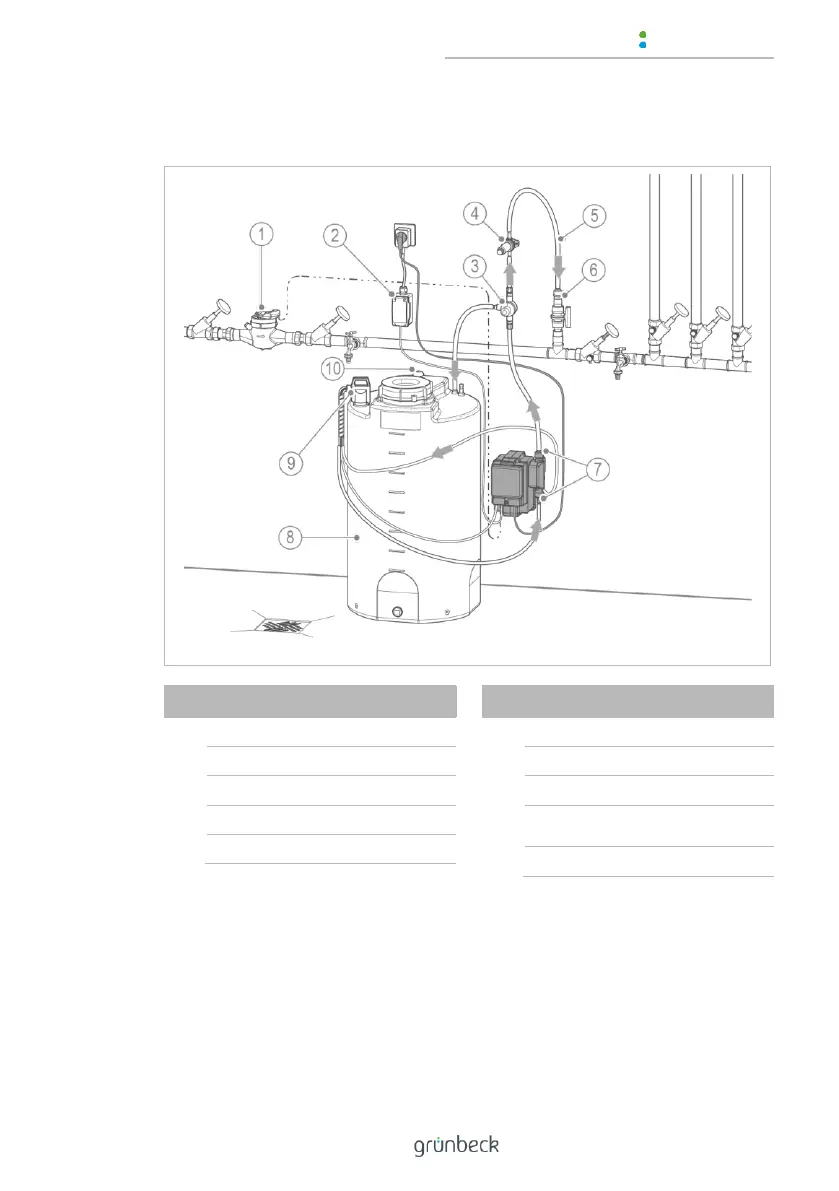

Installation example: Wall mounting
Designation
1
Contact water meter
2
Digital time control
3
Overflow valve
4
Pressure maintaining valve
5
Dosing line
Designation
6
Dosing point (dosing group)
7
Connection kit
8
Dosing tank with hand mixer
9
Suction lance with suction and
return pipe
10
Hand mixer
