5.4 Connecting the lines
The return pipe must be led back to the dosing tank. The hoses
must be laid without kinks.

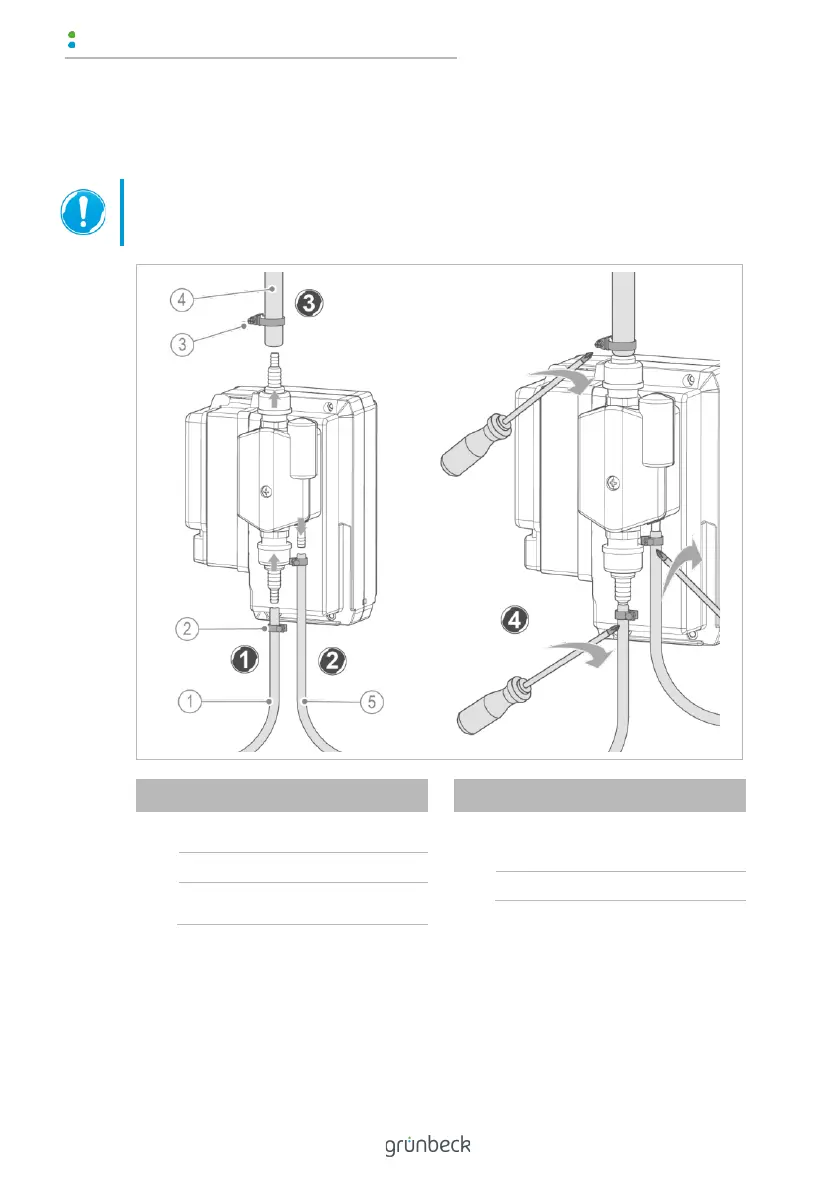

Designation
1
Suction pipe from the dosing
tank
2
Hose clamp NORMA S10/9
3
Worm drive hose clip NORMA
8–16/9
Designation
4
Pressure pipe to the overflow
valve and dosing point (acces-
sories)
5
Return pipe to dosing tank
1. Attach the suction pipe to the lower connection.
2. Attach the return pipe to the rear connection (Ø 6 mm).
3. Attach the dosing line to the upper connection.
4. Fasten the lines with suitable clamps.
