5 Installation
The installation of the system represents a major intervention into
the water system and only a qualified specialist may install these
systems.

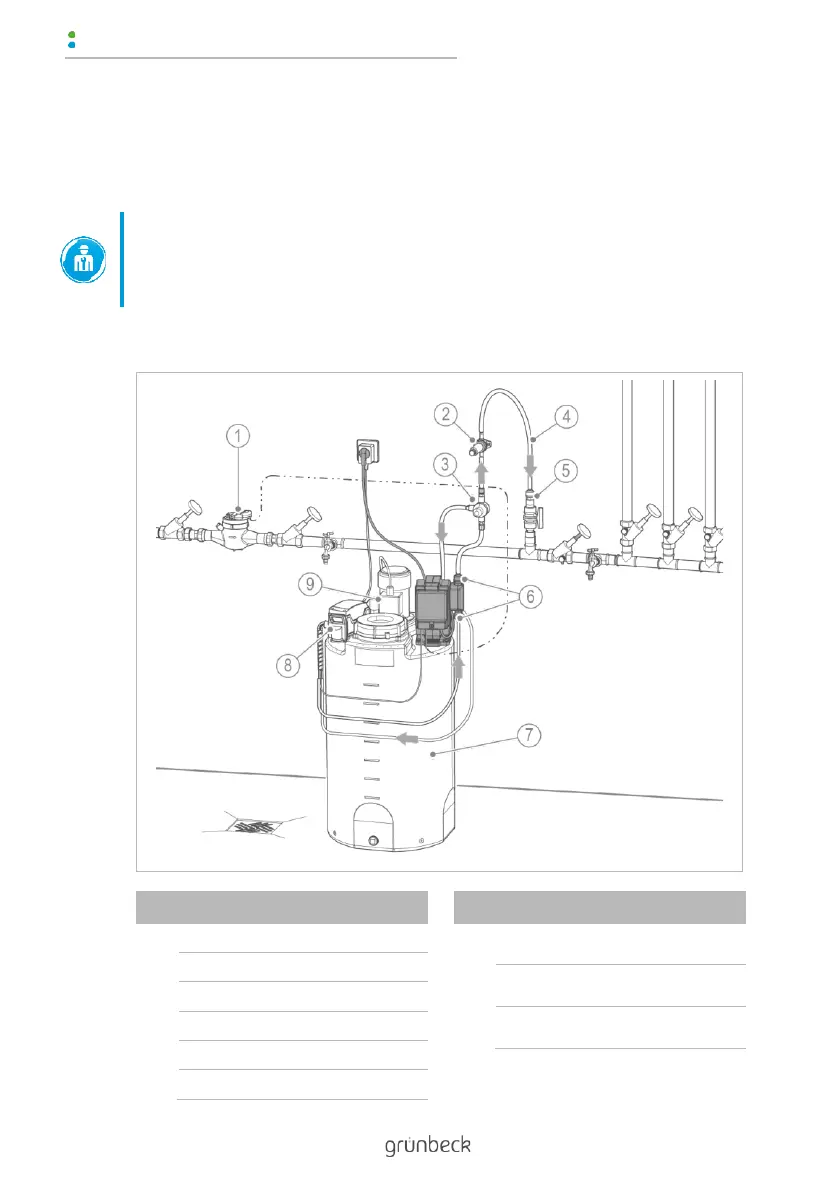

Installation example: Installation on dosing tank
Designation
1
Contact water meter
2
Pressure maintaining valve
3
Overflow valve
4
Dosing line
5
Dosing point (dosing group)
6
Connection kit
Designation
7
Dosing tank with automatic agi-
tator
8
Suction lance with suction and
return pipe
9
Automatic agitator with control
unit
