5.2 Checking the scope of supply
The scope of supply varies depending on the GENODOS pump:
GP-../10, GP-../25 or GP-../40.

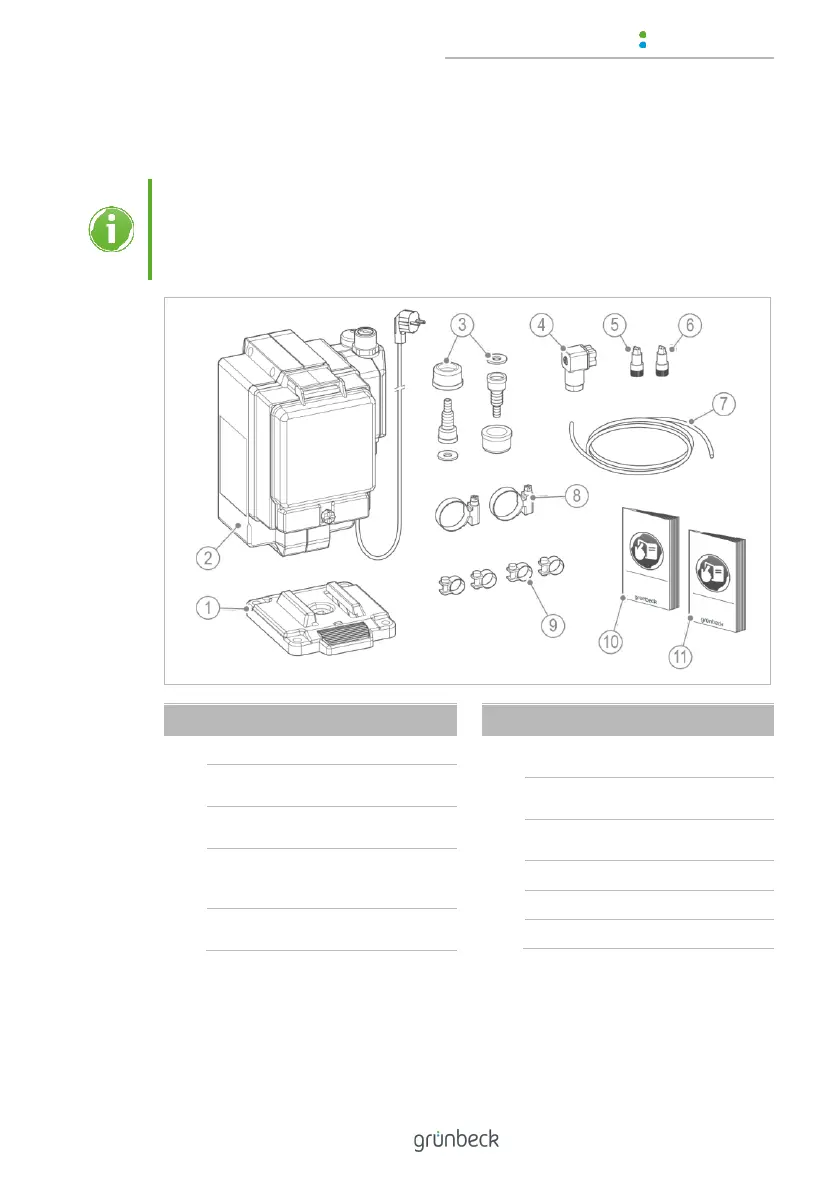

Shown here as an example of the full scope for GP-../40.
Designation
1
Base plate
2
GENODOS-Pump GP pump
with pump head
3
Connection kit D 6-12, G5/8
(2x)
4
Line socket 3-pole with Pg 7
screw connection (voltage-free
fault signal)
5
Coupling socket 4-pole, red (ex-
ternal input)
Designation
6
Coupling socket 3-pole, black
(empty signal)
7
Recirculation hose Ø 6/9; PVC
crystal clear, 1500 mm long
8
Worm drive hose clip NORMA
8–16/9
9
Hose clamp NORMA S10/9
10
Operation manual
11
Technical information
► Check the scope of supply for completeness and damage.
