Grunbeck GENODOS-Pump GP - Establishing Contact Connections

Start-up
45 | 84
BA-118940_en_035_GENODOS
-GP.docx
6.1 Establishing contact connections
The contacts must be pre-assembled (refer to chapter 3.2.4).
Designation
1
Screw plug
2
Cover
Designation
3
Blind plug
4
Contact sleeve

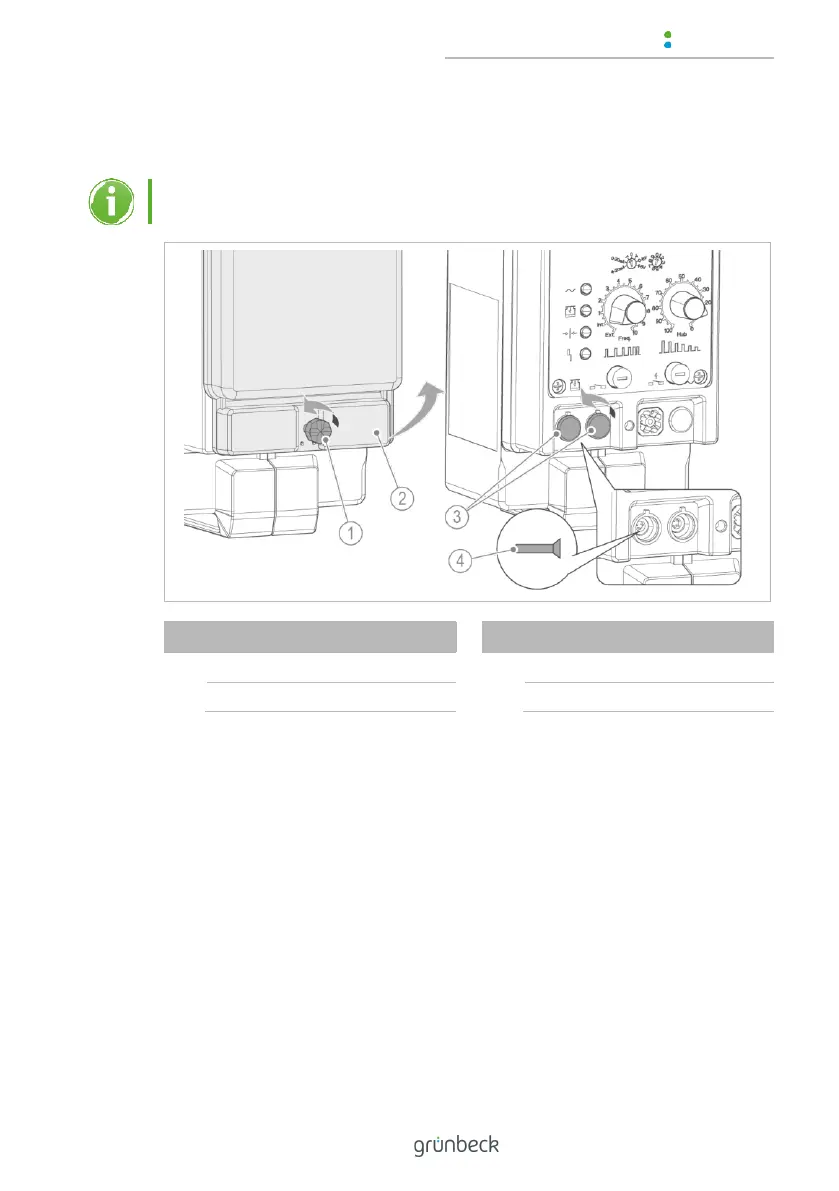

1. Loosen the screw plug – turn counter-clockwise.
2. Lift up the cover.
3. Unscrew the blind plugs.
4. Remove the contact sleeve.
