6.1.1 Establish contacts

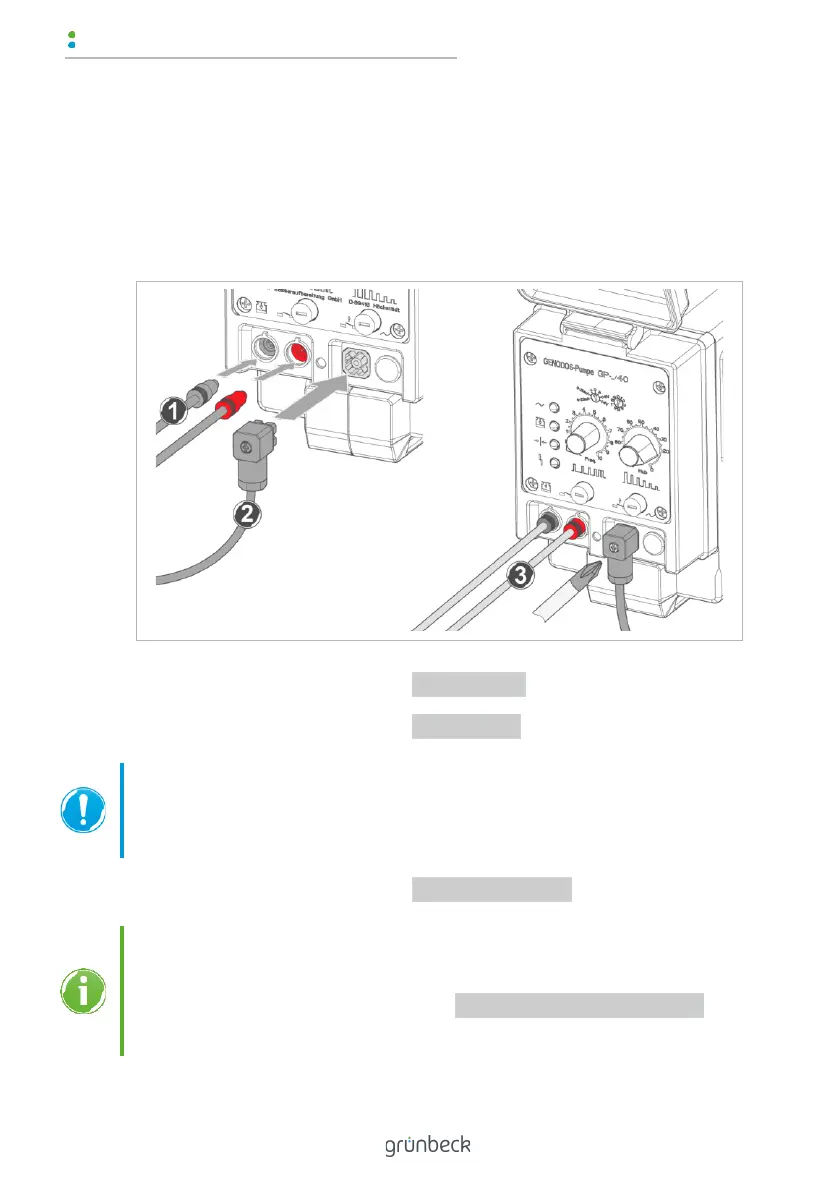

► Connect the pump to the required contacts – depending on
the design of the pump and dosing system (refer to chapter
3.2.4).
1. Establish the contact for empty signal.
2. Establish the contact for alarm signal.
When using "external activators", do not connect the contact (4-
pole in red) until the functional and leakage check has been carried
out (refer to chapter 6.1.2).
3. Establish the contact for external actuation.
If the dosing pump is internally actuated, the connector plug (4-pole
in red) must be unplugged.
Exception: In case of actuation with external operational release by
timer (refer to chapter 6.1.2.1).
