4. Service tools
4.1 Standard tools
4.2 Torque tools

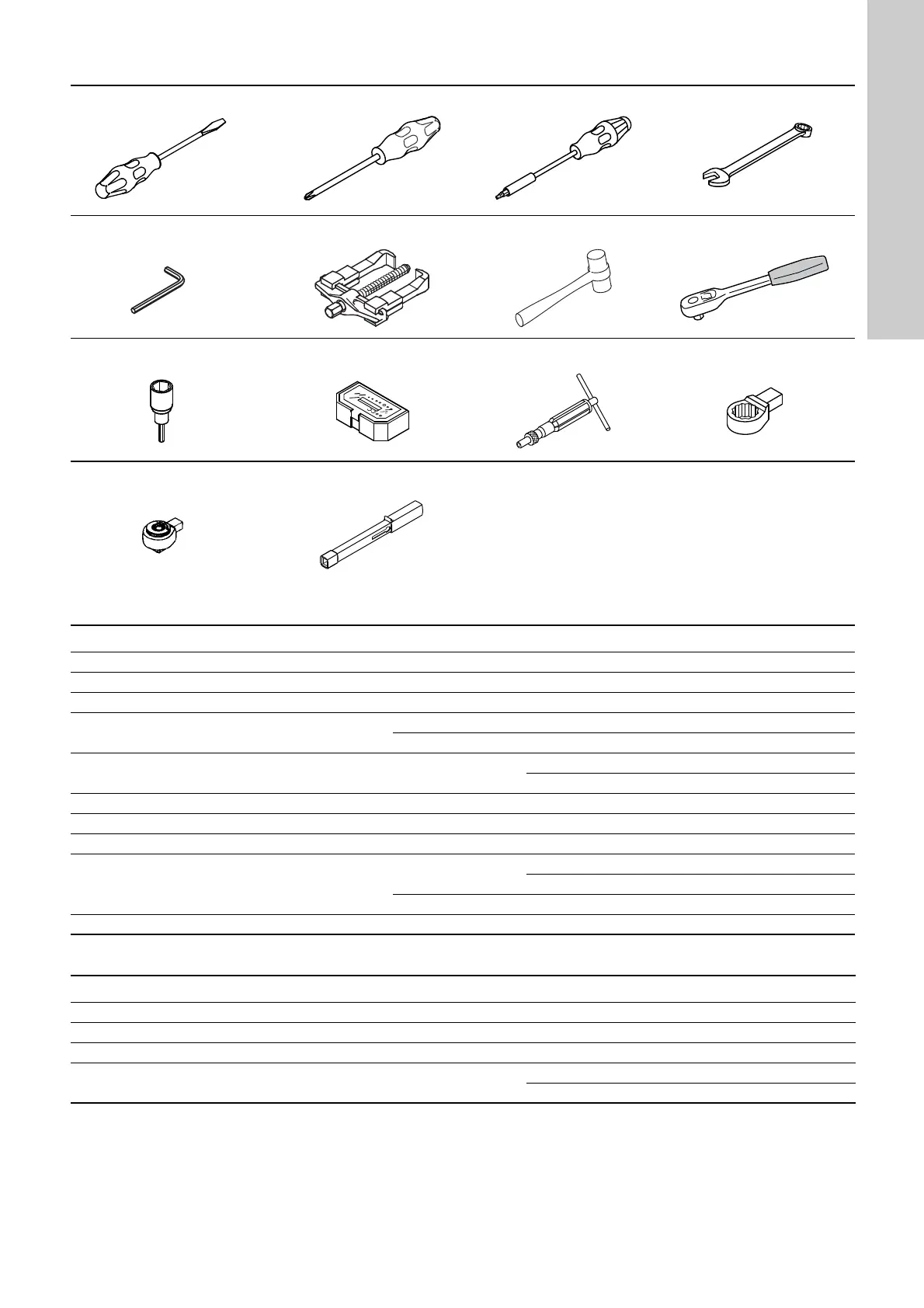

ABCD
EFGH
IJKL
MN
Pos. Designation For pos. Further information Part number
A Screwdriver 103, 156 - SV0803
B Cross-head screwdriver 181 Ph2 x 100 SV0279
C Torx screwdriver J TX30 x 115 mm SV0335
D Ring/open-end spanner
64c 15 mm -
67 13 mm SV0055
E Hexagon key 26
5 mm -
6 mm SV0196
F Puller for bearing 153, 154 - -
G Plastic hammer 156 - SV0349
H Ratchet handle 156 - 96777072
I Hexagon head driver
26
M6 - 5 mm SV0296
M8 - 6 mm SV0297
181 M5 - 4 mm -
J Bits kit 28g, 152, 181 - SV2010
Pos. Designation For pos. Further information Part number
K Torque screwdriver J 1-6 Nm SV0438
L Ring insert tool N 13 mm - 9 x 12 mm SV0294
M Ratchet insert tool I 9 x 12 mm - 1/2" SV0295
N Torque wrench L, M
9 x 12 mm - 4-20 Nm SV2092
9 x12 mm - 20-100 Nm SV0269
