Grundfos CM series Service Instructions

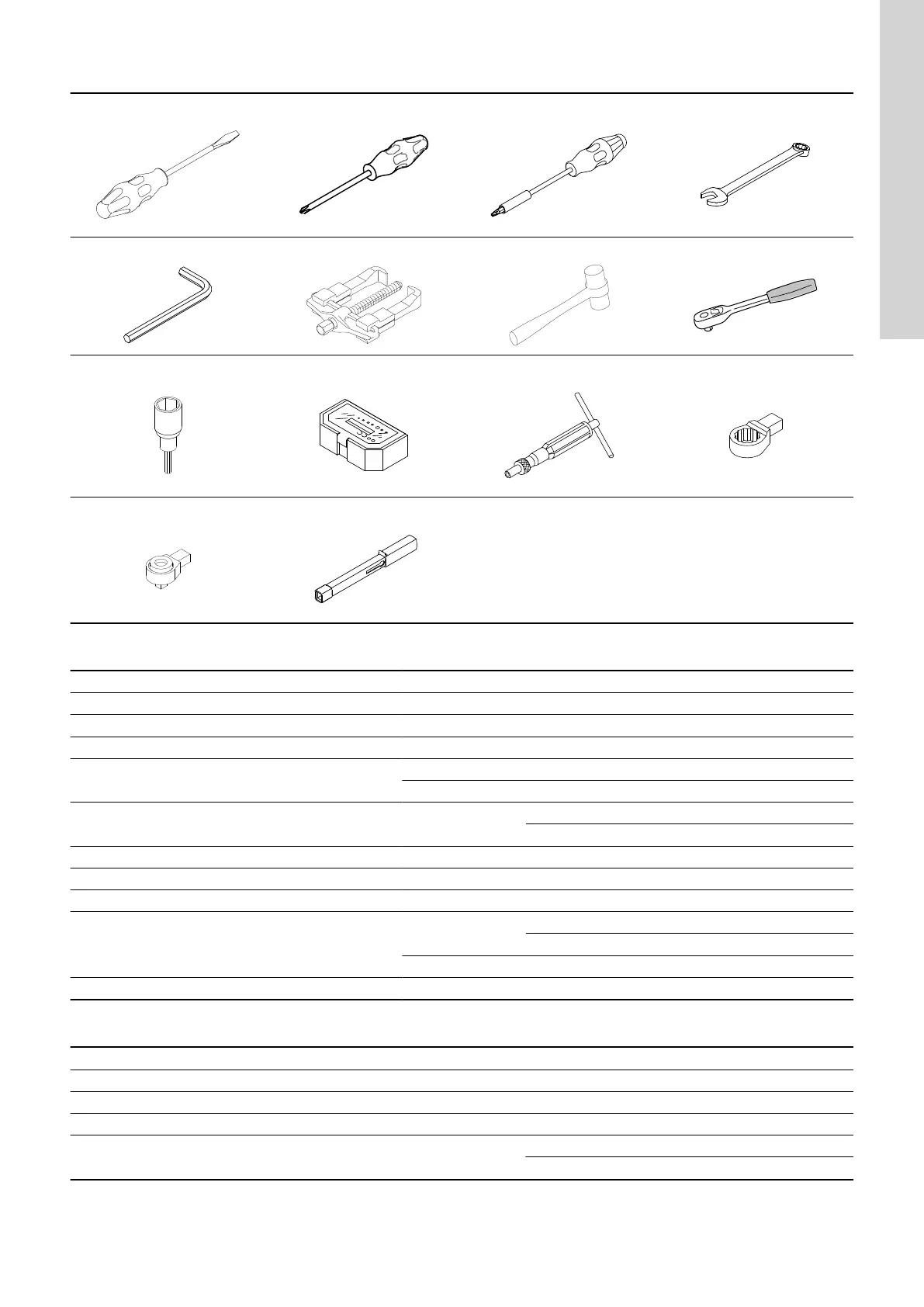

4. Service tools
A B C D
E F G H
I J K L
M N
4.1 Standard tools
Pos. Designation For pos. Further information Product number
A Screwdriver 103, 156 - SV0803
B Cross-head screwdriver 181 Ph2 x 100 SV0279
C Torx screwdriver J TX30 x 115 mm SV0335
D Ring/open-end spanner
64c 15 mm -
67 13 mm SV0055
E Hexagon key 26
5 mm -
6 mm SV0196
F Puller for bearing 153, 154 - -
G Plastic hammer 156 - SV0349
H Ratchet handle 156 - 96777072
I Hexagon head driver
26
M6 - 5 mm SV0296
M8 - 6 mm SV0297
181 M5 - 4 mm -
J Bits kit 28g, 152, 181 - SV2010
4.2 Torque tools
Pos. Designation For pos. Further information Product number
K Torque screwdriver J 1-6 Nm SV0438
L Ring insert tool N 13 mm - 9 x 12 mm SV0294
M Ratchet insert tool I 9 x 12 mm - 1/2" SV0295
N Torque wrench L, M
9 x 12 mm - 4-20 Nm SV2092
9 x12 mm - 20-100 Nm SV0269
9
English (GB)

Grundfos CM series Specifications

General

Enclosure Class	IP55
Impeller Material	Stainless steel
Type	Centrifugal
Material	Cast iron or stainless steel (various grades depending on model)
Motor range	0.37 kW to 4 kW (depending on model)
Applications	Water supply, Industrial processes
Maximum Operating Pressure	10 bar
Installation	Horizontal or Vertical
Stages	Multi-stage
Motor Power	0.37 kW to 4 kW (depending on model)
Speed	2900 rpm
Power supply	1 x 220-240 V, 50/60 Hz or 3 x 220-240/380-415 V, 50/60 Hz (depending on model)
