Grundfos CME Series Service Instructions

5.3 CM 1, 3, 5, stainless steel
5.3.1 Dismantling
1. Remove staybolts (pos. 26).
2. Remove clamping flange (pos. 6a) and sleeve (pos. 16).
3. Remove chamber (pos. 4e).
4. Hold clamp (pos. 64c), and remove nut (pos. 67).
5. Remove lock washers (pos. 66) and clamp (pos. 64c).
6. Remove impeller (pos. 49).
7. Remove bearing ring (pos. 47a) and short spacing pipe (pos.
64a).
Step 7 applies only to pumps with eight or more
stages.
8. Remove chamber for bearing (pos. 4a), impeller (pos. 49) and
spacing pipe (pos. 64).
Step 8 applies only to pumps with eight or more
stages.
9. Continue the dismantling until shaft seal (pos. 105).
10. Remove shaft seal (pos. 105).
TM044327

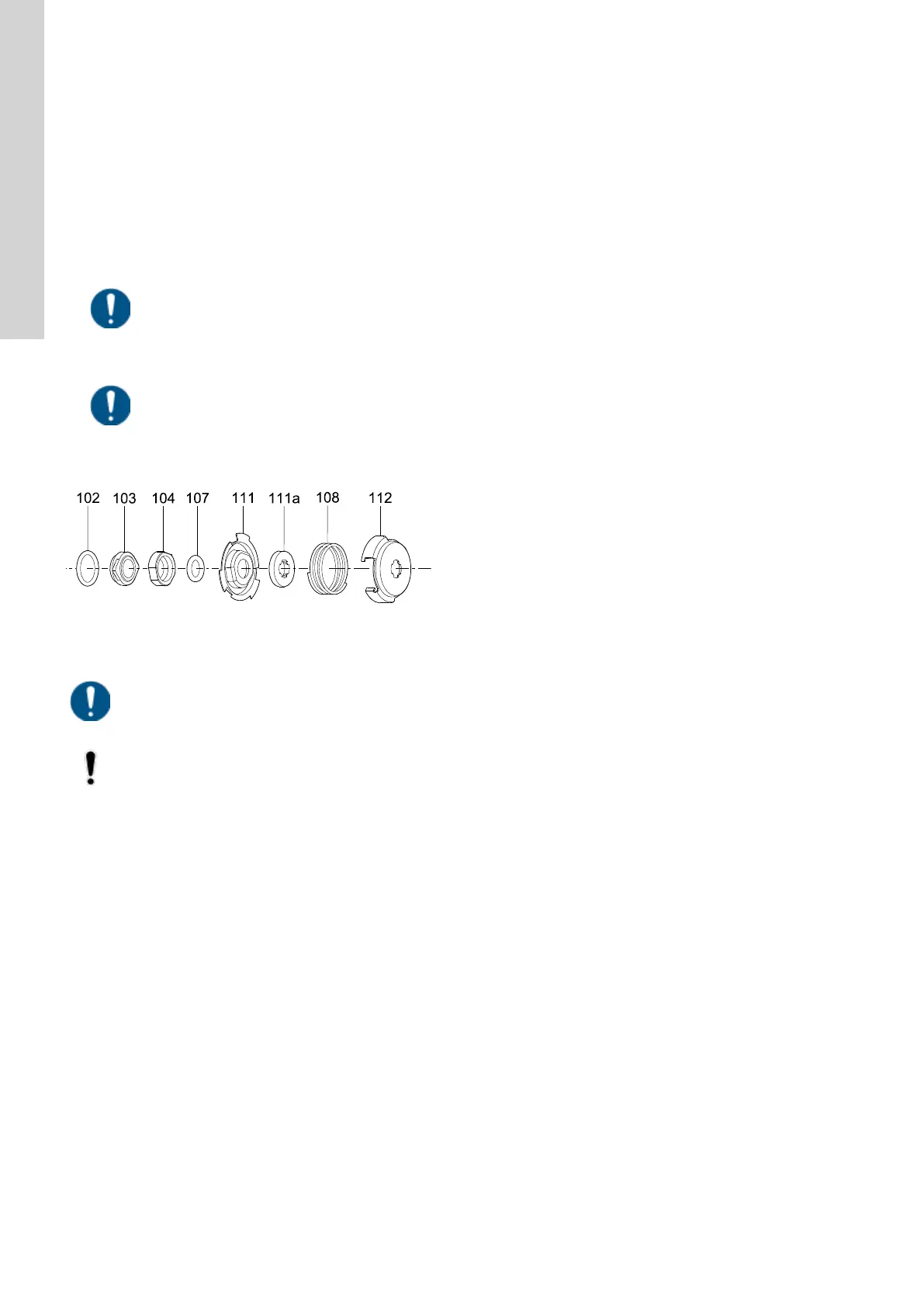

Exploded view of shaft seal
11. Remove O-ring (pos. 31) and cover plate (pos. 32).
Dismantling of MG 71 and MG 80, see the section on dis-
mantling.
Dismantling of MG 90 and MG 100, see the section on
dismantling.
It is advisable always to replace wear rings (pos. 45) and
wear ring retainers (pos. 65). See the section on checking
and replacing impellers and chambers.
Related information
5.6.1 Dismantling
5.7.1 Dismantling
5.8 Checking and replacing impellers and chambers
12
English (GB)

Grundfos CME Series Specifications

General

Type	Centrifugal Pump
Power Supply	Electric
Maximum Operating Pressure	10 bar
Housing Material	Stainless steel
Impeller Material	Stainless steel
Material	Stainless Steel
Applications	Water boosting, industrial applications, domestic water supply, irrigation, pressure boosting in buildings
Pumped Liquid	Clean water
Approvals	CE
Seal Type	Mechanical Seal
Pressure Rating	PN10
