Grundfos CME Series Service Instructions

2. Type identification
This section shows the nameplate, the type key and the codes that can appear in the variant code.
As codes can be combined, a code position may contain more than one code (letter).

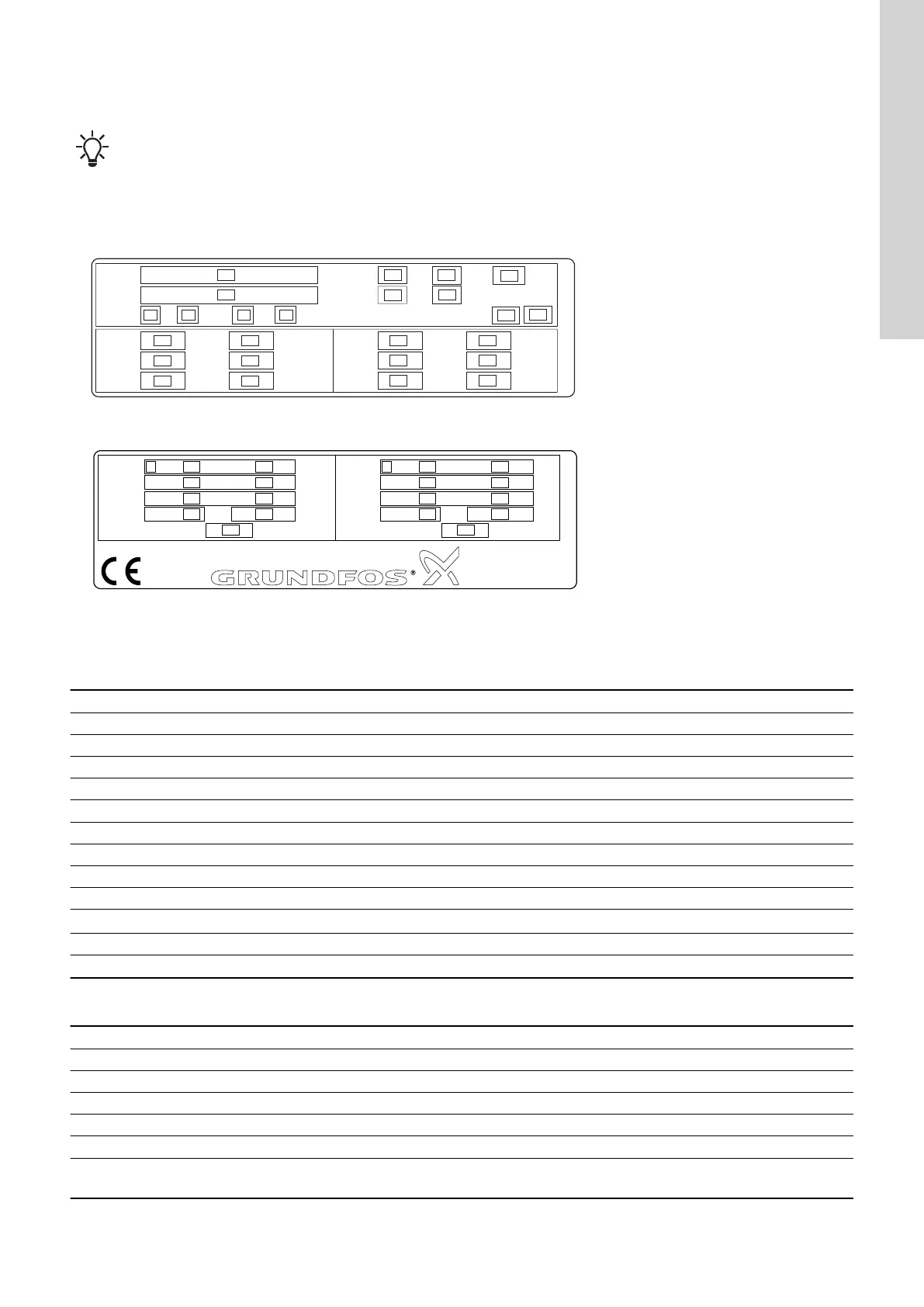

2.1 Nameplate
Model
IP
T
Type
P
max
T
liq,max
bar
MPa
PSI
Q nom
H nom
H max
m³/h GPM
Env
m
m
PSI
PSI
Q nom
H
nom
H max
m³/h GPM
m
m
PSI
PSI
°C
°F
50 Hz
95120839
60 Hz
3
4
5
5
6
7
7
8
9
10 10
11 11
12 12
6
6
1
10
11
12
10
11
12
2
Amb
°C
°F
Insulation class
TM040355
Pump nameplate
I max
~ / V
/ A
/ A
uF / V
kW
95120836
I 1/1
P2
I max
~ / V
/ A
/ A
I 1/1
P2
Capacitor
HP kW HP
uF / V
Capacitor
50 Hz 60 Hz
1 12
3
4
5
2
3
4
5
2
3
4
5
2
3
4
5
6 6
TM040356
Motor nameplate
The pump and motor nameplates are positioned on the motor fan cover or terminal box.
The data and information on the pump nameplate are described in the table below.
Pos.
Description
1 Pump type
2 Pump model
3 Environmental rating for enclosures based on NEMA type designations
4 Enclosure class
5 Maximum ambient temperature [°C] / [°F]
6 Maximum system pressure [bar] / [psi] / [MPa]
7 Maximum liquid temperature [°C] / [°F]
8 Insulation class
9 Motor protection
10
Rated flow [m
3
/h] / [GPM]
11 Head at rated flow [m] / [psi]
12 Maximum head [m] / [psi]
The data and information on the motor nameplate are described in the table below.
Pos.
Description
1 Number of phases
2 Voltage [V]
3 Maximum current [A]
4 Rated current [A]
5 Power output [kW] / [hp]
6
Single-phase pumps only:
Capacitor size [μF] and voltage [V]
5
English (GB)

Grundfos CME Series Specifications

General

Type	Centrifugal Pump
Power Supply	Electric
Maximum Operating Pressure	10 bar
Housing Material	Stainless steel
Impeller Material	Stainless steel
Material	Stainless Steel
Applications	Water boosting, industrial applications, domestic water supply, irrigation, pressure boosting in buildings
Pumped Liquid	Clean water
Approvals	CE
Seal Type	Mechanical Seal
Pressure Rating	PN10
