3. Function
The condensate flows by natural gravitation through
a hose into the lifting station, see section 4. Installa-
tion.
When the liquid level in the collecting tank reaches
60 mm, the pump starts automatically via pressure
switch 1. When the liquid level falls below 35 mm,
the pump stops.
The condensate is pumped through the discharge
hose to the drain.
If the liquid level rises above 80 mm, the alarm
(buzzer) is activated via pressure switch 2 (alarm
pressure switch), and the pump starts (second cut-
in).

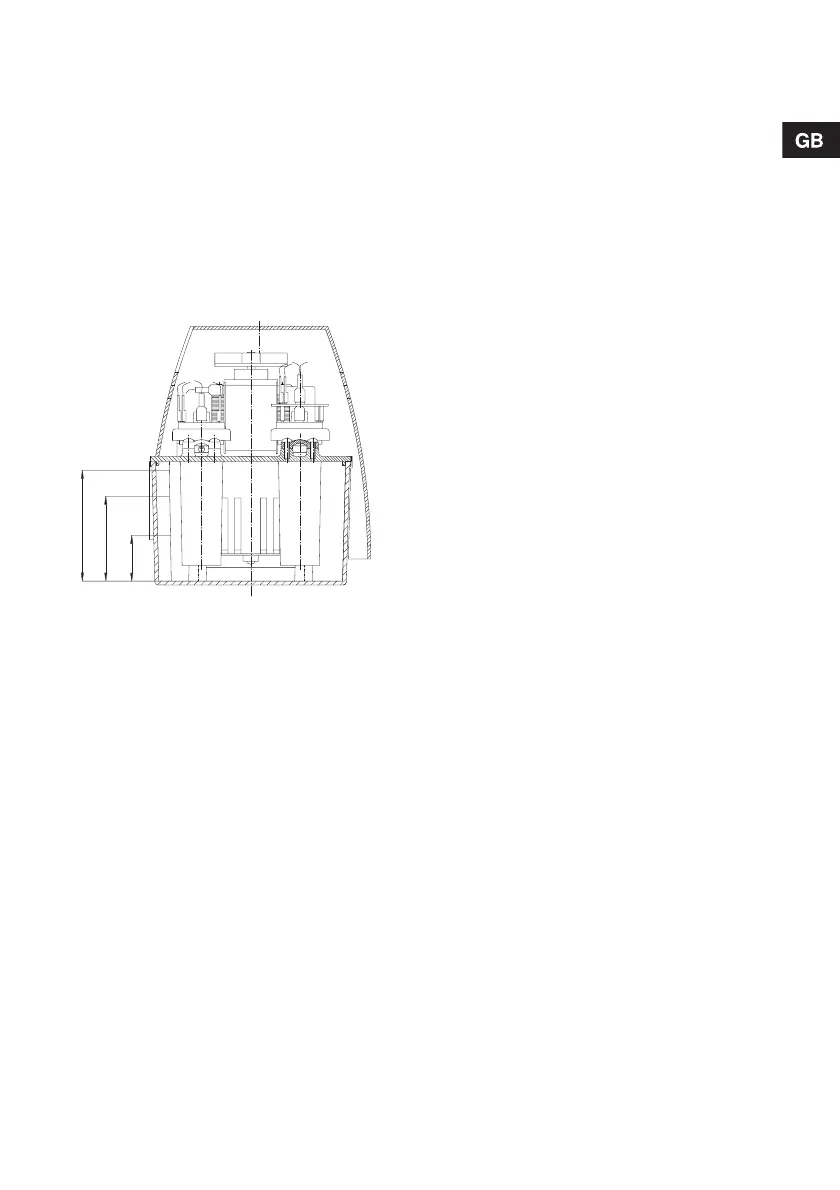

Fig. 1 Stop, start and alarm levels
TM02 7495 1104
3
5
Al
a
r
m
Ein
A
us
8
0
6
0
Alarm
Start
Stop
