Grundfos DDE User Manual

English (GB)
13
3.2 Dimensions
The indicated dimensions are the same for all control variants of the DDE range.
The following drawing shows the DDE-PR control variant.

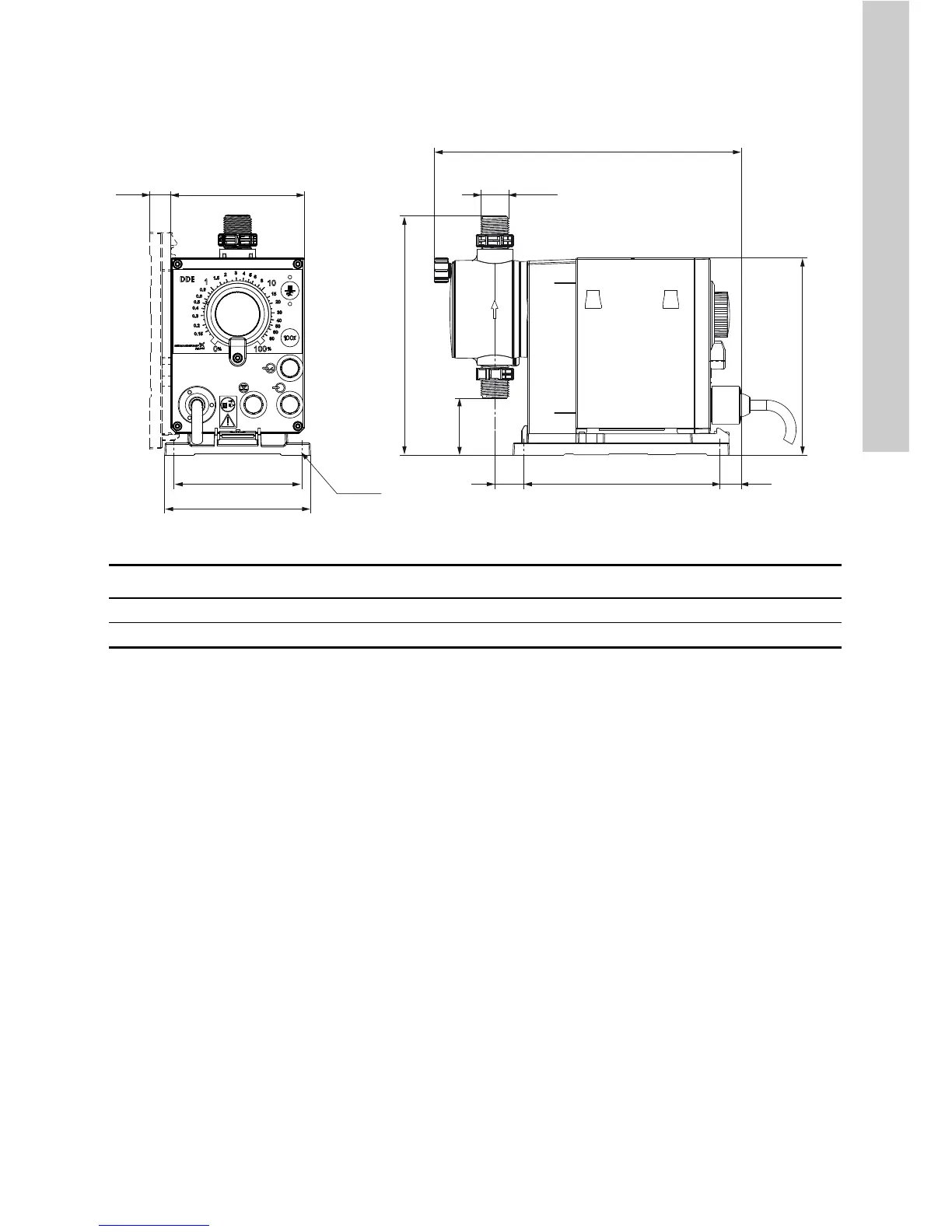

Fig. 3 Dimensional sketch
TM04 1147 5111
110
4 x Ø6
105
120
17.5
A1
B
C
161.5
G 5/8
161D17
Pump type A1 [mm] B [mm] C [mm] D [mm]
DDE 6-10 251 196 46.5 24
DDE 15-4 251 200.5 39.5 24

Grundfos DDE Specifications

General

Pump Type	Diaphragm Dosing Pump
Protection Class	IP65
Control Type	Manual
Power Supply	230 V, 50/60 Hz
Material	PVDF, PTFE, Ceramic
Operating Temperature	0 - 40 °C
Approvals	CE
Ambient Temperature	0 - 40 °C
Dosing Accuracy	< +/- 1 %
