6.21 Input setup

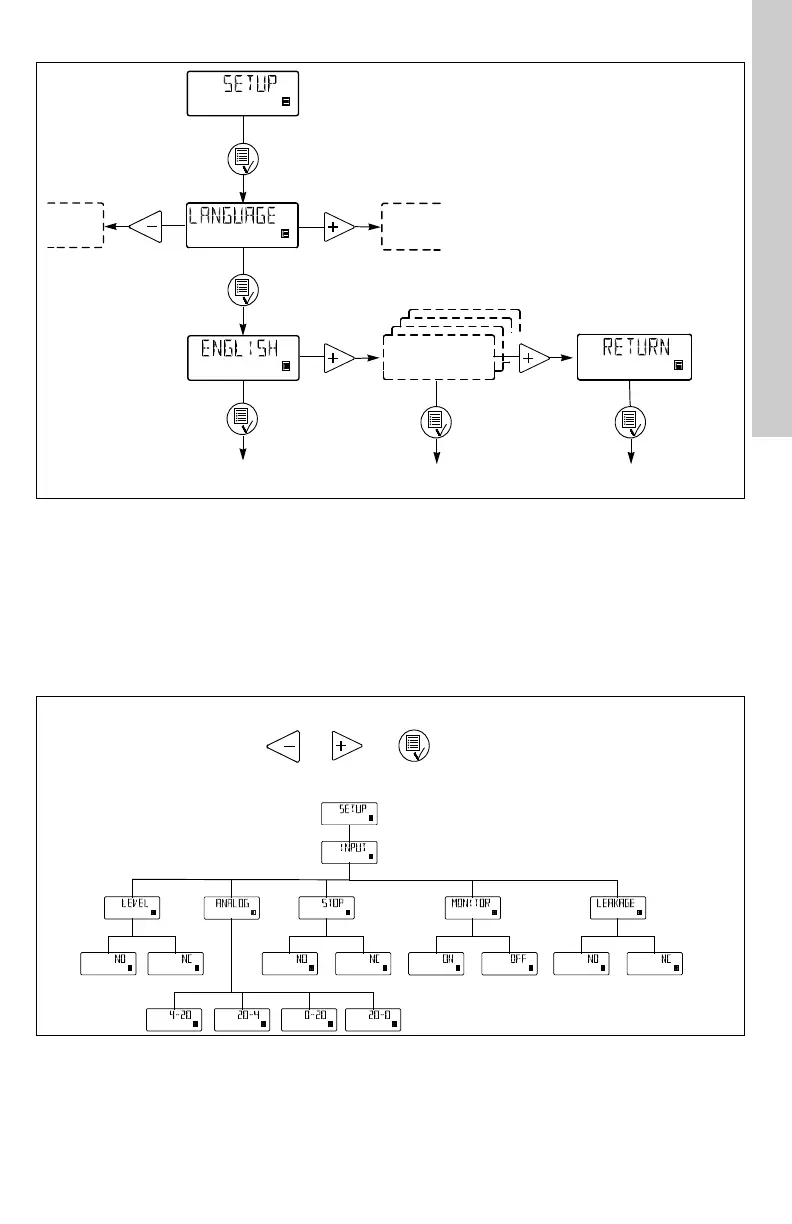

Fig. 23 shows all possible settings.
The inputs for level, stop dosing and diaphragm
leakage can be changed from NO (normally open) to
NC (normally closed) function. If changed, the inputs
must be short-circuited in normal operation.
The dosing monitoring input can be changed from
"OFF" to "ON".
For the analog input, one of the following signal
types can be selected:
• 4-20 mA (default)
• 20-4 mA
• 0-20 mA
• 20-0 mA.
See also section 6.12 Analog.
