English (GB)
14
7.6 Exploded view

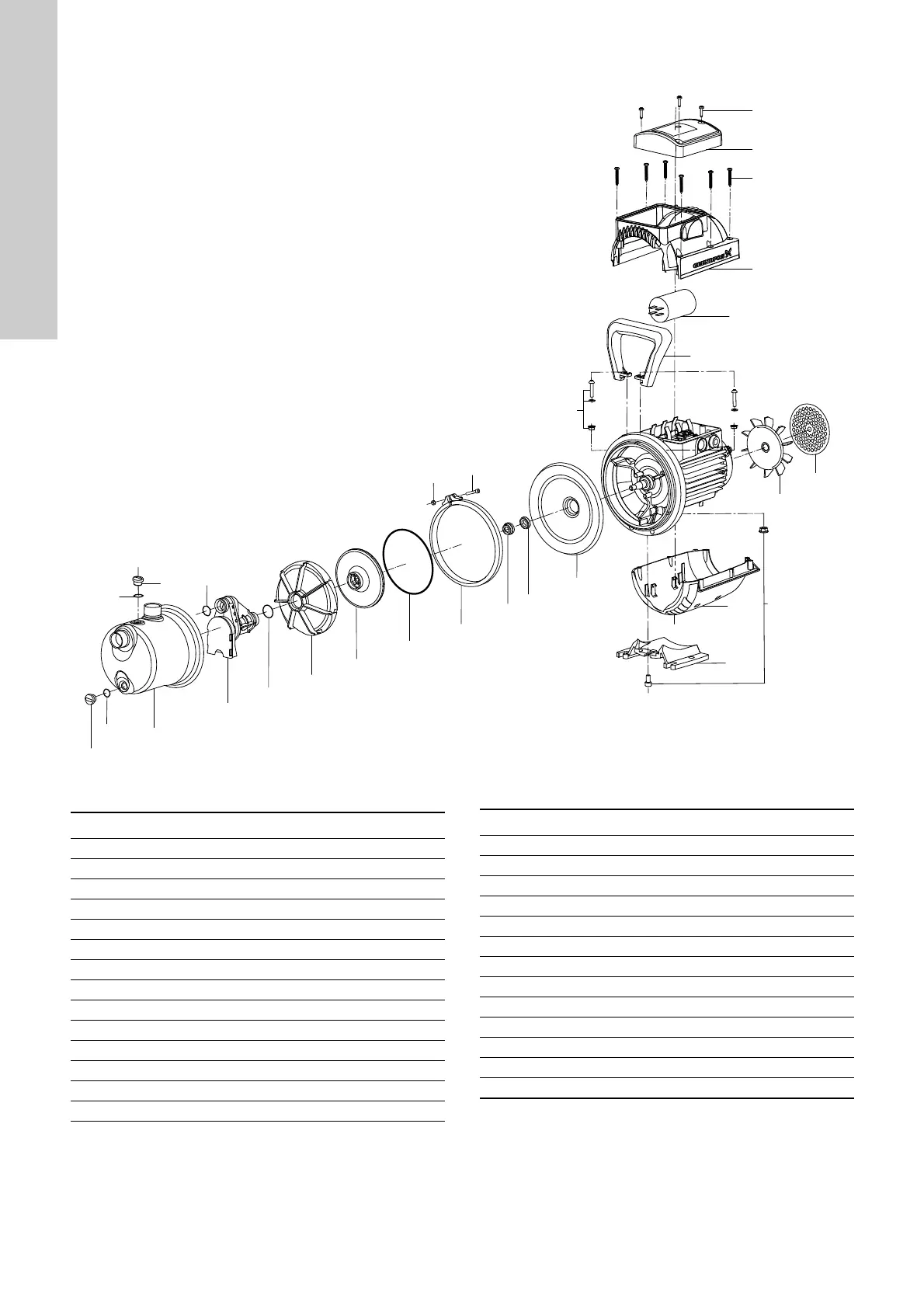

Fig. 37 Exploded view of JP pump
TM07 2748 0719
21
21a
19
28
15
16a
16
43
92
13
1
31
31
20
32
32
94
93
190
23
44
45
52
53
190b
56
42
26
14
Pos. Description
1 Pump housing
13 O-ring
14 Motor fan
15 Seal disc
16 Shaft seal, rotary part
16a Shaft seal, stationary part
19 Impeller
20 Diffuser
21 Venturi tube
21a O-ring
23 Capacitor
26 Screw and nut
28 O-ring
31 Plug
32 O-ring
42 Lower motor shell
43 Shell grid
44 Upper motor shell
45 Screws
52 Terminal box cover
53 Screws
56 Foot
92 Clamp ring
93 Screw
94 Nut
190 Handle
190b Screw, washer and nut
Pos. Description
