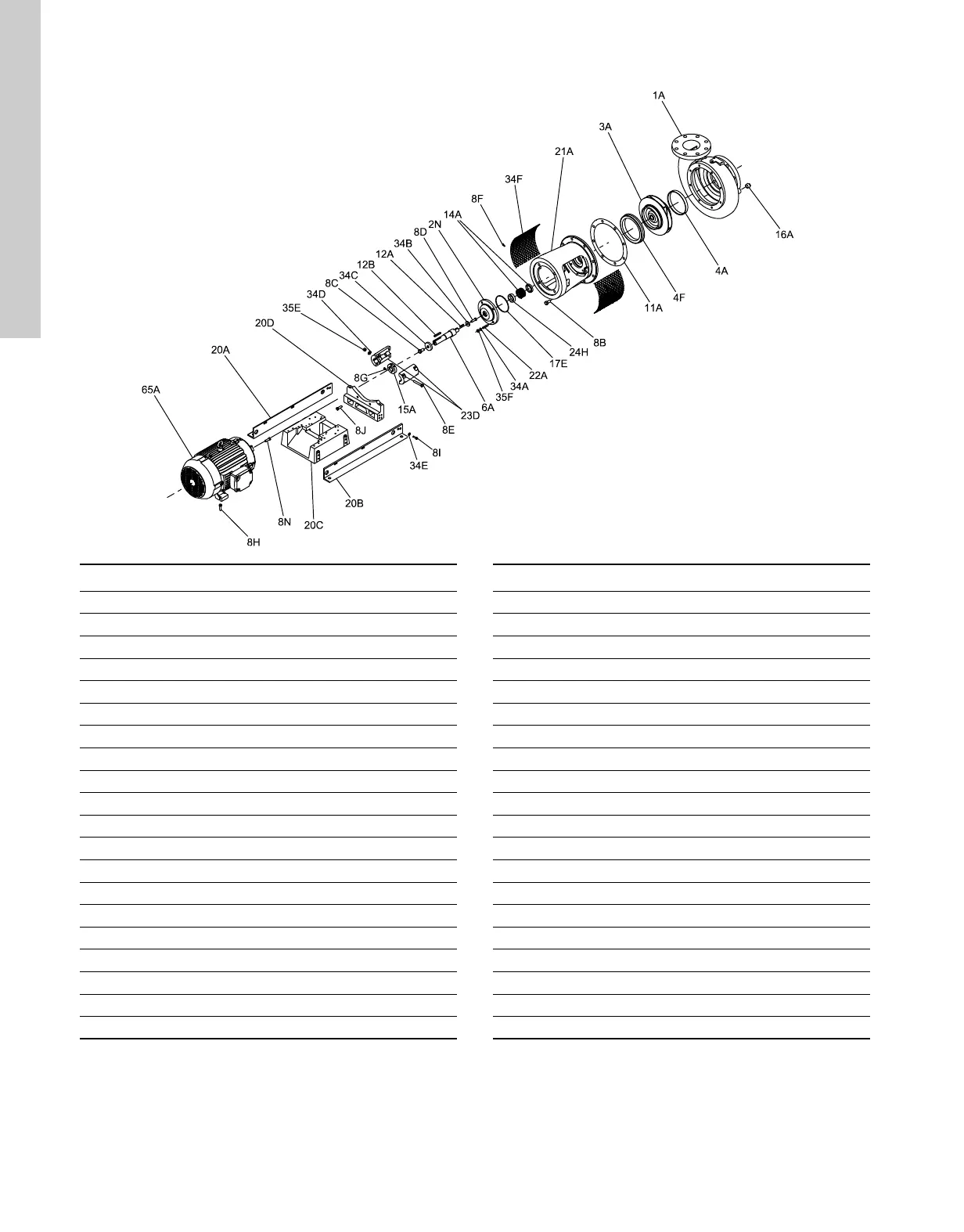

8.10 LCS, exploded view and parts list
TM06 4374 2115
Pos. Description Pos. Description
1A Pump housing 15A Locating ring
2N Shaft seal housing 16A Drain plug
3A Impeller 17E O-ring
4A Wear ring 20 A + 20B Base plate profile
4F Balance wear ring 20C Base plate
6A Pump shaft 20D Pump support
8B Cap screw 21A Motor stool
8C Screw 22A Stud
8D Screw 23D Coupling halves
8E Bolt 24H Bushing
8F Screw 34A Washer
8G Screw 34B Washer
8H Cap screw 34C Washer
8I Cap screw 34D Washer
8J Cap screw 34E Washer
8N Screw 34F Coupling guard
11A Gasket 35E Nut
12A Key 35F Nut
12B Key 65A Motor
14A Shaft seal
