Grundfos Magna Installation And Operating Instruction

5

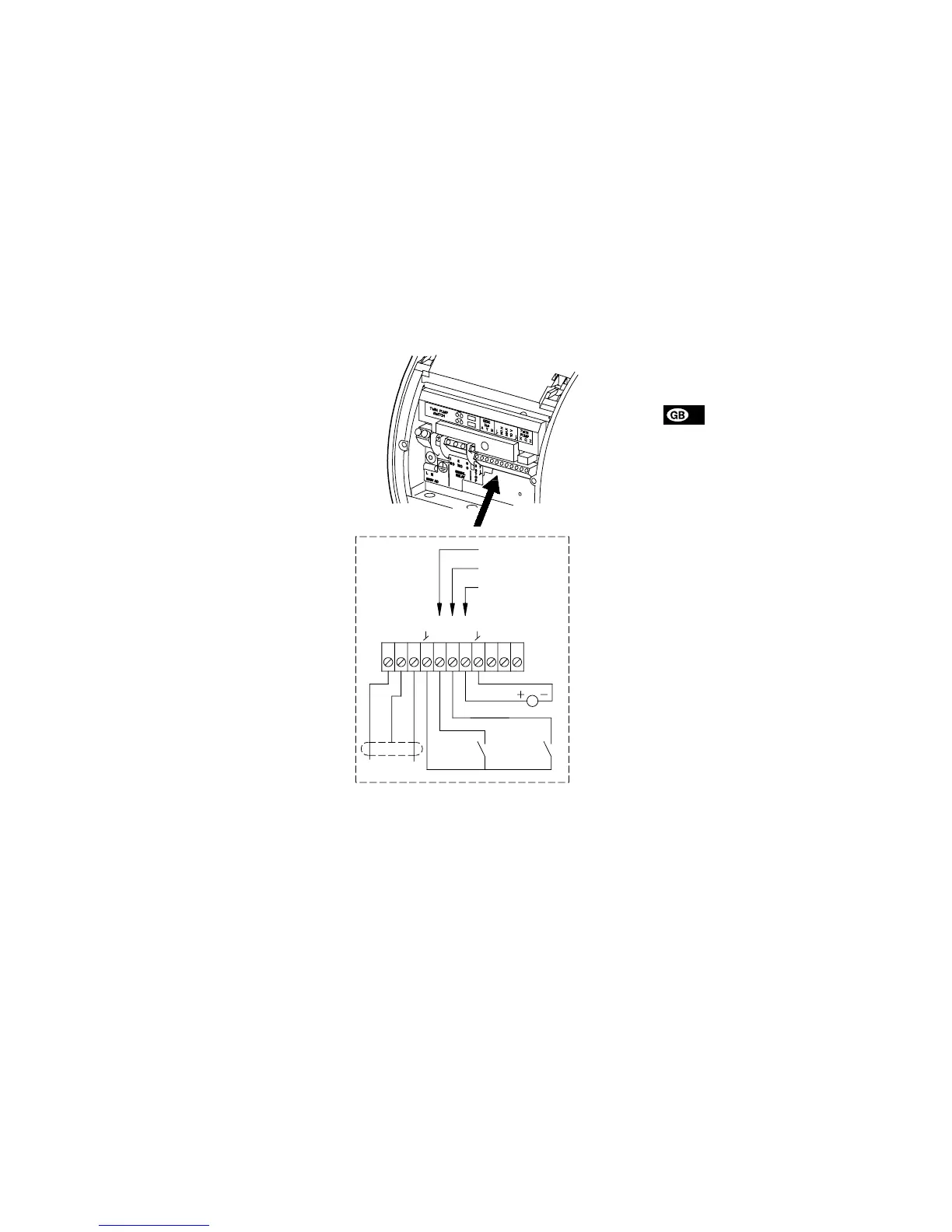

Fig. 1
Connection examples can be found on pages 103 to 106.
3. External analog 0-10 V control
The GENI module has an input for an external 0-10 VDC analog signal trans-
mitter. Via this input, the pump can be controlled by an external controller if
the pump has been set to one of the following control modes:
TM02 0236 0904
4
XQZBYA
MIN
MAX
10 V
5 6 7 9 10 1112 2122 23
Min. curve
Max. curve
Analog 0-10 V
input
Screen
DC 0-10 V
Min. Max.
Bus
Twin-head
pump
signal

Grundfos Magna Specifications

General

Frequency	50/60 Hz
Temperature Range	-10 °C to +110 °C
Type	Circulator Pump
Maximum Operating Pressure	10 bar
Insulation Class	F
Series	Magna
Material	Cast iron
Voltage	1 x 230 V / 3 x 400 V (depending on model)
