9. User interfaces
You can make the motor settings by means of the
following user interfaces:
Control panels
• Basic control panel.
See section 9.1 Basic control panel.
• Standard control panel.
See section 9.2 Standard control panel.
• Advanced control panel.
See section 9.3 Advanced control panel
Remote controls
• Grundfos GO.
See section 9.4 Grundfos GO.
• Grundfos R100 remote control.
See section 9.5 R100 remote control.
If the power supply to the motor is switched off, the
motor settings are stored.
9.1 Basic control panel

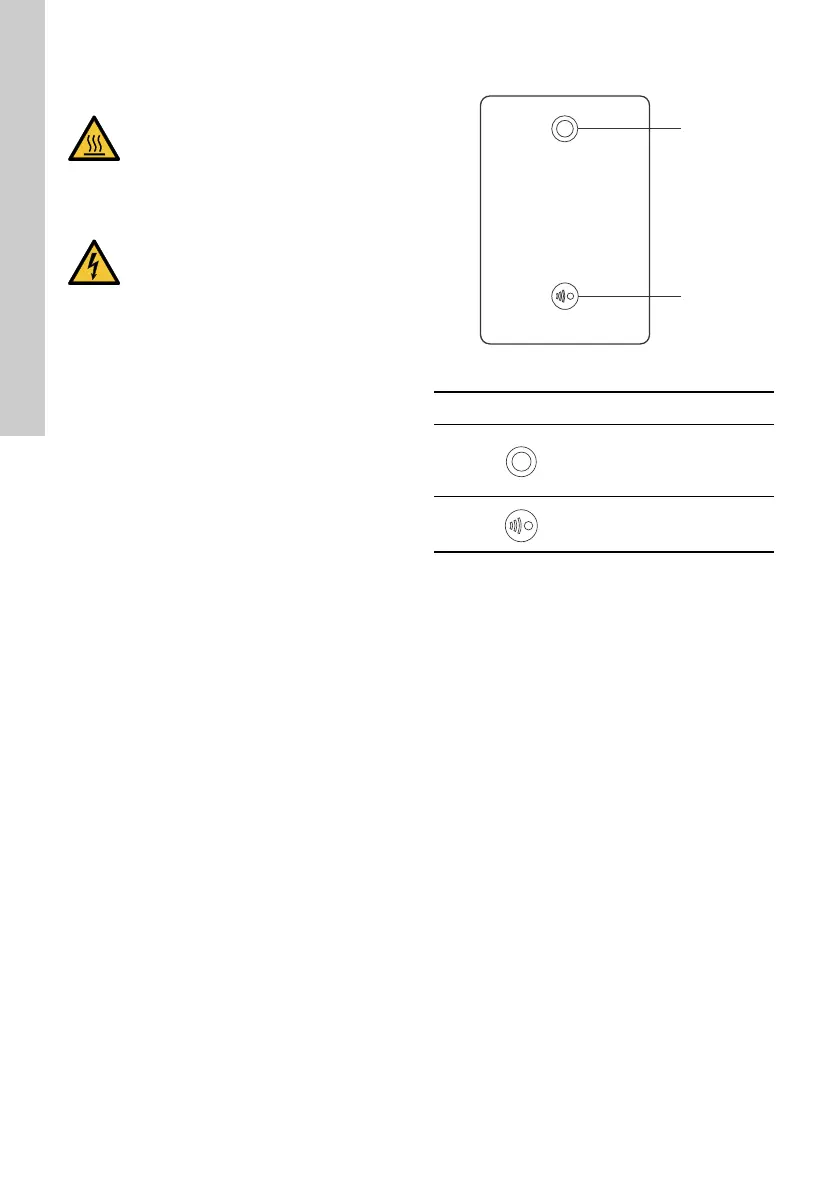

Fig. 17 Basic control panel
9.1.1 Settings
Make all settings with Grundfos R100 or Grundfos
GO.
9.1.2 Resetting of alarms and warnings
You can reset a fault indication in one of the
following ways:
• Via the digital input if it has been set to "Alarm
resetting".
• Switch off the power supply until the indicator
lights are off.
• Switch the external start/stop input off and then
on again.
• With R100.
• With Grundfos GO.
WARNING
Hot surface
Death or serious personal injury
- Only touch the buttons on the display as
the product may be very hot.
WARNING
Electric shock
Death or serious personal injury
- If the control panel is cracked or
perforated, replace it immediately.
Contact the nearest Grundfos sales
company.
TM05 4847 2712
Pos. Symbol Description
1
Grundfos Eye
Shows the operating status of
the motor.
See section 13. Grundfos Eye.
2
Enables radio communication
with Grundfos GO and other
MGE motors of the same type.
1
2
