9.2 Standard control panel

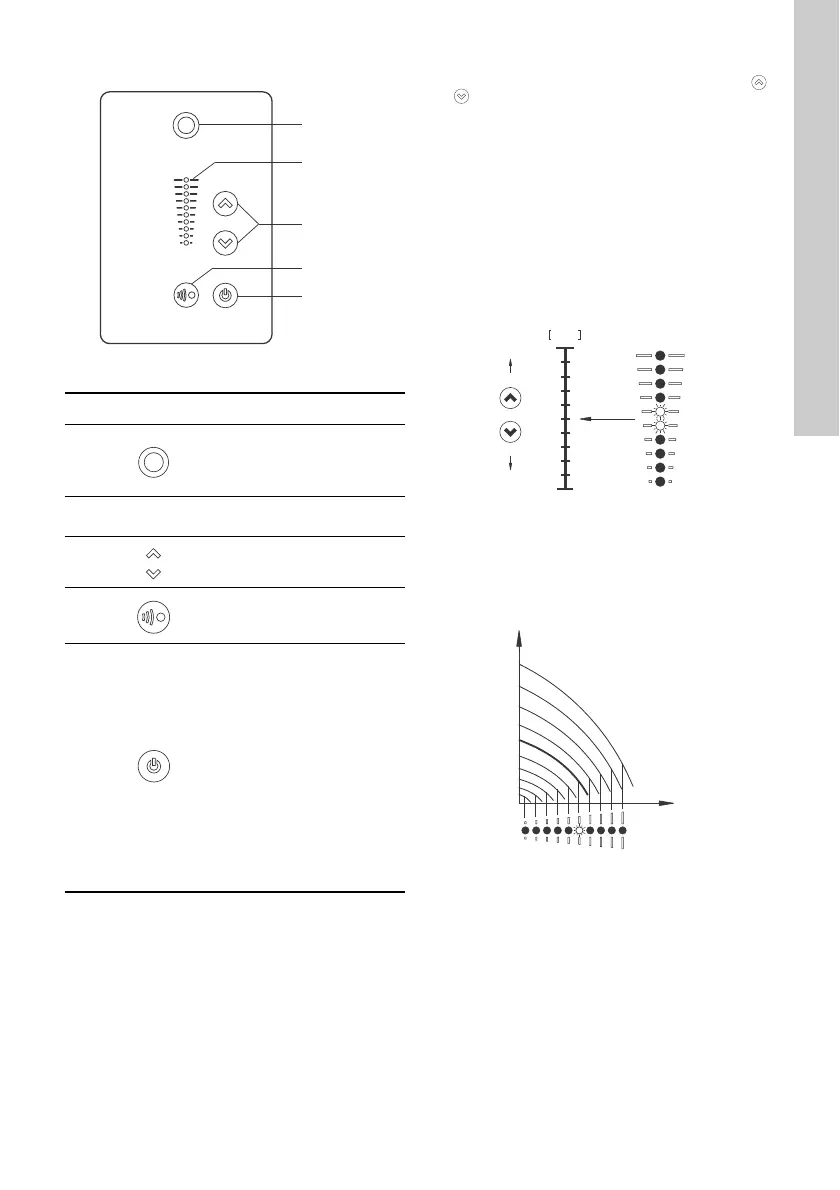

Fig. 18 Standard control panel
9.2.1 Setpoint setting
Set the desired setpoint of the motor by pressing
or . The green light fields on the control panel
indicate the setpoint set.
Motor in controlled-operation mode
The following example applies to a pump in an
application where a pressure sensor gives a
feedback to the pump. The sensor has been set
manually, and the pump does not automatically
register a connected sensor.
Figure 19 shows that the light fields 5 and 6 are
activated, indicating a desired setpoint of 3 bar with
a sensor measuring range from 0 to 6 bar. The
setting range is equal to the sensor measuring
range.
Fig. 19 Setpoint set to 3 bar, pressure-control
mode
Motor in uncontrolled-operation mode
In uncontrolled-operation mode, the motor output
lies between maximum and minimum speed. See fig.
20.
Fig. 20 Motor in uncontrolled-operation mode
TM05 4848 3512
Pos. Symbol Description
1
Grundfos Eye
Shows the operating status of
the motor.
See section 13. Grundfos Eye.
2-
Light fields for indication of
setpoint.
3
Up and down. Changes the
setpoint.
4
Enables radio communication
with Grundfos GO and other
MGE motors of the same type.
5
Makes the motor ready for
operation or starts and stops
motor.
Start
If you press the button when
the motor is stopped, the
motor only starts if no other
functions with higher priority
have been enabled. See
section 12. Priority of settings.
Stop
If you press the button when
the motor is running, the motor
always stops. The "Stop" text
next to the button is on.
1
2
3
4
5
Stop
TM05 4894 3512TM05 4895 2812
0
6
3
bar
H
Q
