13. Grundfos Eye
The operating condition of the motor is indicated by
Grundfos Eye on the motor control panel. See fig.
46, pos. A.
Fig. 46 Grundfos Eye
TM05 4846 2712

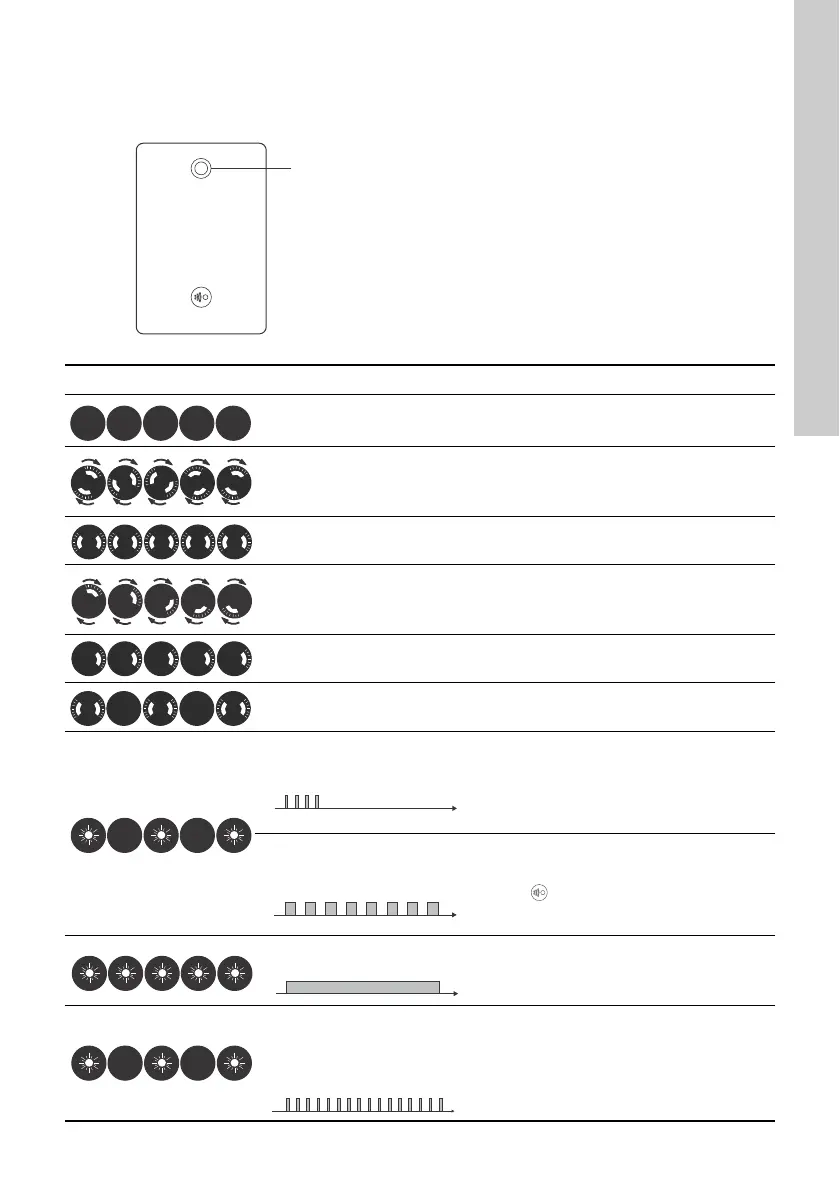

Grundfos Eye Indication Description
No lights are on.
The power is off.
The motor is not running.
The two opposite green indicator
lights are rotating in the direction
of rotation of the motor when
seen from the non-drive end.
The power is on.
The motor is running.
The two opposite green indicator
lights are permanently on.
The power is on.
The motor is not running.
One yellow indicator light is
rotating in the direction of rotation
of the motor when seen from the
non-drive end.
Warning.
The motor is running.
One yellow indicator light is
permanently on.
Warning.
The motor has stopped.
Two opposite red indicator lights
flash simultaneously.
Alarm.
The motor has stopped.
The green indicator light in the
middle flashes quickly four times.
Remote control with Grundfos GO via
radio.
The motor is trying to communicate with
Grundfos GO. The motor is highlighted in
the Grundfos GO display to inform the user
of the location of the motor.
The green indicator light in the
middle flashes continuously.
When you have selected the motor in the
Grundfos GO menu, the green indicator
light in the middle flashes continuously.
Press on the motor control panel to
allow remote control and data exchange via
Grundfos GO.
The green indicator light in the
middle is permanently on.
Remote control with Grundfos GO via
radio.
The motor is communicating with Grundfos
GO via radio connection.
The green indicator light in the
middle flashes quickly while
R100 or Grundfos GO is
exchanging data with the motor.
It takes a few seconds.
Remote control with R100 or Grundfos GO
via infrared light.
The motor is receiving data from R100 or
Grundfos GO via infrared communication.
