English (GB)
6
8. Installation
8.1 Location
If the RMQ unit is installed below sewer level, the
overflow must be connected to a lifting station which
pumps the water up to sewer level in case of
overflow. See also section 8.3 Connection to
overflow.
Place the RMQ unit as follows:
• In a room with floor drain.
• At least 40 cm below the ceiling, measured from
the top of the unit. This distance is necessary to
be able to carry out maintenance and service
work, if required.
• On a plane wall in the vertical position.
8.2 Mounting
• Remove the wall bracket by pulling it downwards
until it disengages from the cabinet.
• Fasten the wall bracket in the horizontal position
using the rawlplugs and screws supplied.
• Mount the RMQ unit on the bracket.
8.3 Connection to overflow
Procedure:
1. Remove the front part of the cabinet. See fig. 3.

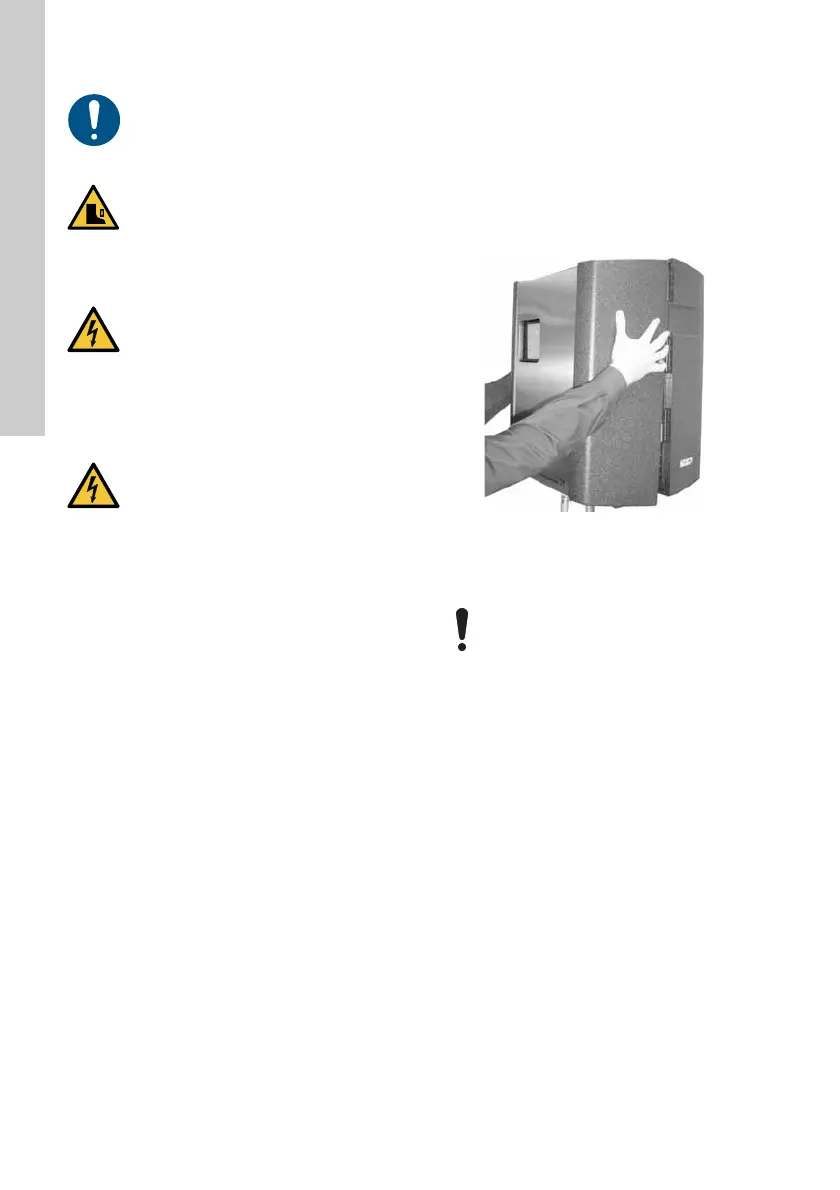

Fig. 3 Removing the front part of the cabinet
2. Connect the socket of a DN 70 pipe to the
overflow pipe of the unit. See fig. 1 (10).
Observe local regulations concerning
limits for manual lifting or handling.
CAUTION
Crushing of feet
Minor or moderate personal injury
- Wear safety shoes when handling the
pump.
DANGER
Electric shock
Death or serious personal injury
- Before starting any work on the product,
make sure that the power supply has
been switched off and that it cannot be
accidentally switched on.
DANGER
Electric shock
Death or serious personal injury
- The protective earth of the socket outlet
must be connected to the protective
earth of the pump. The plug must
therefore have the same PE connection
system as that of the socket outlet. If
not, use a suitable adapter.
TM02 6378 0403
The overflow pipe must be vented under
all conditions; otherwise a vacuum may
form, causing water to be drawn from the
collecting tank.
