8.4 Oil check and oil change
Every 3000 operating hours or at least once a year,
change the oil in the oil chamber as described below.
If the shaft seal has been changed, change the oil as
well.
The table below states the quantity of oil in the oil
chamber.
Draining of oil
1. Loosen and remove both oil screws to allow all
the oil to drain from the chamber.
2. Check the oil for water and impurities. If the shaft
seal has been removed, the oil will give a good
indication of the condition of the shaft seal.
Oil filling, pump lying down
See fig. 11.
1. Place the pump in such a position that it is lying
on the stator housing and the outlet flange and
that the oil screws are pointing upwards.
2. Fill oil into the oil chamber through the upper hole
until it starts running out of the lower hole. The oil
level is now correct.
For oil quantity, see section 8.4 Oil check and oil
change.
3. Fit both oil screws using the gaskets included in
the O-ring service kit. See section 8.9 Service
kits.

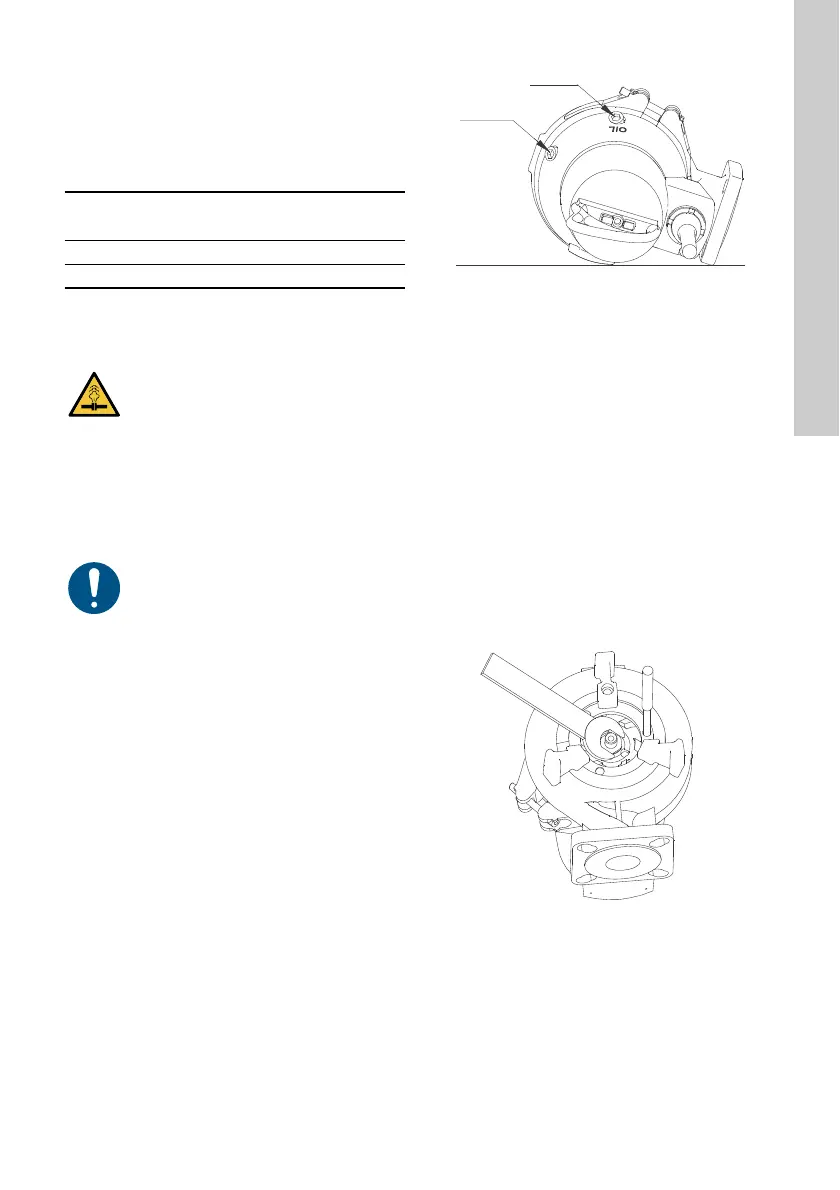

Fig. 11 Oil filling holes
Oil filling, pump in upright position
1. Place the pump on a plane, horizontal surface.
2. Fill oil into the oil chamber through one of the
holes until it starts running out of the other hole.
For oil quantity, see section 8.4 Oil check and oil
change.
3. Fit both oil screws using the gaskets included in
O-ring service the kit. See section 8.9 Service
kits.
8.5 Adjusting the impeller clearance
For position numbers in brackets, see fig, D in
Appendix.
Proceed as follows:
1. Gently tighten the adjusting nut (68) until the
impeller (49) cannot rotate any more. Use a
spanner size 24.
2. Loosen the adjusting nut by 1/4 turn.
Fig. 12 Adjusting the impeller clearance
Pump type
Quantity of oil in the
oil chamber [l]
SEG up to 1.5 kW 0.17
SEG 2.6 to 4.0 kW 0.42
CAUTION
Pressurised system
Minor or moderate personal injury
- As pressure may have built up in the oil
chamber, do not remove the screws
until the pressure has been fully
relieved.
Dispose of used oil in accordance with
local regulations.
TM06 5748 0116TM06 5747 0116
