The total batch volume (e.g. 6.83 l) and the
remaining batch volume still to be dosed are
displayed in the "Operation" menu. During breaks in
dosing, the time until the next dosing process (e.g.
11 seconds) is displayed.
Fig. 30 Dosing timer cycle
7.4.6 Dosing timer week
In this operation mode, up to 16 dosing
procedures are defined for a week. These
dosing procedures may take place regularly on one
or several week days. The setting range for the
batch volume corresponds to the values in section
7.4.4
Batch (pulse-based)
.

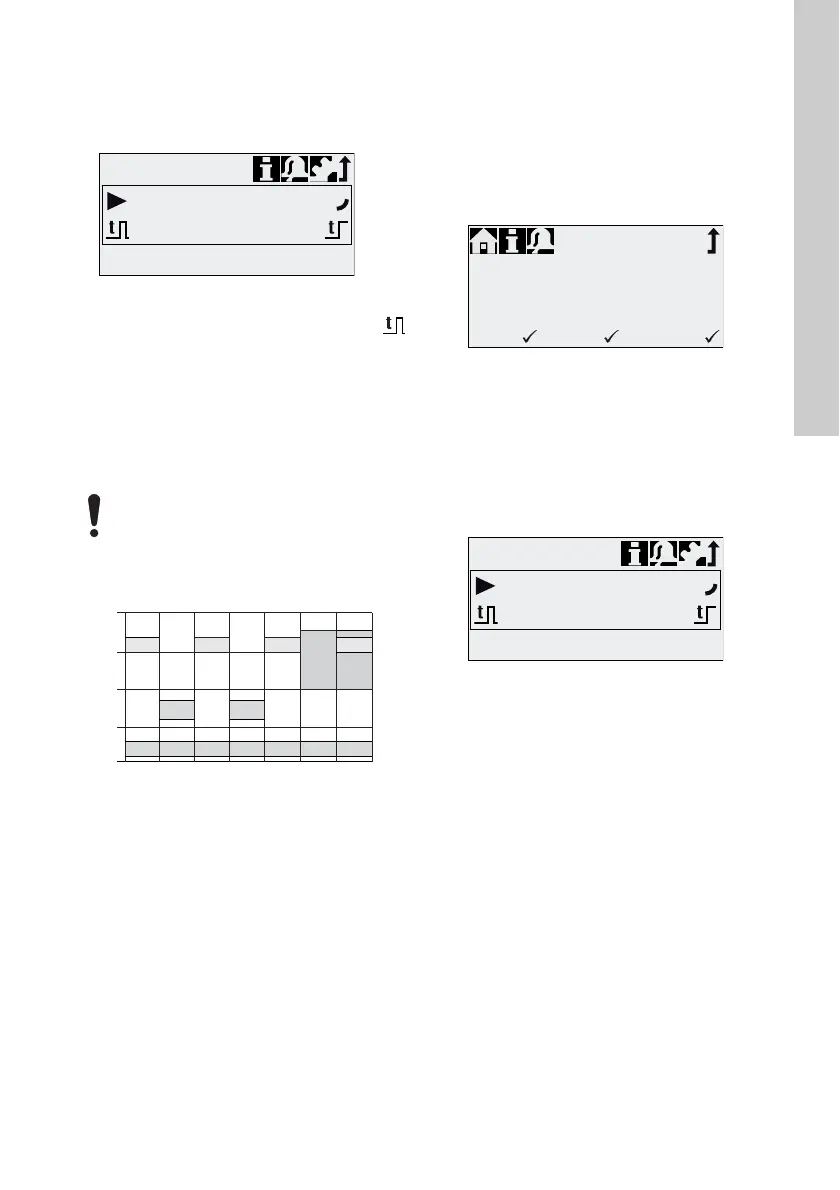

Fig. 31 Example for Dosing timer week function
If several procedures overlap, the process with the
higher dosing flow has priority.
In the event of an interruption (e.g. disconnection of
the mains voltage, External stop), the dosing is
stopped while the time continues running. After
suspending the interruption, the pump continues to
dose according to the actual timeline position.
The following settings are required in the "Setup >
Dosing timer week" menu for each dosing procedure:
Fig. 32 Setting the timer
The batch volume (e.g. 986 ml) is set in the "Setup >
Dosing timer week" menu. The dosing time required
for this (e.g. 1 minute, 0 seconds) is displayed and
can be changed.
In the "Operation" menu, the total batch volume (e.g.
986 ml) and the remaining batch volume to be dosed
is displayed. During breaks in dosing, the time (e.g.
1 day, 2 hours) until the next dosing is displayed.
Fig. 33 Weekly timer dosing (break in dosing)
TM06 7091 2916
When time or date is changed in
"Time+date" menu, timer dosing and timer
relay output functions (Relay 2) are
stopped!
Timer dosing and timer relay output
functions must be restarted manually!
Changing time or date can cause increase
or decrease in concentration!
TM06 7092 2916
TM06 7093 2916TM06 7091 2916
Timer
Procedure
Batch volume
Dosing time[mm:ss]
Start time[hh:mm]
1
986ml
1:00
05:00
M ❑T TW ❑F ❑S ❑S
