18
T
he Gryphon Commander comes with a set of DC cables to connect the Preamplifier to the
Power Supply.
The DC cable set consists of one DC77 and two DC4 cables.

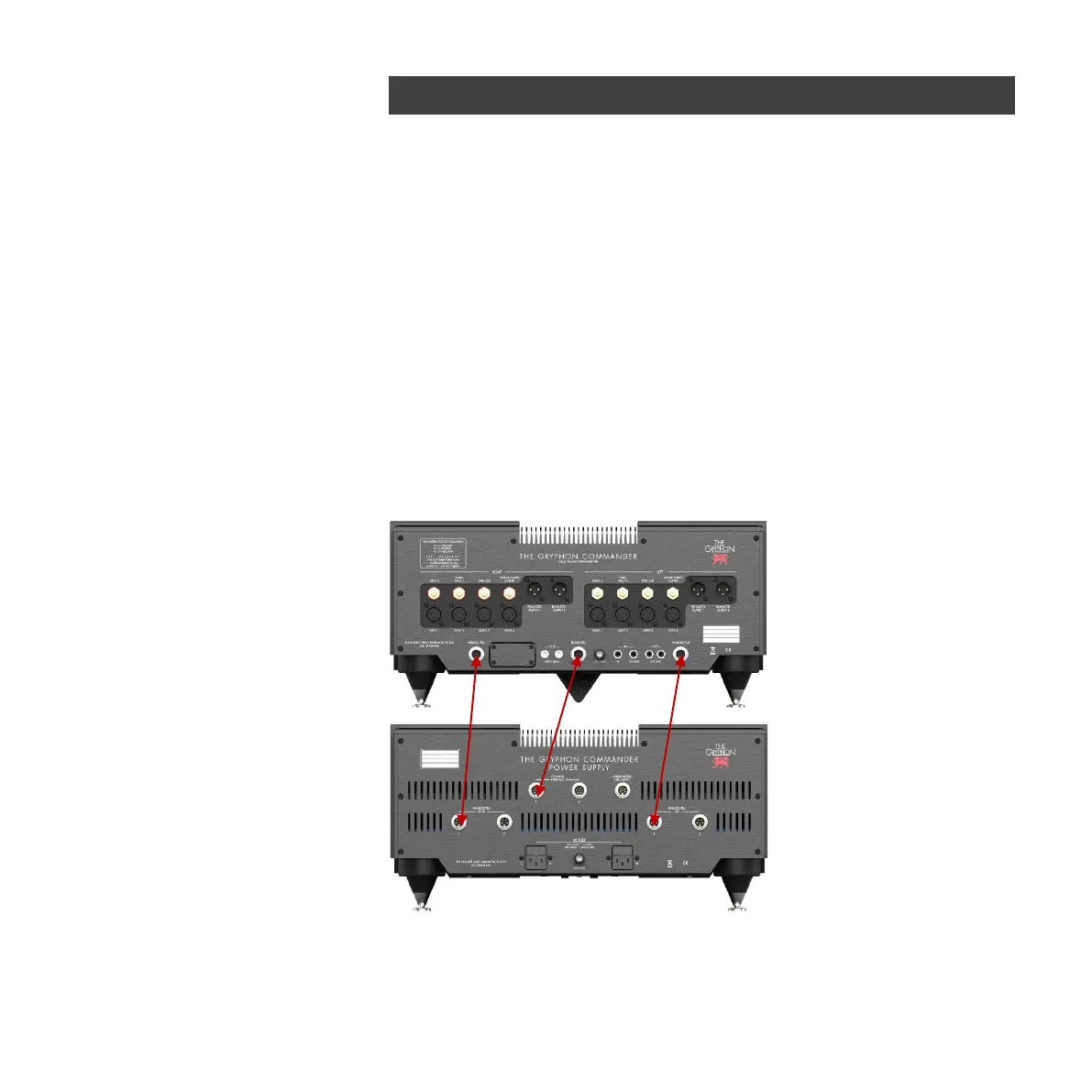

Do NOT connect the AC power cords before having connected the DC cables as shown below.
Connect the DC77 cable between “Control Interface 1” on the Power Supply to the “Digital PSU”
Connector on the Commander Preamplifier.
Connect the DC4 cables respectively - between “Analog PSU 1 Left” on the Power Supply to
the corresponding “Analog PSU” connector in left side on the Commander Preamplifier - and
between “Analog PSU 1 Right” on the Power Supply to the corresponding “Analog PSU”
connector in right side on the Commander Preamplifier.
Connect two AC power cords from mains to the two AC inlets on the Commander Power
Supply.
