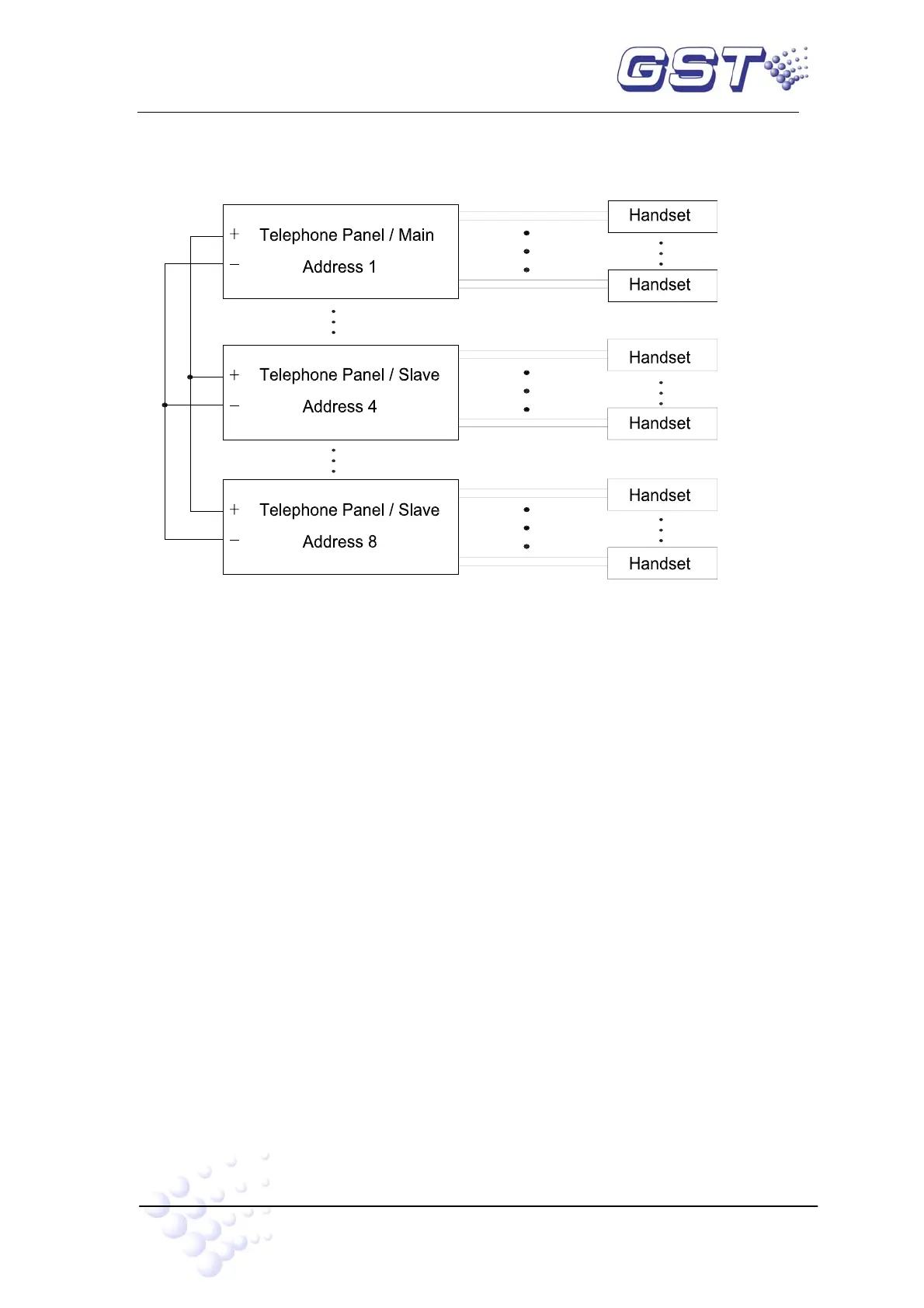

Fig. 4-2
5 Mounting & Commission
5.1 Initial Check
Check the appearance of the panel after open the box. Then power on and check working
state.
5.2 Wiring Requirement
¾ Cross-section area of the power cable not less than 1.5mm
2
¾ Twisted-pair cable connecting panel and handset with SA not less than 1.0 mm
2
¾ Twisted-pair cable for the network with SA not less than 1.0 mm
2
¾ The cable selection must comply with local code
Note: the impedance of single line not more than 20Ω
5.3 Installing dimension
Installing dimension： 482.5mm*177mm*225mm
