 ZONE INPUT (9~16): Zone 9 to 16 input terminals.
 Z9~Z16: Output terminals of repeater panel for zone 9 to 16.
 0V: Power supply negative terminal for repeater panel connection.
1.5.3 Terminals on Relay Board of RB116A
Note: The contents of italics are not covered in EN54-2/4.

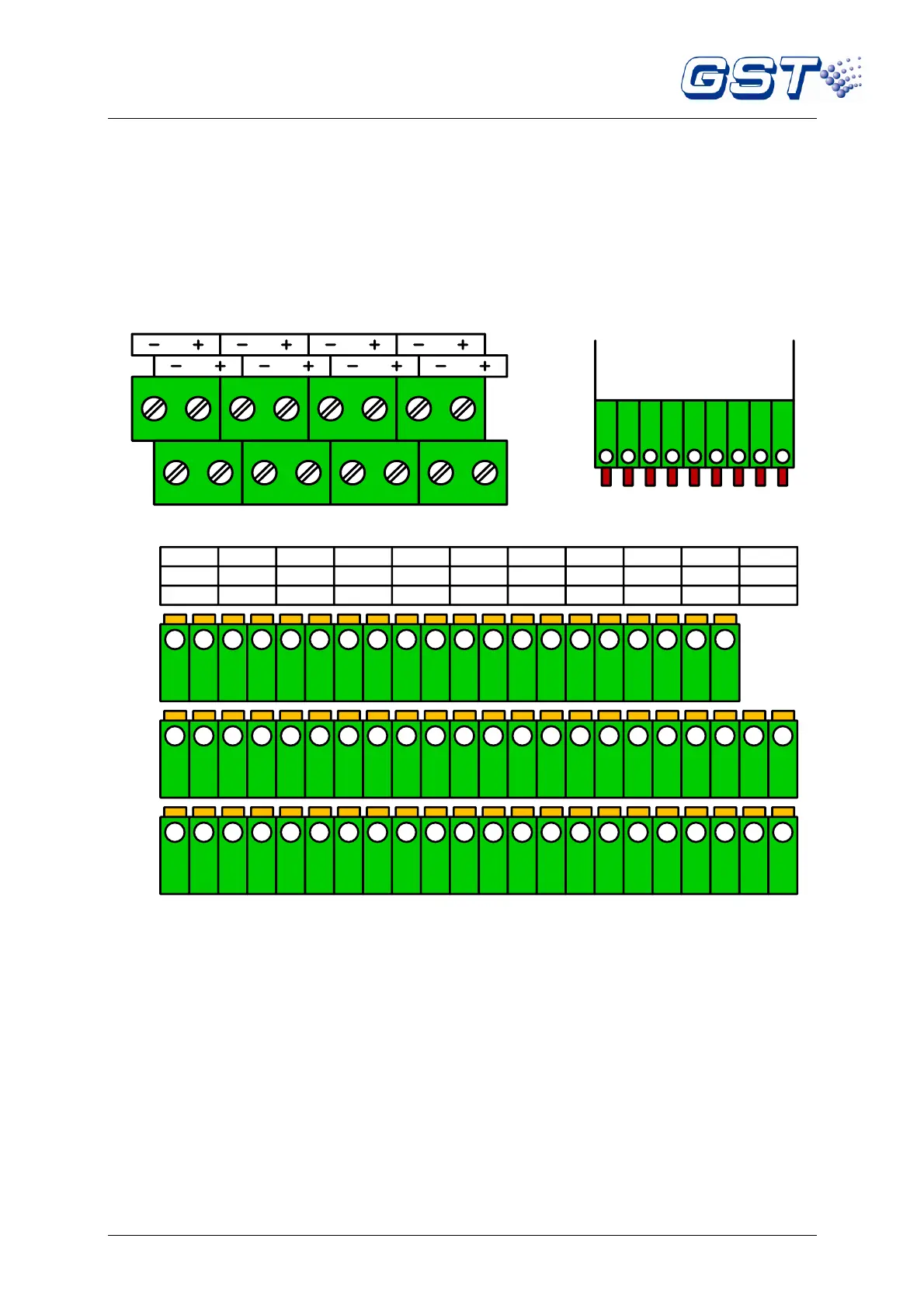

Terminals on relay board of RB116 are shown in Fig. 1-7 and Fig. 1-8.
REPEATER OUTPUT
Z11
Z10
Z9
Z12
Z13
Z14
Z15
Z16
0V
9
ZONE
INPUT
10
13
12
15
1614
11
Fig. 1-7
ALARM6 ALARM7
FAULT11
FAULT1
FAULT12
FAULT2
ALARM8 ALARM9
FAULT13
FAULT3
FAULT14
FAULT4
ALARM10 ALARM11
FAULT15
FAULT5
FAULT16
FAULT6
ALARM12 ALARM13
ALARM1
FAULT7
ALARM2
FAULT8
ALARM14
ALARM3
FAULT9
ALARM15 ALARM16
ALARM4
FAULT10
ALARM5
Fig. 1-8
 ZONE INPUT 9~16: Zone 9 to 16 input terminals.
 Z9~Z16: Output terminals of repeater panel for zone 9 to 16.
 0V: Power supply negative terminal for repeater panel connection.
 FAULT1~FAULT16: Fault output terminals for zone 1 to 16.
 ALARM1~ALARM16: Alarm output terminals for zone 1 to 16.
1.5.4 Terminals on Relay Board of RB108A
Terminals on relay board of RB108A are shown in Fig. 1-9. Relay board of RB104A/RB102A is
similar to RB108A with fewer terminals.
