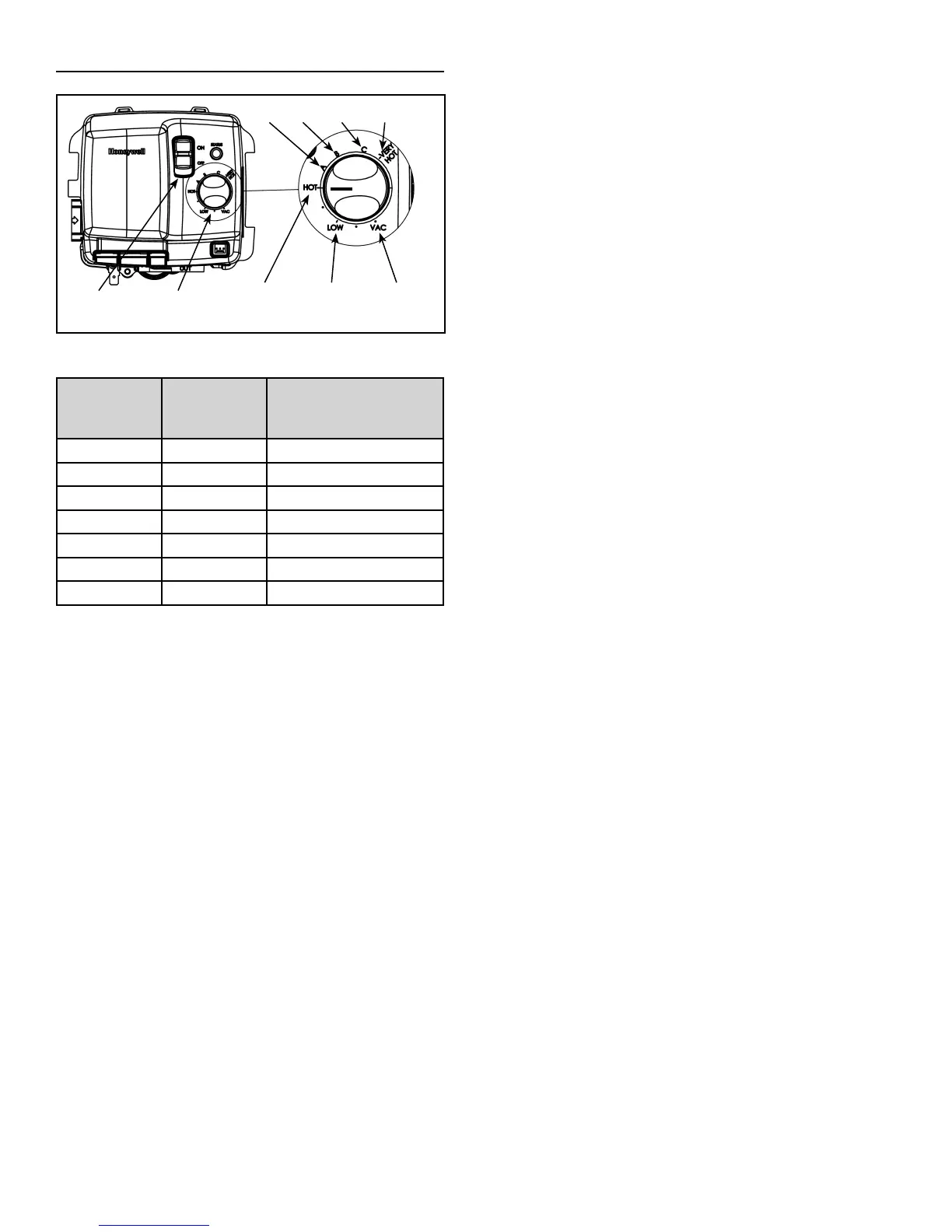

GAS CONTROL VALVE/THERMOSTAT
ON/OFF
SWITCH
TEMPERATURE
SETTING DIAL
68°C
(155°F)
21°C
(70°F)
54°C
(130°F)
60°C
(140°F)
65°C
(150°F)
49°C
(120°F)
43°C
(110°F)
Figure 39
Temperature
Dial Setting
Approximate
Temperature
°C (°F)
Time to induce a 2nd
and 3rd Degree burn
to adult skin
VERY HOT 68 (155) Less than 1 second
C 65 (150) About 1.5 seconds
B 60 (140) Less than 5 seconds
A 54 (130) More than 30 seconds
HOT 49 (120) More than 5 minutes
LOW 43 (110) Normal shower temp
VAC 21 (70) N/A
Table 4
Note: The temperatures indicated are approximate. The
actual temperature of the heated water may vary.
The Vacation Setting (VAC) sets the controller at
approximately 21°C (70°F). This setting is recommended
when the water heater is not in use for a long period of time.
This effectively turns the controller temperature setting
down to a temperature that prevents the water in the water
heater from freezing while still conserving energy.
