ZY120 6-20kVA (11) User Manual EN rev.04.doc
(a) Cables entry
(b) Wiring connection

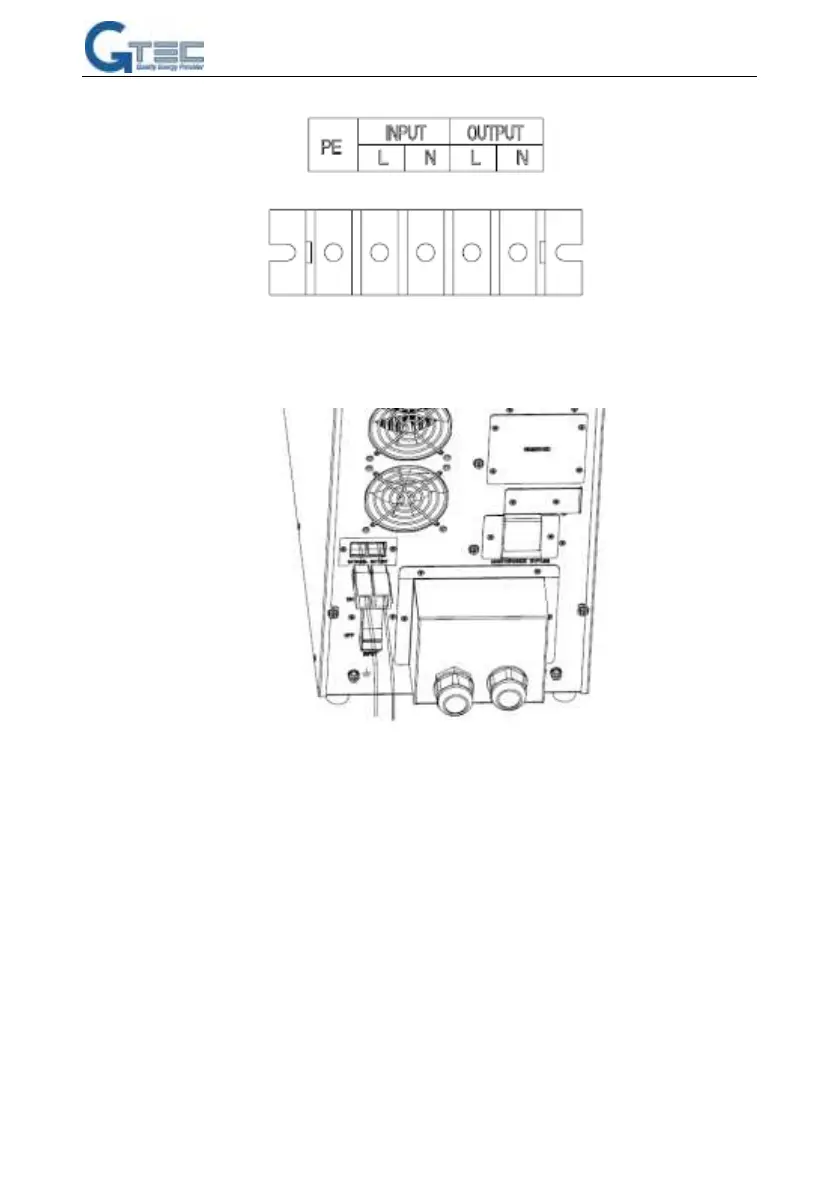

Fig 3. Input and Output Terminal Block Wiring Diagram of 6K(KS)/10K(KS)
Take out Anderson connector and make battery cables according to site’s application shown as
below:
NOTICE: make sure that the red Anderson connector be connected to battery + and the black
Anderson connector be connected to battery -, or else it may destroy UPS.
6) For 20K(KS),connect the input 3 line wires to input A/B/C separately as fig.4. Or connect
1 input wire to input C.
To Next Page
