GTO 2000XLS - Installation Overview

6 GTO 2000XLS Instruction Manual © 02.07.12
PUSH-TO-OPEN installation instructions begin on page 19.
Example of an installation on a chain link fence:
IMPORTANT: To achieve the most efficient leverage for the gate opener and ensure long trouble free
service, the gate opener needs to be installed within the following parameters.

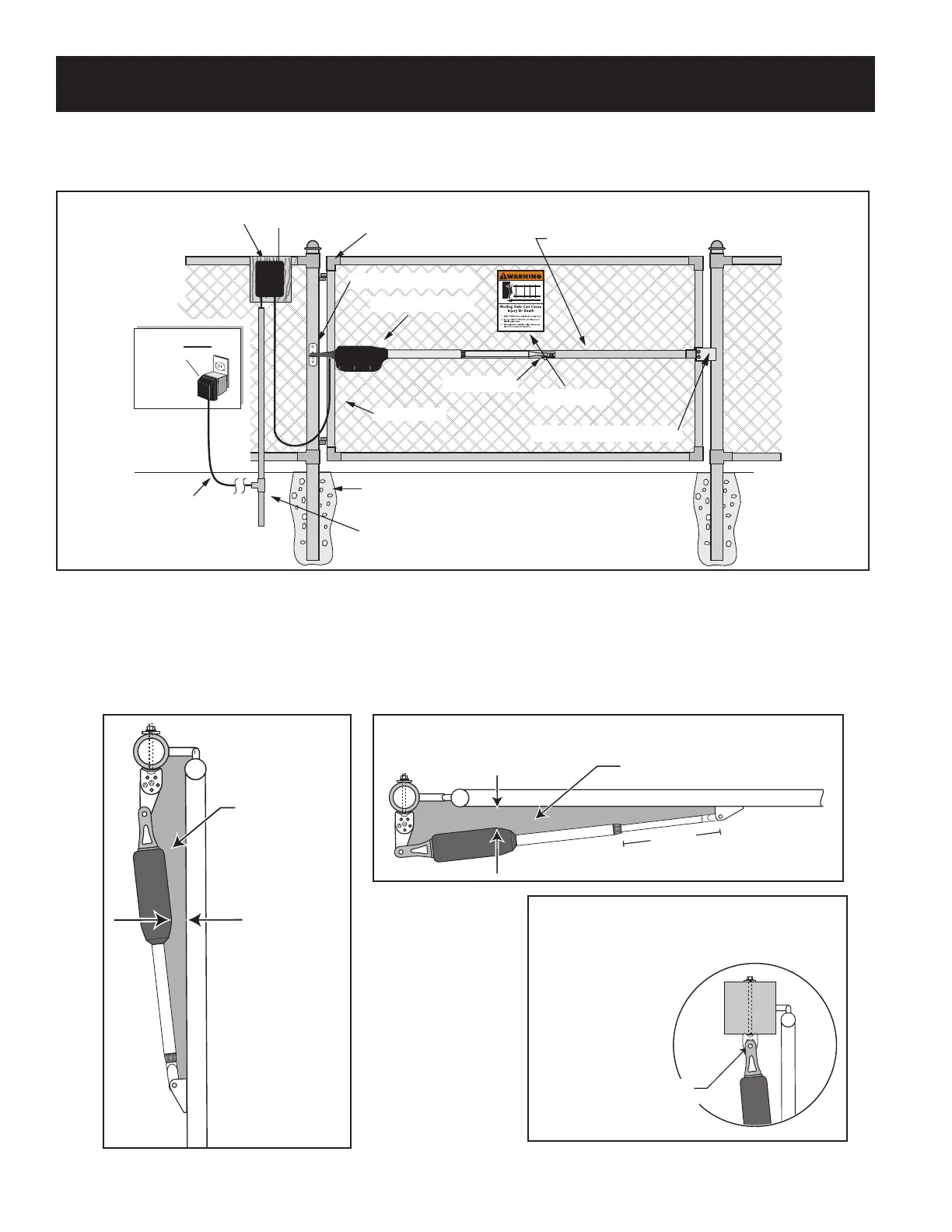

The diagrams below show the optimum positions for the gate opener arm in relation to the gate in the
open and closed positions. Be sure the position of the gate opener and brackets allows for 2" of clearance
between the gate and the opener in both the open and closed positions.
Horizontal Cross Member
Gate Swings Evenly and Freely
Hung Firmly and Plumb
Post Bracket Assembly
Control Box / Battery Box
Gate Bracket
Single Gate Opener
Fence Post Set in Concrete
Run 1000' (max.) of low
voltage wire to control
box from transformer
(wire not included).
Power Cable
Closed Position Stop Plate
120 Volt indoor
Transformer
(surge protector
not supplied)
PVC conduit (not included)
to protect wire from lawn
mowers and weed eaters.
Warning Sign
If the gate post is larger than 6" the
Post Pivot Bracket can be removed
and the center hole of
the Post Bracket
can be the
mounting point
for the gate
opener.
Center hole of
post bracket
Gate in the
CLOSED POSITION
Pinch Area
2" minimum
MAX 15"
Gate in the
OPEN POSITION
Pinch Area
2" minimum
Installation Overview for Pull-To-Open Gate
