GTO 2000XLS - Accessory Input Terminals

GTO 2000XLS Instruction Manual © 02.07.12 23

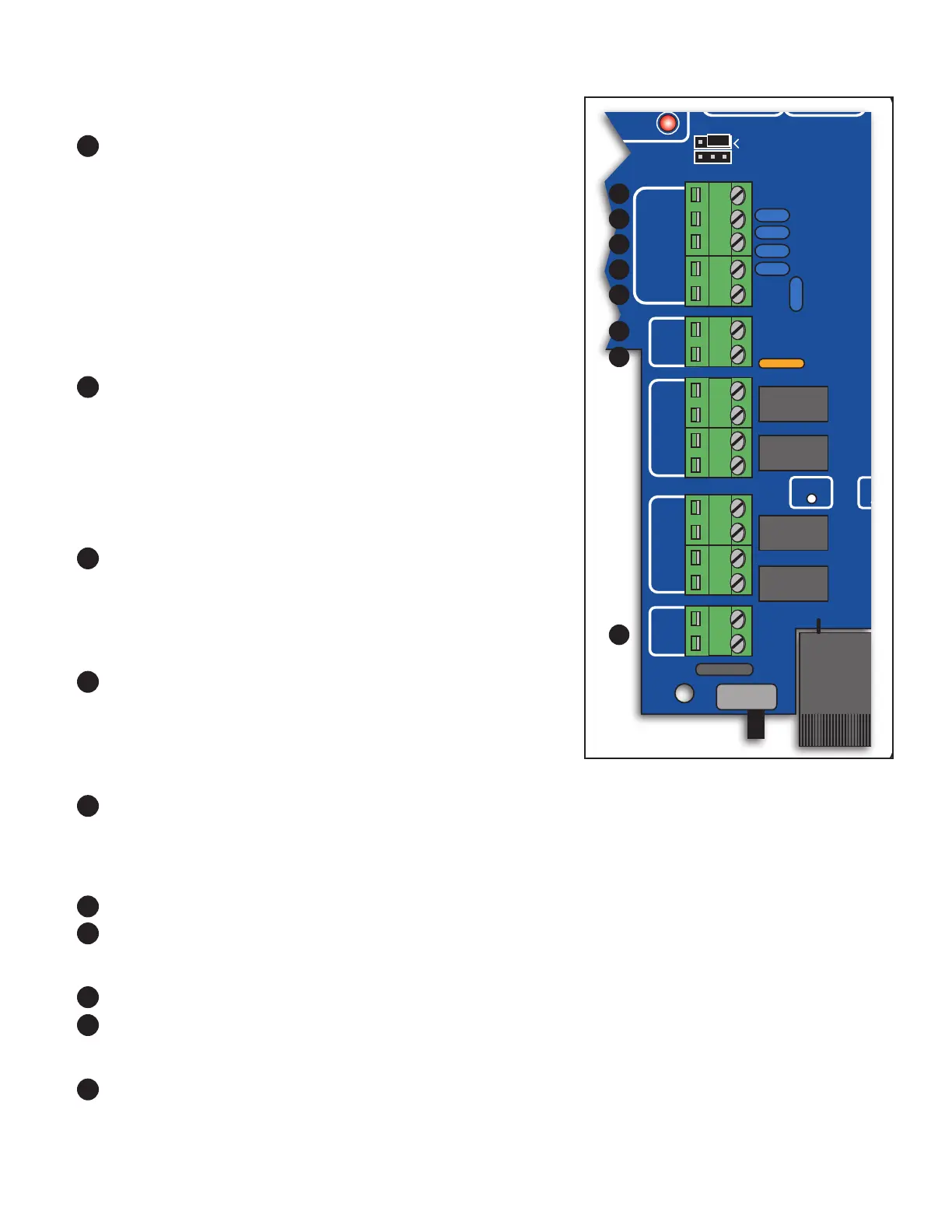

Accessory Inputs
1
SAFETY: Typically for use with photo beam device, loop
detector or other non-contact sensors
 • Activationofthisinputwhilethegateisclosingwillcause
the gate to stop and return to the opened position.
 • Activationofthisinputwhilethegateisopeninghasno
effect. (gate will continue to open)
 • Activationofthisinputwhilegateisidlewillpreventgate
from closing.
 • Activationofthisinputwhileatopenlimitwillrestartthe
auto close time (if enabled).
2
EXIT: Typically for use with exit loop or wand
 • Activationofthisinputwillopenthegateifit’snotalready
at the open position.
 • Activationofthisinputwhileatopenlimitwillrestartthe
auto close time (if enabled).
 • Activationofthisinputwhilegateisopenwillpreventgate
from closing.
3
CYCLE: Typically for use with doorbell button or hardwired
keypad
 • Eachactivationatthisinputwillcycletheoperationas
follows:
…→ OPEN → STOP → CLOSE → STOP → OPEN → …
4
EDGE SENSOR: Typically for use with contact edge sensor
 • Activationofthisinputwhilegateismovingwillcauseitto
reverse direction for 2 seconds.
 • Activationofthisinputwhileidlewillpreventgatefrom
running.
5
COMMMON: Common/Negative terminal for accessory devices.
12 Volt Power (Maximum Current: 100 mA)
5
COM: Common/Negative terminal for accessory power source.
6
LOCK +: Power source for GTO/Mighty Mule accessories, i.e. Gate Opening Sensor [FM139].
Lock Outputs
6
LOCK +: Positive terminal to connect Automatic Gate Lock [FM144].
7
LOCK – : Negative terminal to connect Automatic Gate Lock.
Charge Power Inputs
8
14VAC or SOLAR: Power Input Terminals:
 • Inputterminalsfortransformerorsolarpanel.
• Non-polaritysensitive.
VAR5
VAR6
K1
PF1
K2
BATT +
BATT –
K3
K4
VAR4
VAR3
VAR2
VAR1
MIN
MAX
OFF
JP1
REMOVE JUMPER FOR
PUSH TO OPEN OPTION
120
SEC.
GTO Inc. Tallahassee, FL R4722
STALL FORCE
OPEN < JOG > CLOSE
PWR.
SET
LIMIT
1st OPR.
2nd OPR.
STATUS
AUTO CLOSE
SFTY.
EXIT
CYCLE
EDGE
SENSOR
COMMON
LOCK+
LOCK–
WHT
GRN
RED
BLK
WHT
GRN
SECOND OPR.FIRST OPR.
RED
BLK
14 VAC
OR
SOLAR
ON OFF
1
8
7
6
5
4
3
2
