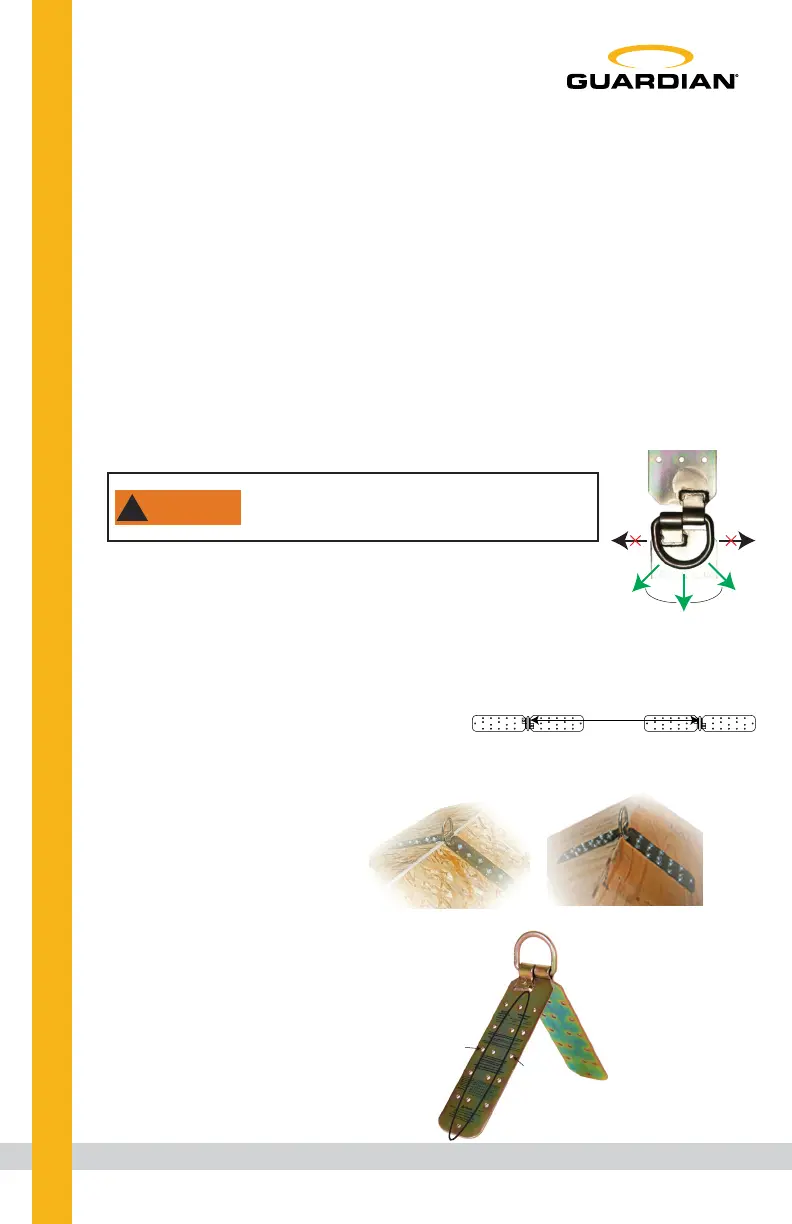

Installation and Use
4
MINIMUM substrate thickness requirements:
• Wood: 3/4” (total combined).
• Metal: 20g.
• Concrete: 4” thick and 4,000 PSI.
1. Determine installation location for Temper Anchor; ensure location is free of debris, rot, decay, cracking, and
hazardous materials. NEVER install on substrate incapable of withstanding minimum loads required by
application.
1
2
3
4
5
6
7
8
8 Per Side:
6 in center,
1 left of center,
1 right of center.
Total: 16.
!
WARNING
NEVER load anchor improperly. Prior to installation, refer to
anchorage positioning chart (pg. 3) to ensure installation
location will satisfy intended work application(s).
NONO
OK
Ø Ø
Compatible roof pitch:
• Installed over roof peak: 0/12 - 12/12.
• Installed on flat surface: 0/12 - vertical/sheer.
Never install past sheer (such as on underside of
beam or slab).
Substrate fastener requirements:
• Wood: 16d nails, or #12, 2” wood deck screws.
• Metal: #12, 2” metal deck screws.
• Concrete: ¼” x 2¾” concrete screws.
2. Make considerations for eliminating or minimizing swing fall hazards.
3. Ensure all fasteners are those supplied by Guardian Fall Protection,
or are deemed compatible and equivalent by a Competent Person.
4. Temper Anchor MUST install flush against substrate. All fasteners MUST be fully embedded in substrate.
Install in accordance with appropriate substrate detail.
5. Temper Anchor may be used in combination with a
horizontal lifeline (HLL) system, but only if HLL is installed
in parallel with long end of anchor plate. All set-up,
installation, and use of HLLs must be done under the
supervision of a Qualified Person.
Wood install:
- Into truss or support beam.
Use (12) fasteners (6 per side)
in center column of fastener
installation holes.
- Into field (not positioned over
truss or support beam). Use (32)
fasteners in all fastener
installation holes.
Metal install:
- Use (16) fasteners (8 per side).
On each side, install in center
column of fastener installation
holes, in 1 hole left of center,
and in 1 hole right of center.
Over truss Into field
HLL parallel with long end of anchor plate
4
