7
DC Output Wiring Configurations
This section shows possible DC wiring configurations for the following charger models:
16041, 16082, and 16123.

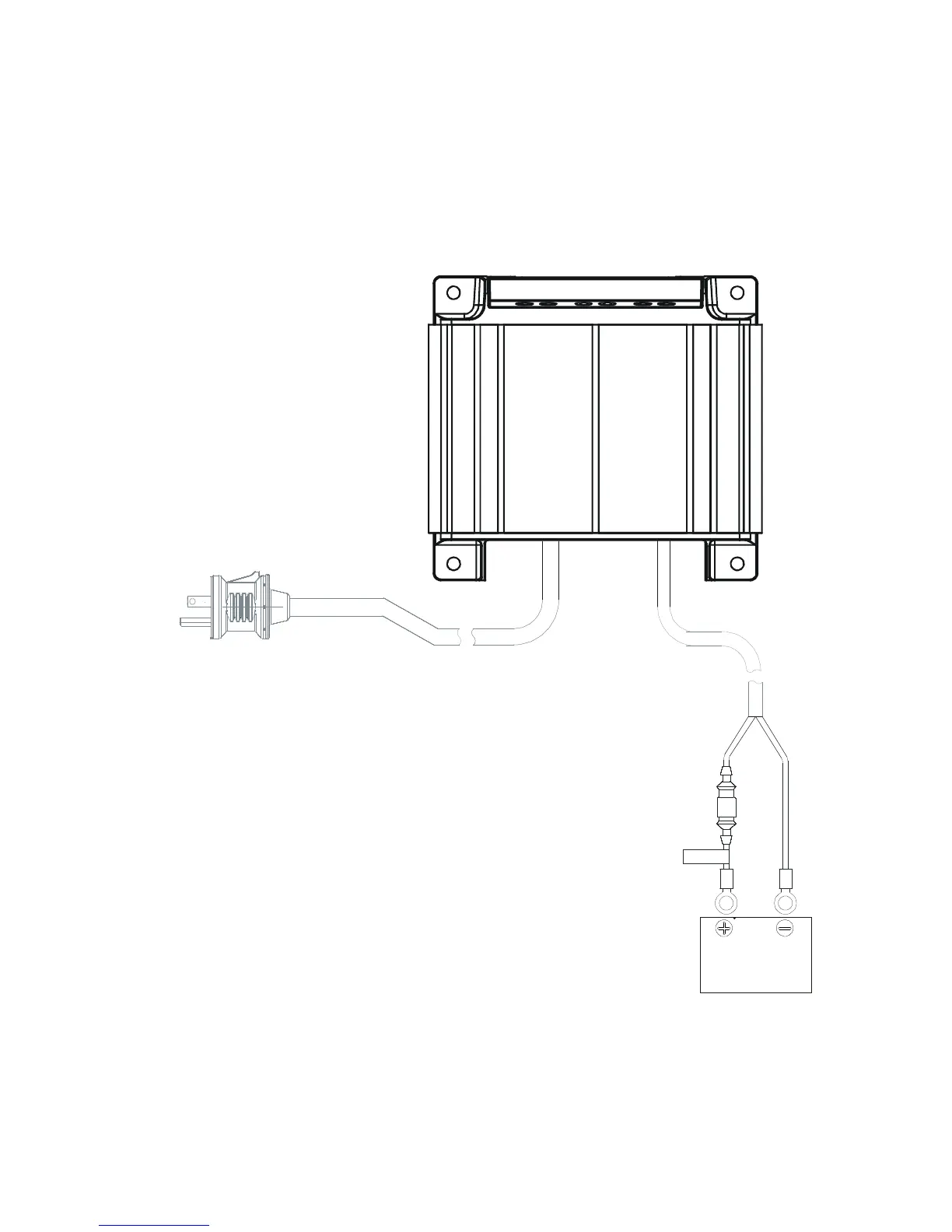

Diagram 1 – 16041 in a single Independent Output configuration
4 Amp
Output 1
Group 24
