Making AC Power Connections
After securing the battery connections, plug the AC line cord into an available AC
outlet that is protected by a Ground Fault Circuit Interrupter (GFCI) breaker. Keep the
AC power cord connection as short as possible especially when using an extension
cord.
4. OPERATING THE CHARGER

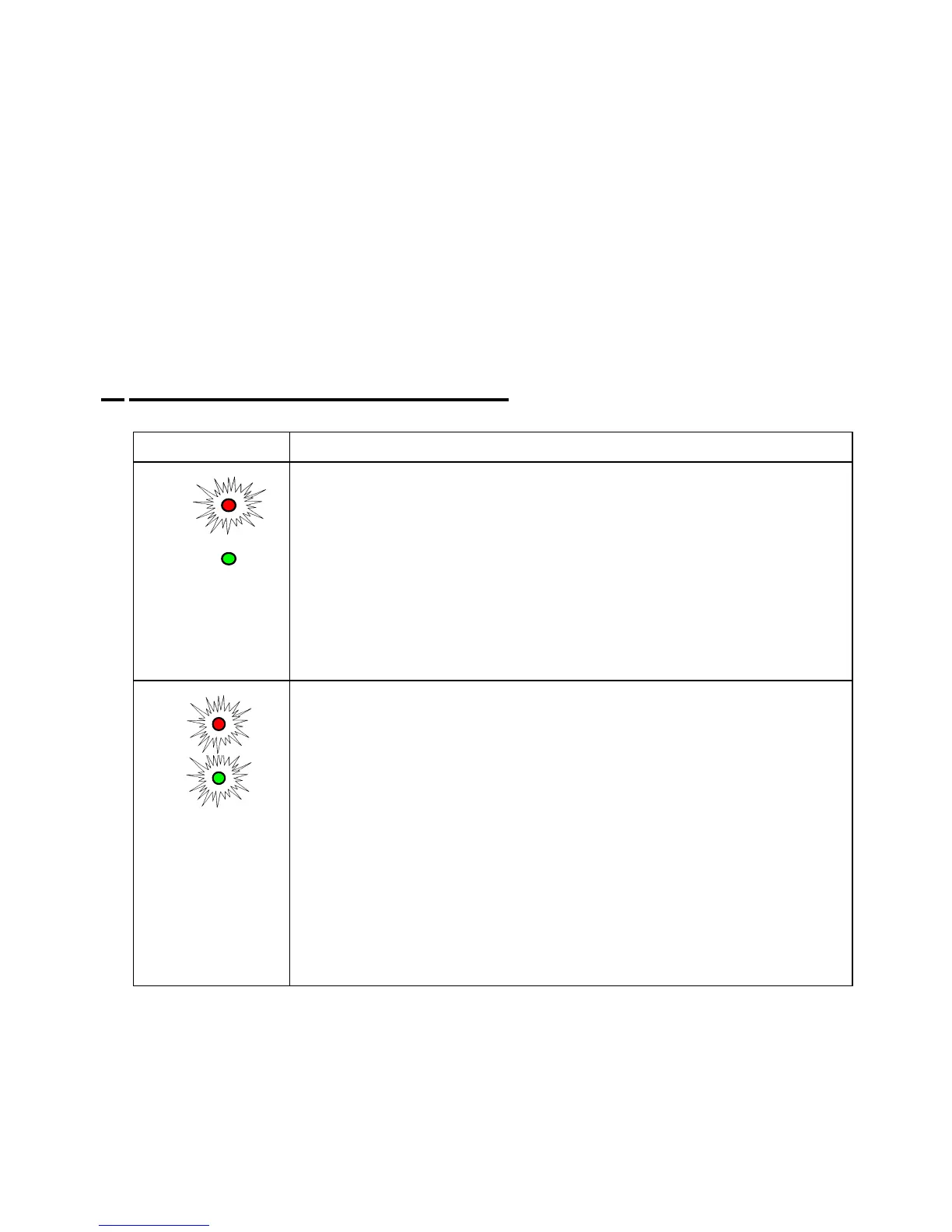

The LED Function Chart below describes the charging process.
Display Operating condition
Red
Green
When the red LED is on, it indicates that your battery is
discharged and the 2606A is recharging at the "BULK" rate
(stage 1). This charging rate is 6 Amps.
While the red LED is on, the voltage measured (with the
charger on) will be approx. 11.8 to 14 Volts.
If the red LED stays on for more than 24 hours, refer to
Problem 1 in the troubleshooting section in this manual.
Red
Green
When both the green and the red LED’s are on, the 2606A
is charging at the "FINISHING" rate. (stage 2). During this
second charging stage, the charger holds the battery
voltage at approximately 14.6 VDC, and then gradually
reduces the amount of current (Amps) it delivers to the
battery. By doing this, the battery is able to “absorb” the
last 10% of charge as quickly as possible without becoming
overheated.
If both LED’s stay on longer than 24 hours, refer to Problem
2 in the troubleshooting section in this manual.
