Guest 2815M User Manual

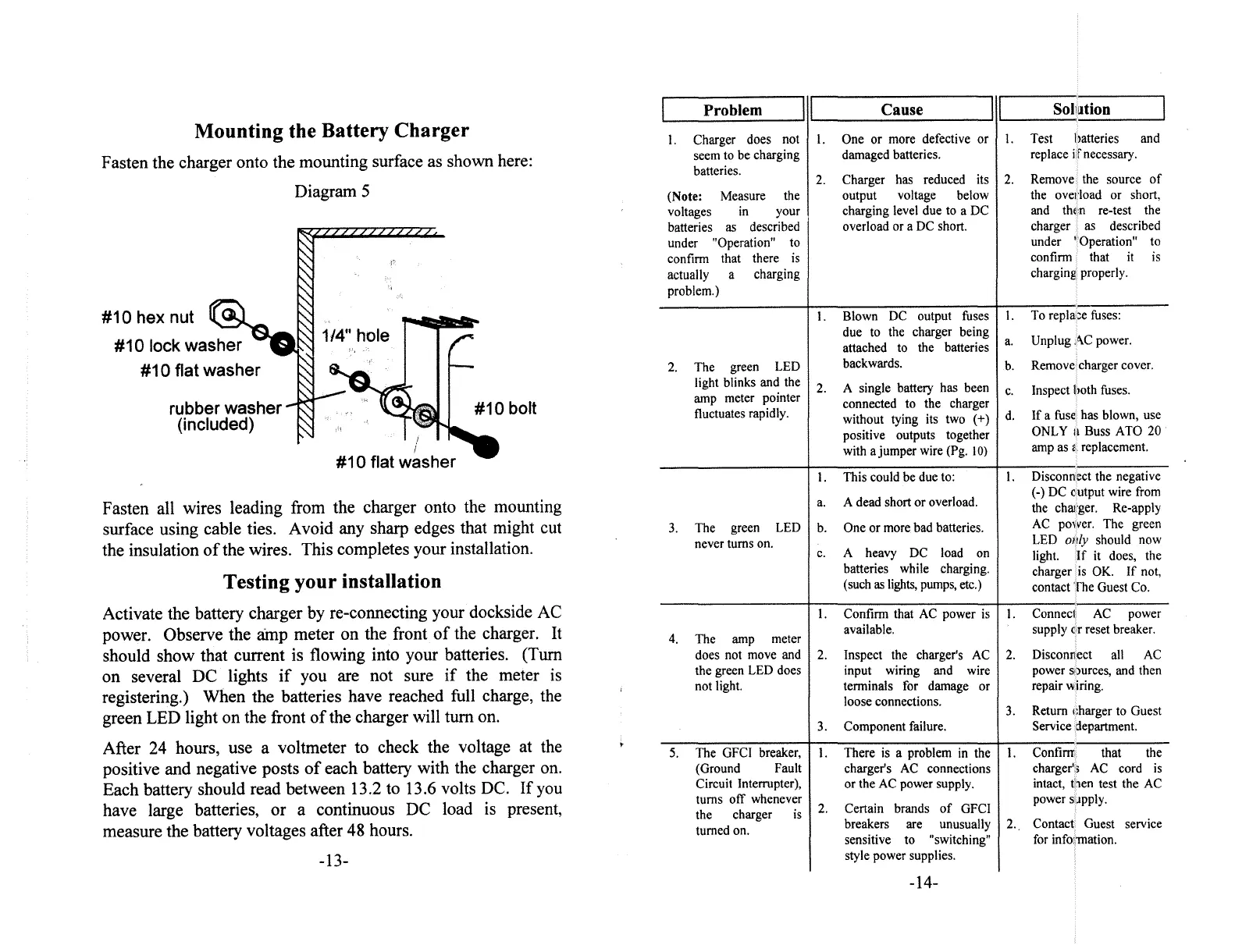

Mounting the BatteryCharger
Fasten the charger onto the mounting surface as shown here:
Diagram 5
#10 hex nut
#10 lock washer
#10 flat washer
rubber washer bolt
(included)
Fasten all wires leading from the charger onto the mounting
surface using cable ties. Avoid any sharp edges that might cut
the insulation of the wires. This completes your installation.
Testing your installation
Activate the battery charger by re-connecting your dockside AC
power. Observe the amp meter on the front of the charger. It
should show that current is flowing into your batteries. (Turn
on several DC lights if you are not sure if the meter is
registering.) When the batteries have reached full charge, the
green LED light on the front of the charger will turn on.
After 24 hours, use a voltmeter to check the voltage at the
positive and negative posts of each battery with the charger on.
Each battery should read between 13.2 to 13.6 volts DC. If you
have large batteries, or a continuous DC load is present,
measure the battery voltages after 48 hours.
-13-
#10 flat washer
r Problem
I Cause I
I Sol~tion I
1. Charger does not
seem to be charging
batteries.
(Note: Measure the
voltages in your
batteries as described
under “Operation” to
confirm that there is
actually a charging
problem.)
1. One or more defective or
damaged batteries,
2. Charger has reduced its
output voltage below
charging level due to a DC
overload or a DC short.
1. Test batteries and
replace i necessary.
2. Remove the source of
the overload or short,
and th~n re-test the
charger as described
under ‘Operation” to
confirm that it is
charging properly.
2. The green LED
light blinks and the
amp me er porn er
fluctuates rapidly.
1. Blown DC output fuses
due to the charger being
attached to the batteries
backwards.
2. A single battery has been
connected to the charger
without tying its two (+)
positive outputs together
with a jumper wire (Pg. 10)
I. To repla~e fuses:
a. Unplug AC power.
b. Remove charger cover.
c. Inspect both fuses.
d. If a fuse has blown, use
ONLY u Buss ATO 20
amp as ~. replacement.
3. The green LED
never turns on.
I. This could be due to:
a. A dead short or overload,
b. One or more bad batteries.
c. A heavy DC load on
batteries while charging.
(such as lights, pumps, etc.)
1. Disconnect the negative
(-) DC cutput wire from
the charger. Re-apply
AC po’.ver. The green
LED only should now
light. If it does, the
charger is OK. If not,
contact The Guest Co.
4. The amp meter
does not move and
the green LED does
not light,
~
I. Confirm that AC power is
available,
2. Inspect the charger’s AC
input wiring and wire
terminals for damage or
loose connections.
3. Component failure.
1. Connect AC power
supply cr reset breaker,
2. Disconnect all AC
power s)urces, and then
repair wiring.
3. Return i:harger to Guest
Service department.
5. The GFCI breaker, 1.
There is a problem in the I. Confirn’ that the
(Ground Fault charger’s AC connections charger’; AC cord is
Circuit Interrupter), or the AC power supply. intact, tien test the AC
turns off whenever
the char er is
turned on ~
2.
.
Certain brands of GFCI
breakers are unusually
sensitive to “switching”
style power supplies.
-14-
2.,
power sipply.
Contact Guest service
for information.
