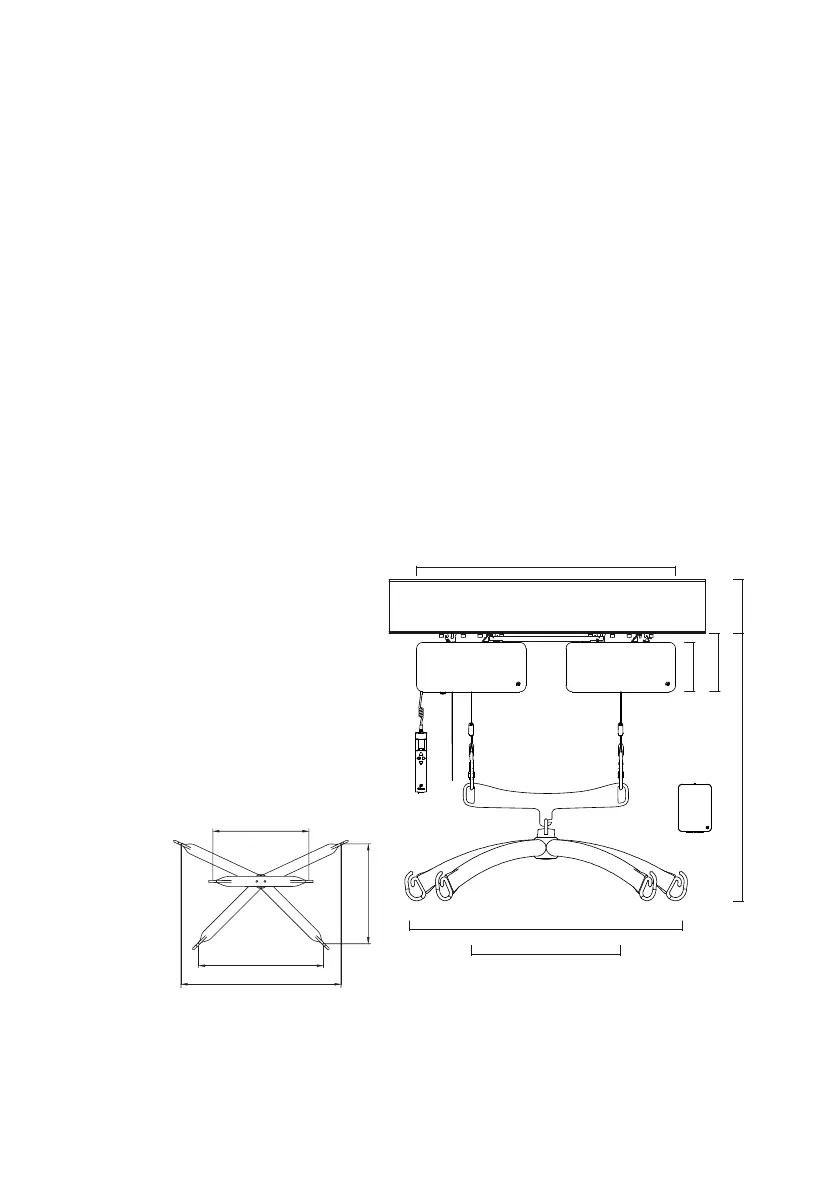

Dimensions
A ............................................1800 mm (70.9 inch)
B .............................................700 mm (27.6 inch)
C .............................................156 mm (6.1 inch)
D .............................................184 mm (7.2 inch)
E, min ..........................................194 mm (7.6 inch)
F, min .........................................630 mm (24.8 inch)
F, max .......................................3130 mm (98.4 inch)
G .............................................473 mm (18,6 inch)
I ..............................................620 mm (24.4 inch)
J .............................................790 mm (28.3 inch)
K .............................................490 mm (19.3 inch)
L .............................................473 mm (18.6 inch)
Depth of hoist ....................................205 mm (8.1 inch)
Safety
Emergency stop .............................................. Yes
Emergency lowering device ............... Yes, mechanical and electrical
Control of lifting strap .........................................Yes
Cut-off angle ......................45° along the rail 10° across the rail
