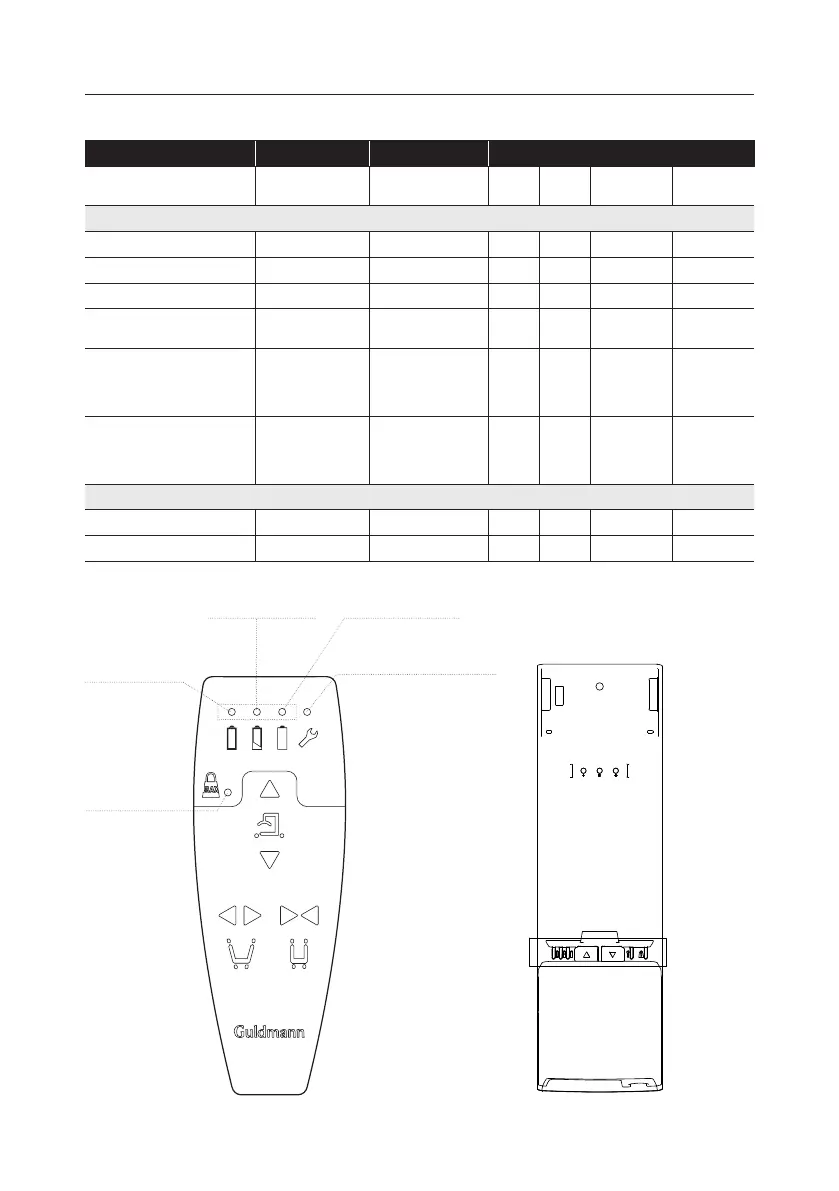

7.01 Indicator lamps and audio signals
Status Indicator lamps Audio signals Possible GL5.2 signals
Up Down Leg spread Emergency
down
Hand control
Battery charged 75-100% 3 Green lights x x x x
Battery charged 50-75% 2 Green lights x x x x
Battery charged <50% 1 Green light x x x x
Critical low battery,
two cycles left
1 Yellow light Beeps at button
activation
x x x x
Lifter service Yellow
Is lit during use
and 2 minutes
after
x x x x
Overload Yellow
Flashes 3 times
+ lights up for 10
seconds
x x
Control box
Charger Green - ashes
Charged Green
Yellow light
(overload)
One green light
(battery < 50%)
Yellow ashing
light (battery,
two cycles left,
buzzer active)
Yellow lifter service light
Two green lights
(battery 50-75%)
Three green lights
(battery 75-100%)
Control boxHand control
